AdaptaFil Semi-Automatic Benchtop
AdaptaFil Semi-Automatic Benchtop
- Recipe Recall: Allows creation, saving, and copying of over 100 recipes by name.
- HMI Touchscreen: Facilitates user interaction.
- Adjustable Batch Counting: Enhances operational flexibility.
- Advanced Fill Weight Compensation: Ensures precision in filling.
- Optional Printing & Data Transfer: Offers additional data management capabilities.
- Clean Room Design: Available for sterile environments.
- Digitally Controlled: Eliminates the need for manual adjustments.
- Tool-less Changeover: Simplifies maintenance and operation.
- Power Requirement: 110 V.
- Construction: Stainless Steel Cabinet for durability.
- Quick Clean-Up: Facilitates easy maintenance.
- Fill Accuracy: ± 0.5% for precise filling operations.
- Modular Design: Built-in expansion capability for future upgrades.
- Peristaltic Pump: Up to 1.16 gallons/min (4.37 liters/min) for free-flowing products.
- Gear Pump: Up to 3.5 gallons/min (13.25 liters/min) suitable for free-flowing, semi-viscous, viscous, and medium particulates.
- Lobe Pump: Up to 4 gallons/min (15.14 liters/min) for free-flowing, semi-viscous, viscous, and large particulates.
- Piston Pump: 0.3 mL to 260 mL per stroke, 50 strokes/min for free-flowing, semi-viscous, viscous, and small particulates.
Catalog excerpts

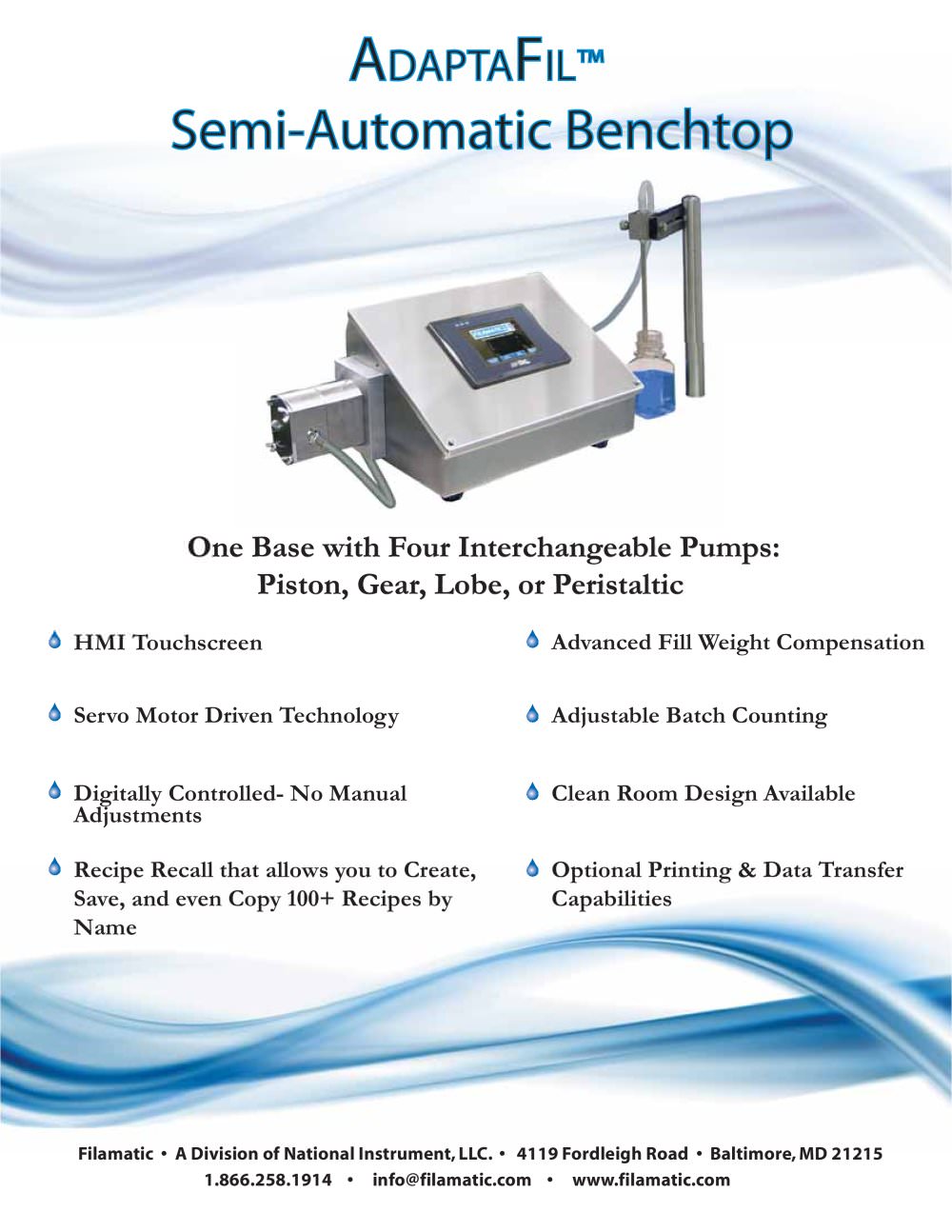

ADAPTAFIL™ Semi-Automatic Benchtop Filamatic • A Division of National Instrument, LLC. • 4119 Fordleigh Road • Baltimore, MD 21215 1.866.258.1914 • [email protected] • www.filamatic.com One Base with Four Interchangeable Pumps: Piston, Gear, Lobe, or Peristaltic Servo Motor Driven Technology Recipe Recall that allows you to Create, Save, and even Copy 100+ Recipes by Name HMI Touchscreen Adjustable Batch Counting Advanced Fill Weight Compensation Optional Printing & Data Transfer Capabilities Digitally Controlled- No Manual Clean Room Design Available Adjustments
Open the catalog to page 1
ADAPTAFIL™ Specifications Filamatic offers COMPLIMENTARY product testing and will provide support before, during, and after the sale of your Benchtop. For more information call 866.258.1914 or email [email protected]. Additional ADAPTAFIL™ Features: Tool-less Changeover 110 V Power Stainless Steel Cabinet Quick Clean-Up Fill Accuracy ± 0.5% Modular Design with Built-In Expansion Capability Metering Systems Fill Volume Range/Rates Product Descrip..on Peristal..c Up to 1.16 gallons/min 4.37 liters/min Free Flowing Gear Up to 3.5 gallons/min 13.25 liters/min Free Flowing Semi-Viscous Viscous Medium...
