HMI Fiessler Textdisplay Appliance_description

Product catalog summary

Appliance Description: The Fiessler Elektronik Human Machine Interfaces (HMI) integrate PLC functionality in ladder programming mode, featuring two serial interfaces and support for up to 65,535 windows per project. They include an integrated RTC for task management and are compatible with FPSC and AKAS systems. The product range includes text and touch screen designs, supporting multiple languages.

System Description and Application Areas: Fiessler HMIs are designed for diagnosing intelligent controller units like FPSC and AKAS. They offer ergonomic operating concepts and standard controlling tasks through integrated PLC functionality. Application areas include machine construction, wood machining, systems engineering, and special machine construction.

Programming Software - Fiessler HMI Studio: This user-friendly software configures and programs display models, managing PLC drivers, memory areas, and window design. It supports multiple languages and complex applications through ladder programming.

Product Specifications:

FE-HMI 201: A compact alphanumeric text display with a 16x2 resolution, keypad input, and 512 kB total memory. It supports ladder programming and real-time alarms.
FE-HMI 401: A 4.1" touch screen display with 192x64 resolution, touch screen input, and 512 kB total memory. It supports graphical objects and real-time alarms.
FE-HMI 601: A 5.7" monochrome touch screen with 320x240 resolution, 4 MB total memory, and extensive alarm management capabilities.
FE-HMI 605: Similar to the 601 but with a 256-color display.
FE-HMI 1205: A high-end 12.1" color display with 800x600 resolution, 32 MB memory, and extensive data logging capabilities.

Order Information: Includes identifiers for various HMI units and accessories like programming cables and manuals.

Contact Information: Fiessler Elektronik, Kastellstr. 9, D 73734 Esslingen, Germany. Phone: 0711 / 91 96 97-0, Email: [email protected].

Catalog excerpts

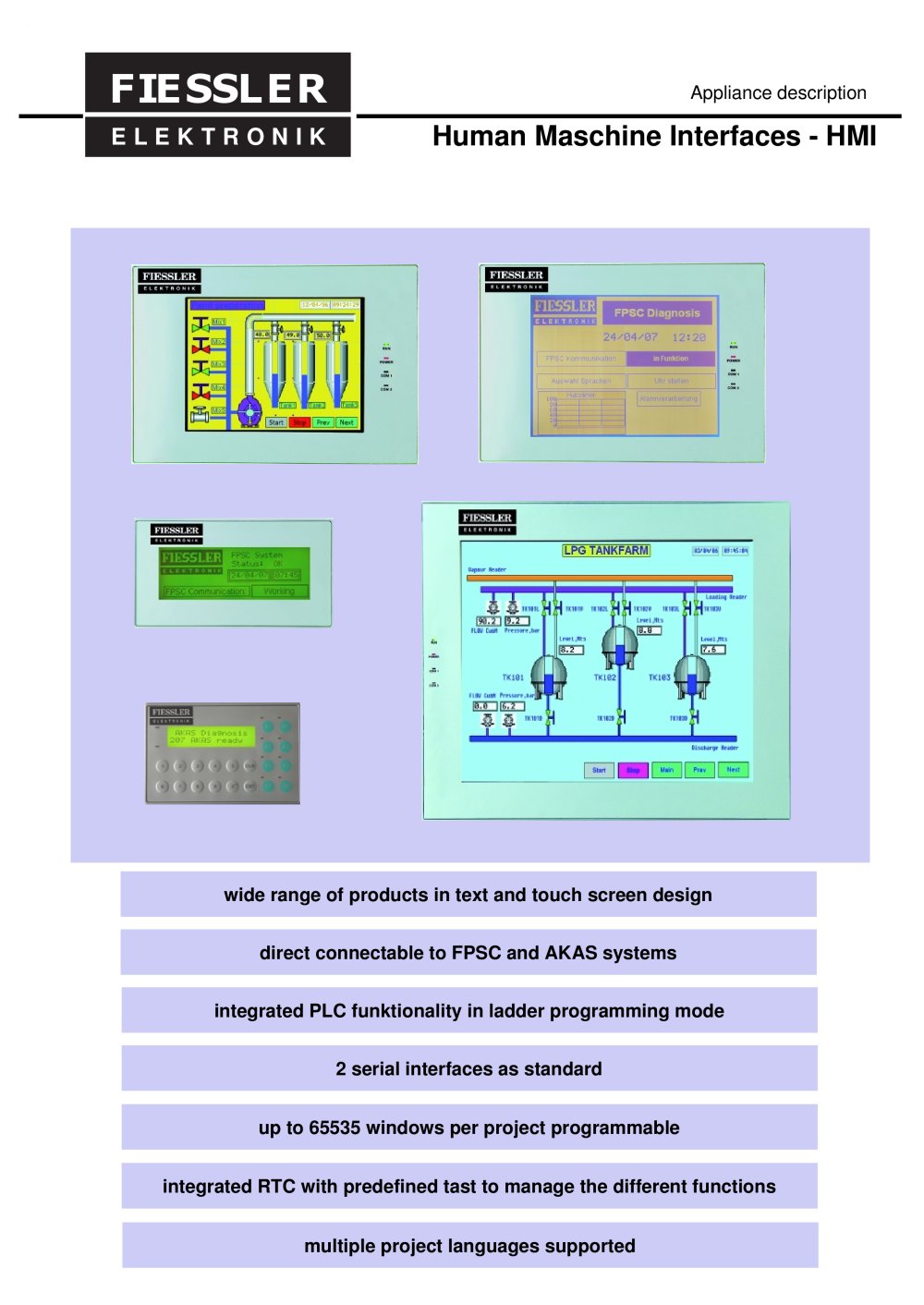

HMI Fiessler Textdisplay Appliance_description-1

wide range of products in text and touch screen design direct connectable to FPSC and AKAS systems integrated PLC funktionality in ladder programming mode 2 serial interfaces as standard up to 65535 windows per project programmable integrated RTC with predefined tast to manage the different functions multiple project languages supported >

Open the catalog to page 1

HMI Fiessler Textdisplay Appliance_description-2

ELEKTRONIK Systemdescription, Application areas The Fiessler Elektonik Human Machine Inter-faces (FE-HMI) are used for diagnosis of intel- ligent controller units like system family FPSC and AKAS. Due to their integrated intelligence it is possible to realize comfortable and ergo- nomic operating concepts. More over with the integrated PLC functionality it is possible to make standard controlling tasks. All available display models are programmed by one programming software. For this there are a lot of functions available. The user can decide whether he would like to manage the windows due to...

Open the catalog to page 2

HMI Fiessler Textdisplay Appliance_description-3

ELEKTRONIK Fiessler Elektronik HMI 201 The basic unit FE-HMI 201 is an alpha nume-rical text display with 2 lines 16 characters.Main features: o Keypad with numeric key 0-9 and 8 functionkeyo very good price / benefit ratio o open for ergonomical operating concepts o 24 V DC power supply, no special powersupply necessaryo very compact design o 2 serial interface ports as standard > Technical data FE-HMI 201 Display Function overview Resolution 16x2 (char. x lines) Ladder programming Yes Objects Alpha numerical text Bar graph Yes Display type STN Monochrom "Real" Time Alarms 256 Color Yellow-green...

Open the catalog to page 3

HMI Fiessler Textdisplay Appliance_description-4

ELEKTRONIK Fiessler Elektronik HMI 401, 4,1" With the smal touch screen display FE-HMI401 the user gets a very flexible and easy to program display with a good price / benefit ration. All control elements can be programmed with the software tool FE-HMI Studio.Main features: o integrated keypad object for data entry o industrial touch screen o integrated Real Time Clock o 24 V power supply > Technical data FE-HMI 401, 4,1" Display Function overview Resolution 192 x 64 pixels Ladder programming Yes Objects pixel graphics Bar graph Yes Display type STN Monochrom "Real" Time Alarms 256 Color Yellow-green...

Open the catalog to page 4

HMI Fiessler Textdisplay Appliance_description-5

ELEKTRONIK Fiessler Elektronik HMI 601, 5,7" The touch screen display FE-HMI 601 is theideal unit for the development of medium HMI concepts. With a size of 5,7" the display offers a lot of oppertunities to create ergonomical and good looking windows.Main features: o large memory o integrated keypad objects for data entry o industrial touch screen o real time and historical alarm management o 4 LEDs for online diagnosis > Technical data FE-HMI 601, 5,7" Display Function overview Resolution 320 x 240 pixel Ladder programming Yes Objects pixel graphics Bar graph Yes Display type STN Monochrom "Real"...

Open the catalog to page 5

HMI Fiessler Textdisplay Appliance_description-6

ELEKTRONIK Fiessler Elektronik HMI 605, 5,7" The coloured touch screen display FE-HMI601 is the ideal unit for the development of medium HMI concepts. With a size of 5,7" the display offers a lot of oppertunities to create ergonomical and good looking windows.Main features: o 256 colour display o large memory o integrated keypad objects for data entry o industrial touch screen o real time and historical alarm management > Technical Data FE-HMI 605, 5,7" Display Function overview Resolution 320 x 240 pixel Ladder programming Yes Objects pixel graphics Bar graph Yes Display type STN Colour "Real"...

Open the catalog to page 6

HMI Fiessler Textdisplay Appliance_description-7

ELEKTRONIK Fiessler Elektronik HMI 1205, 12,1" The "high-end" display FE-HMI 1205 offers theuser high flexibility, no limits in memory management and easy to program. The good ratio between benefit and price supports optimal HMI conceptsMain features: o 32 MB basical memory, expandable o 12,1" display size o a lot of predefined objects o real time and historical alarm management o industrial touch screen > Technical data FE-HMI-1205, 12,1" Display Function overview Resolution 800 x 600 pixel Ladder programming Yes Objects pixel graphics Bar graph Yes Display type TFT colour "Real" Time Alarms...

Open the catalog to page 7

HMI Fiessler Textdisplay Appliance_description-8

ELEKTRONIK Order identifier for Fiessler HMI units and accessories HMI units Alpha numerical text display, 2 lines 16 characters FE-HMI-201-S Touch Screen display, 4,1", monochrome FE-HMI-401-S Touch Screen display, 5,7", monochrome FE-HMI-601-S Touch Screen display, 5,7", 256 colours FE-HMI-605-S Touch Screen display, 12,1", 256 colours FE-HMI-1205-S Software Programming software for all Fiessler Elektronik HMI units FE-HMI-Studio Accessories RS 232 programming cable. Connection of HMI display and PC FE-HMI-Cable Additional operating manual on CD, english FE-HMI-Manual-GB > Doku Nr 1078 date...

Open the catalog to page 8

HMI Fiessler Textdisplay Appliance_description-10

Doku Nr 1078 date 17.04.2007 / FM - page 10Data without guarantee Fiessler Elektronik Kastellstr. 9D 73734 Esslingen Telefon: 0711 / 91 96 97-0Internet: http://www.fiessler.deTelefax: 0711 / 91 96 97-50eMail: [email protected] >
