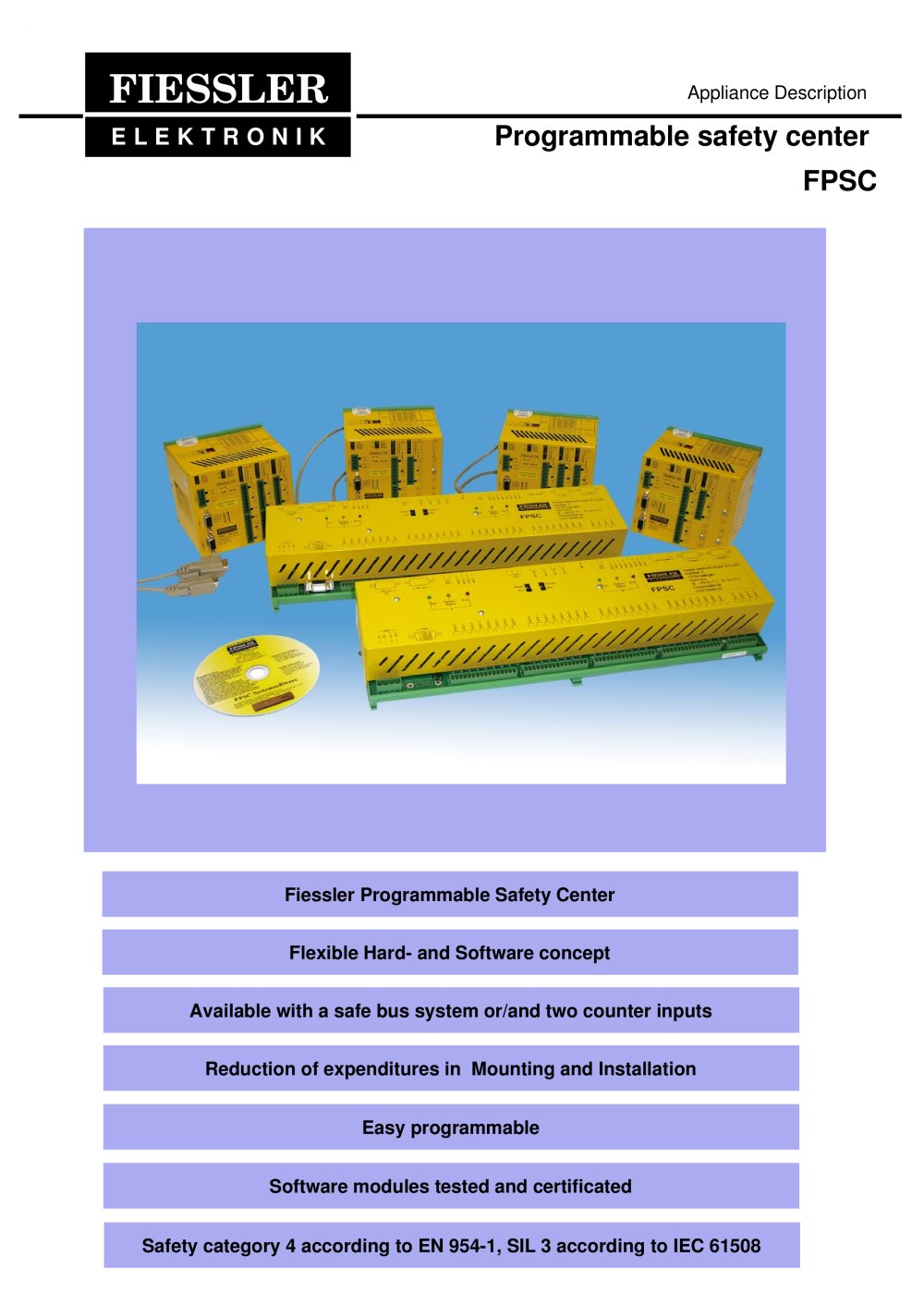

Fiessler Programmable Safety Center Flexible Hard- and Software concept Available with a safe bus system or/and two counter inputs Reduction of expenditures in Mounting and Installation Easy programmable Software modules tested and certificated Safety category 4 according to EN 954-1, SIL 3 according to IEC 61508 >

The FPSC Fiessler Programmable Safety Center is a pro-grammable electronic safety controller for personal pro- tection, i.e. for safety functions. The FPSC complies with the highest safety requirements: SK1 up to SK 4 according to EN 954-1? SIL 1 up to SIL 3 according to EN IEC 61508 ? PL a up to PL e according to prEN 13849-1The product family FPSC provides maximum flexibilitywithin its hardware and software structure. The FPSC -AD version offers the possibility to connect decentralized I/O modules via the implemented safe bus system. This guarantees a modular system design that offers...

FPSC - RS8I, decentralized input module8 safe inputs1 safe bus interface FPSC - RS16I, decentralized input module 16 safe inputs1 safe bus interface FPSC - RS24I, decentralized input module24 safe inputs 1 safe bus interface FPSC - RS4O, decentralized output module 4 safe outputs 1 safe bus interface FPSC - RS8O, decentralized output module8 safe outputs1 safe bus interface FPSC - RS12O, decentralized output module 12 safe outputs 1 safe bus interface FPSC - RS8I4O, decentralized input/ output module8 safe inputs 4 safe outputs1 safe bus interface FPSC - RS8I8O, decentralized input/ output...

Fiessler programmable Safety Center FPSC ELEKTRONIK Overview of the product family FPSC, hardware: safe decentralized modules > FPSC - RS16I4O, decentralized input/ output module16 safe inputs 4 safe outputs 1 safe bus interface Overview of the product family FPSC, hardware: non-safe decentralized signalling modules > FPSC - RM8IN, decentralized input module 8 non-safe inputs, common negative potential 1 CAN bus interface FPSC - RM8ON, decentralized output module8 non-safe outputs, common negative potential 1 CAN bus interface Doku Nr 953 Stand 17.07.2007 / FM - page 4 Fiessler Elektronik...

FPSC - PR-S, Programming softwareSoftware to program the base units S: single user licenseM: multi-user license FPSC - Diag, Diagnosis and Analyzing SoftwareSoftware for the back-analyzing of the application pro-gram and for visualizing of both inputs and outputs, for the visualization of the status of the flags and of the sy- stem status.S: single user license M: multi-user license > FPSC - RS232 cableCable between the programming unit (PC, Notebook etc.) and the base units for programming the parameters FPSC - USB / RS232 adaptorInterface converter from USB standard to RS232 for ente-ring...

safety contro l Number of safe standard inputs 32 with optional safety-related bus interface Number of safe high speed in-puts 4 Safety relevant classification up to category 4 according to EN 954-1 up to SIL 3 according to EN IEC 61508 up to PL e according to prEN 13489-1 Galvanic isolation yes Signal level at log "0 0 ... 2 V DC Signal level at log "1" 15 ... 28 V DC Input current 5 mA (bei 24 V) > Minimum impulse duration at the standard inputs 20 ms Power supply 24 V DC Status displayed via Tolerance range 19,2 ... 30,0 V DCmax. 10% residual ripple LED > Load current typ. 350 mA Number...

Field of application Enhancing of the base units FPSC-B, FPSC-AD by safety- re- lated inputs and outputs Number of safe standard inputs 8, 16, 24, according to the re-quired configuation Galvanic isolation Safety relevant classification Up to category 4 according to EN 954-1 Up to SIL 3 according to EN IEC 61508 Up to PL e according to prEN 13489-1 yes Signal level at log "0 0 ... 2 V DC Signal level at log "1" 15 ... 28 V DC Input current 5 mA (bei 24 V) > Minimum impulse duration at the standard inputs 20 ms Power supply 24 V DC Status displayed via LED Tolerance range 21,6 ... 26,4 V DC...

BLVT Module for programming the different operating modes of the FiesslerElektronik BLVT safety light curtains product series AKAS 1 and 2 Module for the evaluation of data of the AKAS I or AKAS II systems AKAS 3 Module for the evaluation of data of the AKAS III-M, AKAS II-M, AKAS LC-M, AKAS LC II-M Overrun traverse measurement For monitoring the overrun traverse of a press, e.g. of a press brake Muting Module for the control and evaluation of the Muting functions Valve monitoring Module for triggering and monitoring of hydraulic valves/contactors Operating mode selctor switch Safe selector...

Doku Nr 953 Stand 17.07.2007 / FM - page 10 Fiessler Elektronik Kastellstr. 9D 73734 Esslingen Telefon: 0711 / 91 96 97-0Internet: http://www.fiessler.deTelefax: 0711 / 91 96 97-50eMail: info@fiessler.de >
