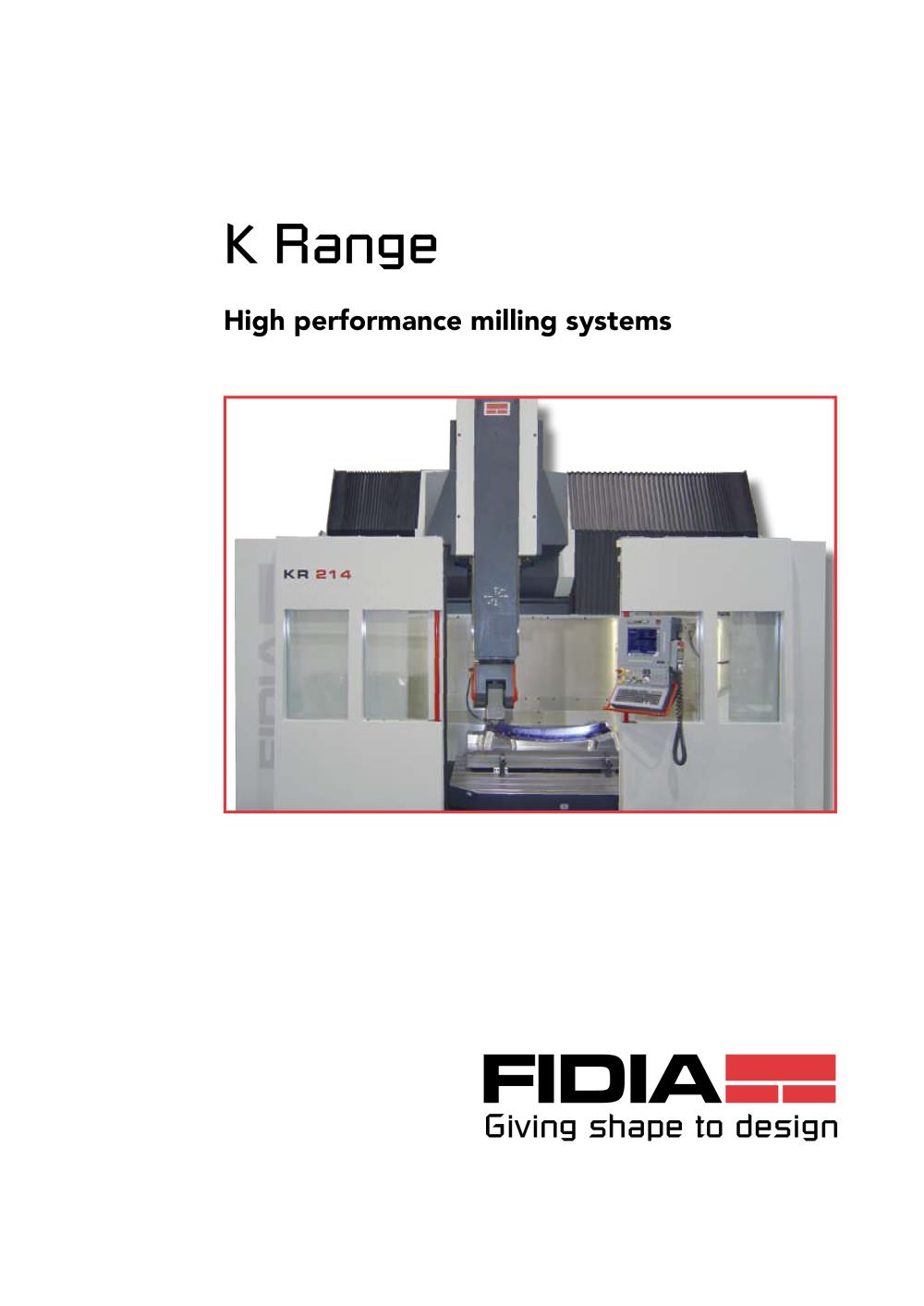

K range: K199, KRV199, K211/214/411/414, KR211/214, Y2K
20Pages

High performance milling systems Giving shape to design >

The choice of a fixed bed structure was determined by the following criteria: constancy of the forces at play independently of the weight of the workpiece, allowing for optimum milling quality; optimum visibility of the part being machined; wide range of possibilities for customization.The high bedӔ version allows for a reduction in the moving masses giving superior dynamic performance. The bed is made in cast iron, while the mobile parts of the equipment of the 3 axes are made of steel in order to obtain the best mass-rigidity ratio. The fixed cast iron worktable is suitable to grant high...

The significant reduction in thermal drift, ensuring greater accuracy during long finishing and re-machining operations, is achieved thanks to a controlled temperature circuit acting on the machines most sensitive parts. Chain magazines coming in different tool numbers are housed in the machine bed, suitably protected from swarf and coolant. Tool measurement, by means of a laser probe, is done while spindle is in rotation: length, diameter and tool shape are therefore checked under real operating conditions. Also available, measure and verification of special tools: multiple cutting areas;...

Linear axis travel X1650 + 150* mm (65+ 6Ԕ*) Y750 + 150* mm (29.5+ 6Ԕ*)Z850 mm (33.5) Linear axis speed X Y Z30 m/min (1181 ipm) Positioning accuracy X Y ZԱ 0.005 0.005 ѱ 0.004 mm ( 0.0002є 0.0002є 0.00015є) Work-piece table: Dimensions2000 x 1250 mm (79 x 49Ԕ)T-Slotsn 5 - pitch 250 mm (10Д) Loading capacity12000 kg (26455 lbs) Tool magazine No of positions24 - 42 - 60 Weight 18300 kg (40344 lbs) * Max value of the working envelope obtained rotating C axis when spindle is in vertical position. > 7 size="-1">

Linear axis travel X1650 + 150* mm (65+ 6Ԕ*) Y750 + 150* mm (29.5+ 6Ԕ*)Z850 mm (33.5) Linear axis speed X Y Z30 m/min (1181 ipm) Positioning accuracy X Y ZԱ 0.005 0.005 ѱ 0.004 mm( 0.0002є 0.0002є 0.00015є) Work-piece table: U axisrotaryroto-translating Dimensions1300 x 1300 mm (51x 51ԓ)1600 x1600 mm (63 x 63Ԕ)1600 x1600 mm (63 x 63Ԕ)V axis-1000 mm (39)T-Slotsn԰ 9 pitch 100 mm (4)n԰ 7 - pitch 200 mm (8) Loading capacity7000 kg (15432 lbs)10000 kg (22046 lbs) Tool magazine No of positions24 - 42 - 60 Weight 19000 kg (41887 lbs)22000 kg (48501 lbs) * Max value of the working envelope obtained...

Linear axis travel X2700 + 150* mm (106+ 6Ԕ*)4200 + 150* mm (165+ 6Ԕ*)Y1100 + 150* mm (43+ 6Ԕ*) Z1000/1400 mm (39/55Ԕ) Linear axis speed X Y Z24 m/min (944.8 ipm) Positioning accuracy X Y Z 0.006 ѱ 0.005 0.004 mm(ѱ 0.00025 Ա 0.0002 Ա 0.00015)Ա 0.0075 0.005 ѱ 0.004 mm(0.0003є 0.0002є 0.00015є) Work-piece table: > 32000 kg (70547 lbs) * Max value of the working envelope obtained rotating C axis when spindle is in vertical position. > 11 size="-1">

Linear axis travel X2700 + 150* mm (106+ 6Ԕ*)Y1100 + 150* mm (43+ 6Ԕ*)Z1000 mm (39)1400 mm (55Ԕ) Linear axis speed X Y Z24 m/min (944.8 ipm) Positioning accuracy X Y Z 0.006 ѱ 0.005 0.004 mm(ѱ 0.00025 Ա 0.0002 Ա 0.00015) Rotary table: U axis Dimensions2200 x 2000 mm (86.6Ԕ x 78.7) T slots28 mm pitch 200 mm (8Ԕ) Max load15000 kg (33069 lbs)Max tangential moment **30000 Nm Driving torque20000 Nm Tool magazine No of positions42 - 84 Weight 38000 kg (83774 lbs)38500 kg (84877 lbs)* Max value of the working envelope obtained rotating C axis when spindle is in vertical position. ** With clamped...

K 611 K 811 K 911 K 614 K 814 K 914 > 1100 K series, provided with X modularӔ axis, has been de-signed for the machining of narrow/long size, structural components, made of light alloy, typically requested by the aerospace sector. The rack/pinion system guarantees an excellent dynamics for the X axis, whatever the length. 200 Z = 1000 95 110а 2790 4830 530 8325 850 7025 1635 COOLANT TANK 14140 13170 8000 X = 9000 TABLE 10000 DOORS 7200 K 911 14 TABLE 1500 1000 size="-1">

Tool magazine No of positions42 - 60 - 84 - 120 Weight > 44000 kg (97003 lbs)47000 kg (103617 lbs) * Max value of the working envelope obtained rotating C axis when spindle is in vertical position. > 15 size="-1">

Linear axis travel X4200 + 150* mm (165 + 6Ԕ)6000 + 150* mm(236 + 6Ԕ)8000 + 150* mm(315 + 6Ԕ)Y2200 mm (87) Z1000/1400 mm (39Ԕ/55) Linear axis speed X 24 m/min (944.8 ipm)30 m/min (1181 ipm)30 m/min (1181 ipm)Y Z24 m/min (944.8 ipm)24 m/min (944.8 ipm) Positioning accuracy X Ա.007 mm (.00027є) .001 mm (ѱ.00004)ӱ.0013 mm (.00005ѓ)Y Z.005 ѱ.004 mm (.0002є .00015є) Work-piece table: dimensions5000 x 2200 mm (197 x 87Ԕ)7000 x 2200 mm (275.5 x 87Ԕ)9000 x 2200 mm (354 x 87Ԕ) > n 9 pitch 250 mm (10Д)loading capacity9000 kg/m > 2 (1843 lbs/ft > 2 ) Tool magazine > 2 x 42 - 2 x 84 Weight 64000 kg...

The Fidia C20 numerical control takes full advantage of the potential offered by combining the performance of the Pentium 4 and the RISC Power PC processors. It is conceived to manage the most sophisticated high speed applications running at 5 axes with RTCP. It is equipped with Windows XP Professional operating system in multitasking mode. C20 is therefore a precious partner in achieving remarkable performances from the machine. > The C20 is equipped with a 17 TFT video and thanks to its HI-MILL 3D CAM and ISOGRAPH 2ԽD CAD/CAM it directly imports CAD math- ematical models in IGES,VDA-FS,...
