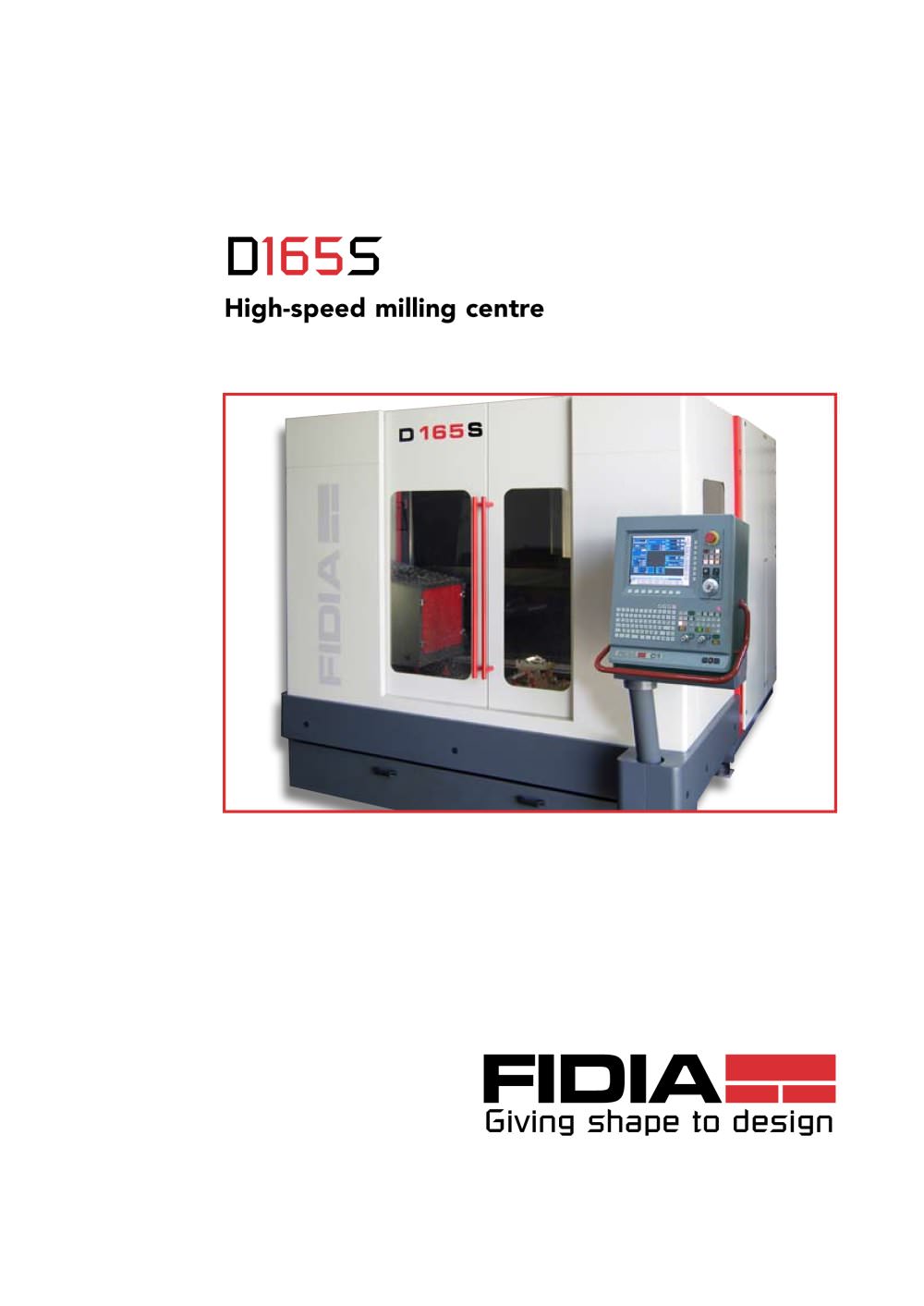

High-speed milling centre Giving shape to design >

The choice of a fixed bed structure was determined by various factors.The constancy of the forces at play, independently of the weight of the work- piece, means servo unit settings can be optimized. This structure allows for maximum visibility of the machining work, ample scope for customization and containment of overall machine tool dimen- sions. The high bedӔ solution allows for a reduction in moving masses, particularly of the X axis, and results in superior dynamic performance. The structures of the D165 provide a very favourable mass/rigidity ratio. > The linear axis guides have roller...

The axis drives use digital technology with the dual advantage of optimiza-tion of the dynamic behaviour of the machine tool and an improvement in reso- lution and machining accuracy. The linear axis transducers are the direct type in order to guarantee maxi- mum accuracy and maintain this accuracy over time. > The most suitable configuration for specific requirements can be selected from the versions available:standard 3-axis version with the electrospindle incorporated in the Z axis quill3 position swivelling headӔ version allowing for automatic spindle orien- tation on the Z-X plane at positions:...

easyto use automatictool change Tool presetting > Automatic presetting of tool length on the machine simplifies tooling proce-dures for new machining operations or when replacing worn tools. Indispensable for unmanned operation, tool presetting is available either in a digital probe version or with a focused laser probe. In addition to verifying tool length, the focused laser system checks tool di- ameter and shape. Dust suction unit > Essential when machining graphite or resins, the dust suction unit consists of a high capacity suction device. This device is equipped with selfcleaning filters....

LINEAR AXIS TRAVEL X1000 mm (39.3")Y620 mm (24.4")Z500 mm (19.6") LINEAR AXIS FEED X Y Z30 m/min (1181.1 ipm) POSITIONING ACCURACY ( > ISO 230/2) X Y Z0.01 mm (0.00039") TOOL MAGAZINE 20 - 42 positions MAIN OPTIONS Chip conveyorTool presettingGraphite dust suction unitDigitizingHorizontal axis continuous table 200 mm (187.4ؔ)Indexed roto-tilting table 182 mm (71.6ؔ)Continuous roto-tilting table 200 or 350 mm (187.4ؔ or 137.8) WEIGHT 8.500 kg (18739 lbs) >

The D165 uses the Fidia C1 numerical control which takes full advan-tage of the potential offered by the combined features of the Pen- tium 4 and the Motorola RISC. The C1 has a 12.1 TFT video and uses the Windows XP Professional operating system. This gives immediate access to a large number of applications in multi-tasking mode. Also standard on each control are the HI-MILLԮ 3D CAM and the ISOGRAPH 2 D CAD/CAM, which is ideal for the graphics program- ming of tool paths. Any Fidia software option can be installed: from digitizing using K5 continuous tracers to RTCP software, or from tool presetting...
