Overview
The TRACER X5 is a versatile pipeline robot designed for thorough inspections of pipes, sewer lines, mainline drains, and other structures. It features a universal robotic camera system capable of both visual and lidar inspections. The high-definition camera with pan and tilt capabilities allows for detailed detection and visualization of defects and cracks. For advanced inspections, the crawler can be equipped with a lidar head and camera for comprehensive defect examination.

Camera Specifications
The camera system includes a Full HD CMOS sensor with a sensitivity of 0.5 Lux, 10x optical and 12x digital zoom, and auto/remote focus control. It offers a 360° tilt and 180° pan function with 12x LED illumination. The camera head is protected by a scratch-proof sapphire crystal lens and is waterproof to IP68 standards.

Tractor Specifications
The crawler tractor features a 6x6 steerable powertrain powered by two 90W electrical motors. It includes a built-in rear HD camera and offers IP68 water protection. The tractor is equipped with a tablet viewing monitor, integrated report-generating software, and a joystick control module.

Cable and Control Unit
The system includes an automatic cable reel with a 500-meter (1,640 feet) multi-core cable tether. The reel system is automatic and features a meter counter and emergency stop. The control unit includes a separate tablet for viewing and recording, with integrated software for report generation and joystick control for speed, direction, and camera functions.

Performance and Capabilities
The crawler is capable of inspecting pipes with a minimum diameter of 8 inches. It can achieve a maximum speed of 37 meters per minute and climb inclines up to 45 degrees. The camera elevator is remotely controlled and non-removable, with front and rear illumination provided by LED lights.

Catalog excerpts

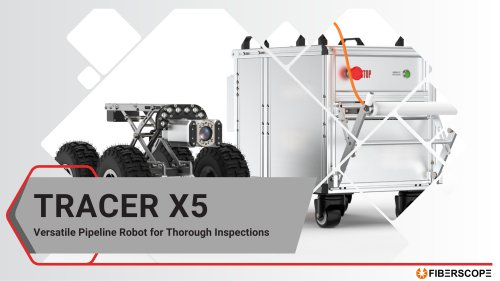

TRACER X5 Versatile Pipeline Robot for Thorough Inspections

Open the catalog to page 1

Universal robotic camera system for both visual and lidar inspections of pipes, sewer lines, mainline drains and other structures. High definition camera image along with pan and tilt feature allows the detection and visualization of the defects and cracks. For advanced inspections or pipe integrity assessments the same crawler can be coupled with a Lidar head with a camera for a complete and fine defect examination. The crawler tractor comes as a complete setup with a automatic reel and the needed components to start the inspection. www.fiberscope.net toll free 1-877-613-2210

Open the catalog to page 2

Camera Head Full HD CMOS Sensor Sensitivity: 0.5 Lux 10x Optical and 12x Digital Zoom Auto/Remote Focus Control 360°Tilt and 180° Pan Function 12x LED Illumination

Open the catalog to page 3

O 6x6 Steerable Powertrain © 2x 90W Electrical Motors O Camera Riser © Built-in rear HD Camera © IP68 Water Protection www.fiberscope.net toll free 1-877-613-2210

Open the catalog to page 4

Tractor Control/Display Unit Tablet Viewing Monitor Integrated Report Generating Software Joystick Control Module Wire Connection to Main Unit

Open the catalog to page 5

Tether TractorreelCable and Control Automatic Reel Unit 500M (1,640ft) Cable Length Multi-Core Cable Tether Automatic Reel System Meter Counter

Open the catalog to page 6

Crawler Tractor Specifications Minimal Diameter Drive Power Traction Crawler Speed Max Speed Max Climbing Incline Camera Elevator Elevator Type Elevator Control Lowering Hook Illumination Crawler Cameras Front: 8x LED/Backward: 2x LED Frontal and Rear Camera Specifications Front Camera R esolution Full HD (1920x1080) Front Camera Functions Pan & Tilt, 10x optical/12x digital zoom and focus function Rear Camera Resolution HD (1,280x720) www.fiberscope.net toll free 1-877-613-2210

Open the catalog to page 7

Camera Cable Reel Specifications Specifications Control/Viewing Monitor Specifications Cable Length Cable Type Reinforced Multi-Core Tether Cable Reel System Meter Counter Emergency Stop Waterproof Level Camera Position Sensor Yes Viewing Display Camera Internal Pressure Yes Integrated Software Sensor: Software Function Recording, Report Generation Image Sensor Protection:Scratch Proof Sapphire Crystal Crawler Control Joystick Control Box Lens Connection to Crawler Waterproof: Control Functions Rear view camera: via connection tether IP68, 0.1bar (1m in freshwater) speed, direction, elevator,...
