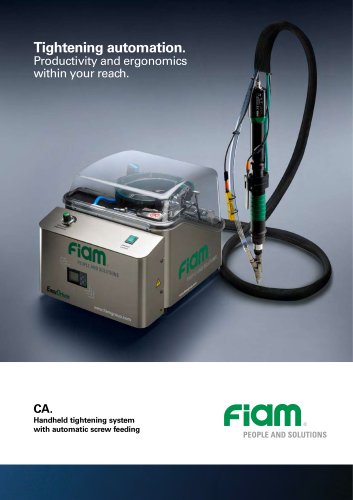

Tightening automation. Productivity and ergonomics within your reach. Handheld tightening system with automatic screw feeding

HANDHELD TIGHTENING SYSTEM WITH AUTOMATIC SCREW FEEDING To save you time and money. The time needed for tightening becomes more and more essential for increasing productivity: tightening solutions with automatic screw feeding are the correct answer for setting up workstations which strongly increase productivity, allowing a return on the investment in just a short time. This is why: The manual phases involving picking up the screw and positioning it correctly on the workpiece are eliminated They are ideal to tighten large and medium batch of equal screws They guarantee a continuous supply of...

With regard to the return on investment, here below we describe the example of one of our customers and how the tightening system with automatic screw feeding has modified their production times with tangible benefits. 2 Right insert pick-up 3 Right insert placement 5 Screw positioning on screwdriver 7 Tightening screw 1 on insert 9 Screw positioning on screwdriver 11 Tightening screw 2 on insert 12 Left insert pick-up 13 Left insert placement 15 Screw positioning on screwdriver 17 Tightening screw 3 on insert 19 Screw positioning on screwdriver 21 Tightening screw 4 on insert 22 Component placement...

HANDHELD TIGHTENING SYSTEM WITH AUTOMATIC SCREW FEEDING Together with the high productivity given by the automatic screws feeding that present directly on the tightening point, these latest generation systems allow precise, reliable and constant assembly, cycle after cycle in every production sector. Designed and built entirely by Fiam, they are: ^ available with pneumatic or electric technology ^ equipped with different levels of tightening parameters (torque / angle / time), to be chosen according to production needs ^ they monitoring assembly cycles with Poka Yoke systems ^ characterized by...

Pistol grip For vertical tightening points, is equipped with “multi-position” suspension device to facilitate the best tool balance. The systems are very quiet especially with electric automatic screwdrivers. High-precision mechanics and modularity Easy and fast clutch adjustment In pneumatic and electric eTensil automatic screwdrivers,to increase or decrease tightening torque you can adjust from the outside and therefore without intervening inside the screwdriver, through a protected access device. The careful design ensures the reduction to a minimum of the torque dispersion transmitted by...

VIBRATING BOWL Screw feeders They manage the entire working cycle with great flexibility: they manage tightening sequences quickly and easily, customizing them to the different applications. The INTEGRATED PLC or PORTABLE, governs all machine parameters according to the assembly needs. Tightening devices • Forward bit stroke (patented) • Telescopic To tighten all kinds of screws on any component geometry and with maximum speed and without effort. TELESCOPIC DEVICE Type of screwdriver They meet every need in terms of tightening accuracy. Extremely sturdy, Fiam screwdrivers guarantee constant performance...

VIBRATING BOWL SEGMENT CONVEYOR EasyDriver ED S - Silent Feeder EVEN WITH PISTOL GRIP: FORWARD BIT STROKE DEVICE CTRIC TORQUE/ANGLE BY CURRENT CONTROL TORQUE/ANGLE CONTROL BY BUILT-IN TRANSDUCER AND ENCODER CONTROL UNIT CONTROL UNIT CONTROL UNIT CONTROL UNIT

Easy screw feedersScrew feeding technology: vibrating bowl High working autonomy The vibrating bowl of models available, ensure different working autonomies and the vibrator timed system, managed by the PLC, automatically stops screw feeding when not needed thereby reducing the consumption of electricity The high selection speed allows to reach high screw feeding frequencies; the screw shooting in a closed chamber ensures a low noise level and there are no compressed air dissipations and any screw jam is eliminated The 'overload' photocell makes sure no screws get jammed in the selection duct...

ED S screw feeders - Silent Feeder Screw feeding technology: via segment conveyor High working autonomy The tank capacity of about 2 liters guarantees high working autonomy. Inside the tank there is an integrated sensor that activates a visual signal on the portable PLC screen of the feeder, which will start flashing when the screws are to be loaded. No jamming When activated, the “too full” photocell blocks the tilting blade, interrupting the loading of the screws. Maximum silence The screw is fed by the movement of a segment conveyor inside the tank that aligns the screws and sends them towards...

Feeds screws optimally without jams. Vibrating bowl: Circular, 240 mm in 0 Screws: For screws between 10 and 35 mm in lenght Key: 1 x 240 mm 0 bowl feeds an air/electric • Low level sensor: device for the bowl feeder indicates when the bowl needs screw reloading. Upon request: • Basic structure to support the feeder, equipped with aluminum base plate already prepared with the holes that allow to fix the suitable feeder on it. With aluminum profiles with channels for cables and tube bundles inside the slots positioned under the support surface, is available with support adjustable feet in height...

EasyDriver ED B M 1|1 screw feeder Used when the job involves large screws and also in the event of high production rates to allow the system to run unaided for longer. Screws: For screws between 35 and 60 mm in lenght Key: MAXI 1|1 = 1 x 420 mm 0 bowl feeds • Low level sensor: device for the bowl feeder indicates when the bowl needs screw reloading. Upon request: • MAXI structure to support the feeder, equipped with aluminum base plate already prepared with the holes that allow to fix the suitable feeder on it. With aluminum profiles with channels for cables and tube bundles inside the slots...

EasyDriver ED S screw feeder - Silent FeederrUsed as a much quieter alternative to vibrating bowls, is equipped with a segment conveyor that loads, aligns and sends the screws to an inclined rail optimally and without jamming. Tank: 2 Lt capacity (Approx. 2000 screws M4x16 DIN912 type) • Screw shank 0= min 3 mm - max 5 mm (6 mm to be evaluate depending on application) No wood screws with deep thread and sharp point. No screws with loose or captive washers. the tank feeds an air/electric screwdriver • Low level sensor: device for the bowl feeder indicates when the bowl needs screw reloading. Upon...
