FG WILSON

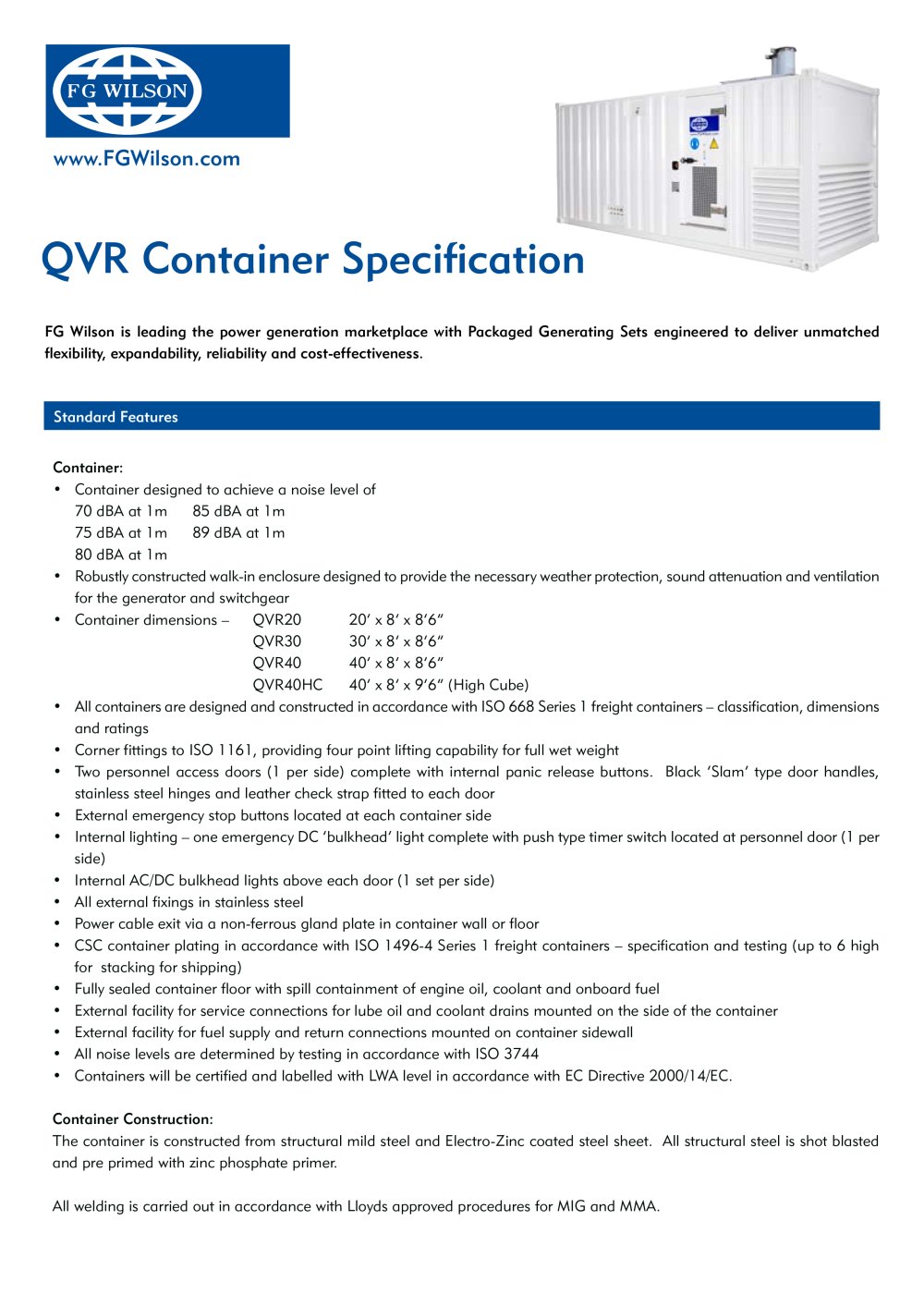

Standard Container Specification

Standard Container Specification

Product catalog summary

Overview: FG Wilson is a leader in the power generation market, offering Packaged Generating Sets known for their flexibility, expandability, reliability, and cost-effectiveness.

Container Specifications:

Noise Levels: Designed to achieve noise levels of 70-89 dBA at 1m.
Construction: Robust walk-in enclosures providing weather protection, sound attenuation, and ventilation.
Dimensions: Available in QVR20 (20’x8’x8’6”), QVR30 (30’x8’x8’6”), QVR40 (40’x8’x8’6”), and QVR40HC (40’x8’x9’6” High Cube).
Compliance: Built according to ISO 668 and ISO 1161 standards for freight containers.
Features: Includes personnel access doors with panic release, emergency stop buttons, internal and external lighting, and stainless steel fixings.
Safety: Fully sealed floors with spill containment and external service connections for oil and coolant.
Certification: Containers certified with LWA level per EC Directive 2000/14/EC.

Construction Details:

Materials: Made from structural mild steel and Electro-Zinc coated steel sheets.
Welding: Conducted per Lloyds approved procedures.
Floor: Structural steel frame with anti-slip paint coating.
Walls and Roof: Acoustically lined with galvanized expanded metal sheets.
Acoustic Attenuation: Uses Rockwool for sound absorption, compliant with BS476.4 standards.
Paint Finish: High-performance paint system providing corrosion protection and gloss retention.

Additional Features:

Exhaust Silencers: Internally mounted, fabricated in mild steel, and treated for high temperature.
Louvres: Steel sheet construction with water and vermin prevention features.
Doors: Acoustically lined with secure locking mechanisms and emergency release.
Lighting: Equipped with DC and AC lights over doors for visibility.

Weights:

QVR20: 5,200kg
QVR30: 7,000kg
QVR40: 10,900kg
QVR40HC: 11,600kg

Global Presence: FG Wilson has manufacturing facilities in Northern Ireland, Brazil, China, India, and the USA, with a global dealer network.

Note: Specifications are subject to change without notice as part of continuous product development.
