Overview

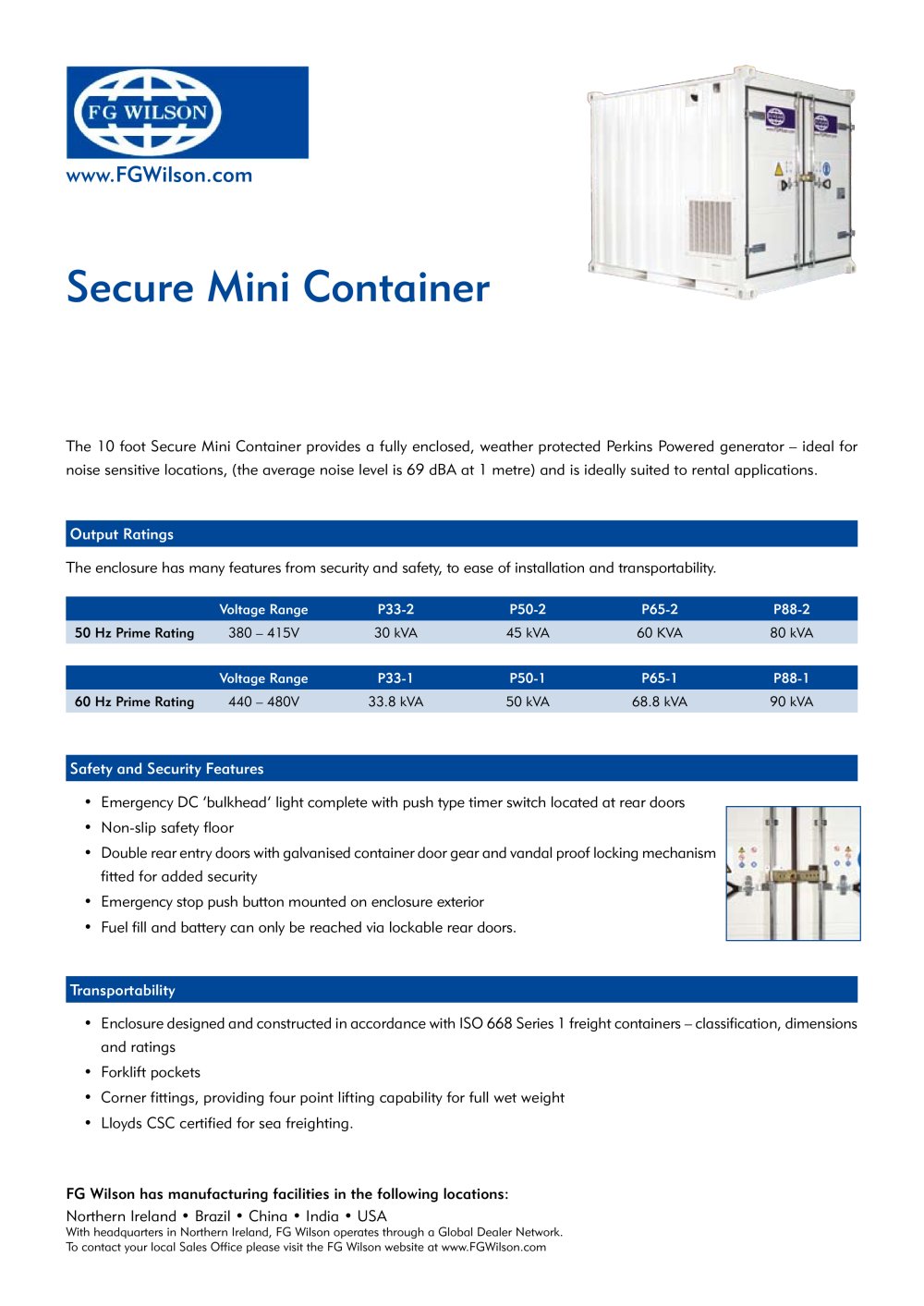

The 10-foot Secure Mini Container is a fully enclosed, weather-protected generator powered by Perkins, designed for noise-sensitive locations with an average noise level of 69 dBA at 1 meter. It is ideal for rental applications due to its security, safety features, and ease of installation and transportability.

Output Ratings
The generator offers different voltage ranges and prime ratings for 50 Hz and 60 Hz frequencies:

50 Hz Prime Rating: 380 – 415V with options of 30 kVA, 45 kVA, 60 kVA, and 80 kVA.
60 Hz Prime Rating: 440 – 480V with options of 33.8 kVA, 50 kVA, 68.8 kVA, and 90 kVA.

Safety and Security Features

Emergency DC light with a timer switch at the rear doors.
Non-slip safety floor and double rear entry doors with vandal-proof locking.
Emergency stop button on the exterior.
Fuel fill and battery access through lockable rear doors.

Transportability

Designed according to ISO 668 Series 1 freight container standards.
Includes forklift pockets and corner fittings for lifting.
Lloyds CSC certified for sea freighting.

Additional Features

CE compliant with full-width rear opening doors for easy access.
Bunded enclosure floor to contain 110% of onboard fluids.
Internally mounted exhaust system with protective guards.
Ventilation through louvred openings and acoustically lined ducts.
Stainless steel earthing studs.

Enclosure Construction and Paint Finish
The enclosure is made from structural mild steel and galvanized steel sheet, shot blasted, and pre-primed with zinc phosphate primer. It features an epoxy/acrylic paint system for corrosion protection and color stability.

Dimensions and Weights
Dimensions are consistent across models with a length of 2991 mm (118 in), height of 2591 mm (102 in), and width of 2438 mm (96 in). Weights vary by model:

P33-1 / P33-2: 3320 kg (7319 lb)
P50-1 / P50-2: 3400 kg (7716 lb)
P65-1 / P65-2: 3500 kg (7937 lb)
P88-1 / P88-2: 3620 kg (7982 lb)
