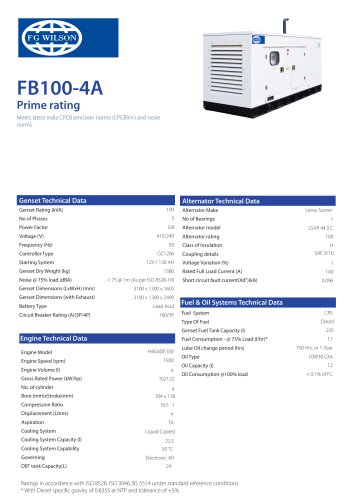

FB100-4APrime rating Meets latest India CPCB emission norms (CPCBIV+) and noise norms Lead Acid No of Phases Power Factor Voltage (V) Controller Type Starting System Genset Dry Weight (kg) Genset Dimensions (LxWxH) (mm) Genset Dimensions (with Exhaust) Battery Type Circuit Breaker Rating (A)(3P/4P) Gross Rated Power (kW/hp) 92/122 Cooling System Liquid Cooled Cooling System Capacity (l) 22 5 Cooling System Capability 50 °C Alternator Make Leroy Somer Alternator model LSAP 44.3 C Rated Full Load Current (A) 140 Short circuit fault current(Xd")(kA) 0.096 Fuel System Type Of Fuel Genset Fuel Tank Capacity (l) Fuel Consumption - @ 75% Load (l/hr)* Lube Oil change period (hrs) Ratings in accordance with ISO 8528, ISO 3046, BS 5514 under standard reference conditions. * With Diesel specific gravity of 0.8355 at NTP and tolerance of +5%

EXHAUST PIPE HEIGHT Caterpillar (NI) Limited is the manufacturer of FG Wilson brand diesel generating sets, and our facilities manufacture products in the following locations: Brazil • China • India With headquarters in Northern Ireland, FG Wilson products are distributed through a Global Dealer Network. To contact your local Sales Office, please visit the FG Wilson website at www.fgwilson.com In line with our policy of continuous product development, we reserve the right to change specification without notice.
