Vacuum Cleaner HeoloS - Fevi

Product catalog summary

Overview
The document provides a detailed description of HeoloS patented industrial suction systems, designed to meet a wide range of suction requirements. These systems are particularly suited for sand-blasting machines and industrial suction units.

Specifications

Filtering Units: All HeoloS units are equipped with two filtering units: a primary filter in class M and a secondary HEPA class filter.
Structure: The units feature a stainless steel structure, ensuring durability and reliability.
Release System: An innovative release system allows for the efficient suction and disposal of large material quantities without stressing the structure.
Maneuverability: The units are designed for easy control, even when fully loaded.

Product Series

HSP Series: Designed for suction of greases and emulsions, featuring a fluid elimination pump and a scrap filtering basket.
HSD Series: Focused on dust suction, utilizing a filtering cartridge shaking system to prevent premature clogging.
HSB Series: Includes a continuous bag suction system for dust collection without contamination.
HSC Series: Compressed air suction units for environments where electrical power is unavailable.
HSE Series: Specializes in fluid suction, featuring a reversed flow system for efficient tank emptying.

Technology Features

Reversed Flow System: Facilitates fluid elimination and self-cleaning of the filtering cartridge.
Cyclone System: Prevents premature filter clogging by gradually introducing dust into the cartridge.

Safety and Certifications
The HeoloS suction units comply with European directives 94/9/EC and 99/92/EC for use in potentially explosive environments, certified for dust zones 21-22 and gas zones 1-2.

Technical Data
The document includes detailed technical specifications for various models, including voltage, power, maximum depression, air flow rate, noise level, and capacity.

Catalog excerpts

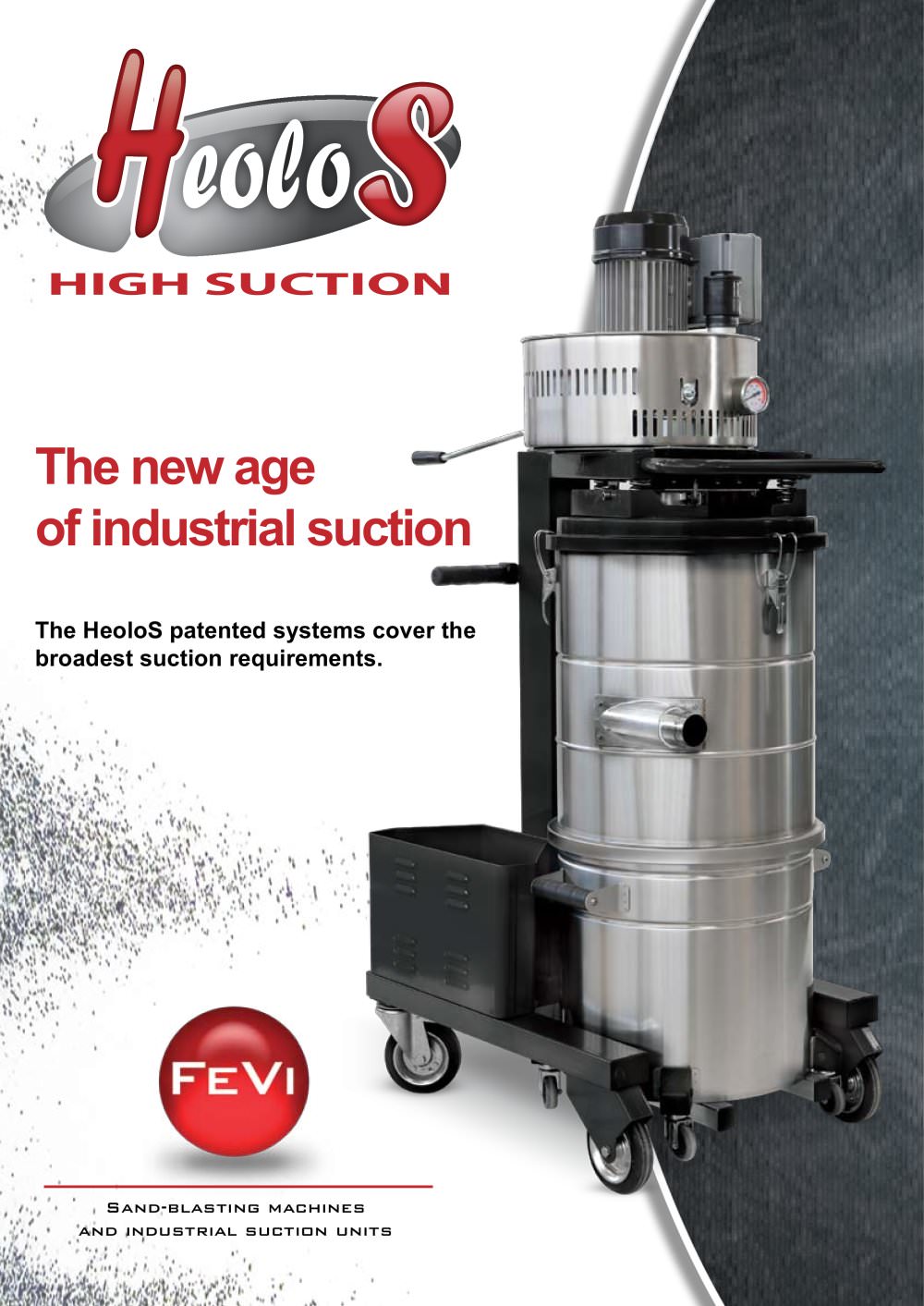

The HeoloS patented systems cover the broadest suction requirements. s ystems cov e e r the ui rements . > Sand-blasting machines and industrial suction units m achines size="-1">

Open the catalog to page 1

The entire range of HeoloS suction units is fitted with two filtering units: - primary in class M. - secondary in Hepa class. T he entire range of HeoloS suction units is f itted with two f iltering units: - primar y in class M. - secondar y in Hepa clas s. > The The innovative release system innovativereleasesystem of the drum assures the suction and the disposal of large quanti- ties of material, without excessive stress to the structure. > It is standard on the entire HeoloS range, and brings an added value as- suring sturdy, reliable and long-lasting units. > HeoloS suction units allow the...

Open the catalog to page 2

HeoloS Suction units are fitted with the innovative reversed flow system. It enables two important mechanical actions, the elimination of the fluids and emulsions previously sucked and the self-cleaning of the filtering cartridge which enables to channel large quantities of dust into the suction unit without prematurely clogging the cartridge filter. Innovative suction systems , with the standard HeoloS configuration but enhanced with the new continuous bag device for the collection of the sucked material.The operator can perform even more difficult operations without being contaminated by the...

Open the catalog to page 3

Voltage (V)Power (kW)Max depression (mm H2O)Pressure relief valve opera-tion from 2000 mm H2O to Air flow rate (max m/h)Noise level dB/(A)Capacity (l)HS-G 1100 230/400113.1003.1001.00075100 HS-G 1100 serie 230/400115.0005.00070075100 HS-G 550/100 4005.53.1003.10056074100 HS-G 550/100 serie 4005.55.0005.00038075100 HS 550-100 4005.53.1003.10056078100 HS 300/100 230/40033.1003.1003207470 HS 300/70 230/40033.1003.1003207470 HS 220/100 220 mono3.6 2.300-4507470 HS 220/70 220 mono3.62.300-4507470 HS 220/50 220 mono2.42.300-300-50 HS 220/50 220 mono3.6 2.300-450-50 > Voltage (V)Power (kW)Max depression...

Open the catalog to page 4
