Compact cylinder ADN series
2Pages

{{requestButtons}}

Catalog excerpts

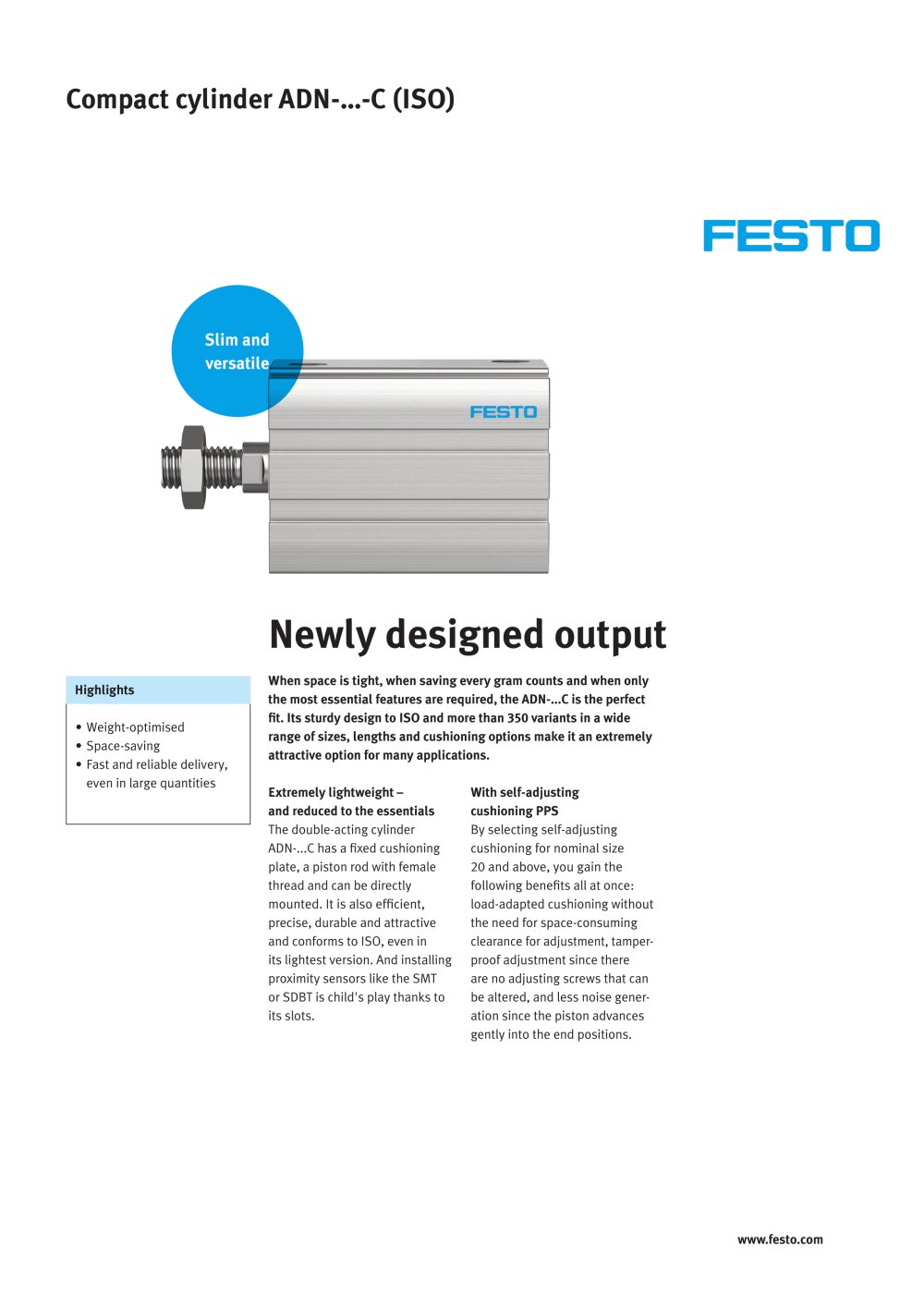

Compact cylinder ADN series - 1

Compact cylinder ADN-…-C (ISO) Newly designed output Highlights • Weight-optimised • Space-saving • Fast and reliable delivery, even in large quantities When space is tight, when saving every gram counts and when only the most essential features are required, the ADN-...C is the perfect fit. Its sturdy design to ISO and more than 350 variants in a wide range of sizes, lengths and cushioning options make it an extremely attractive option for many applications. Extremely lightweight – and reduced to the essentials The double-acting cylinder ADN-...C has a fixed cushioning plate, a piston rod with female thread and can be directly mounted. It is also efficient, precise, durable and attractive and conforms to ISO, even in its lightest version. And installing proximity sensors like the SMT or SDBT is child's play thanks to its slots. With self-adjusting cushioning PPS By selecting self-adjusting cushioning for nominal size 20 and above, you gain the following benefits all at once: load-adapted cushioning without the need for space-consuming c learance for adjustment, tamperproof adjustment since there are no adjusting screws that can be altered, and less noise generation since the piston advances gently into the end positions.

Open the catalog to page 1
Compact cylinder ADN series - 2

Compact cylinder ADN-…-C (ISO) The features at a glance Time-saving Self-adjusting cushioning (PPS) Easy to interchange For standard sizes to ISO 21287: weight-reduced Fast access to all product data thanks to lasered data matrix code Easy to assemble Markings for proximity sensor positions Space-saving Streamlined outer contour for tight mounting conditions As needed Wide choice of variants delivered quickly The most important sizes in compliance with ISO 21287 20 Cushioning variants available in the series 12 Festo core product range covers 80% of your automation tasks Worldwide: always...

Open the catalog to page 2
