Rotating Combination Audible/Visual Warning Signal

Rotating Combination Audible/Visual Warning Signal
2Pages

Catalog excerpts

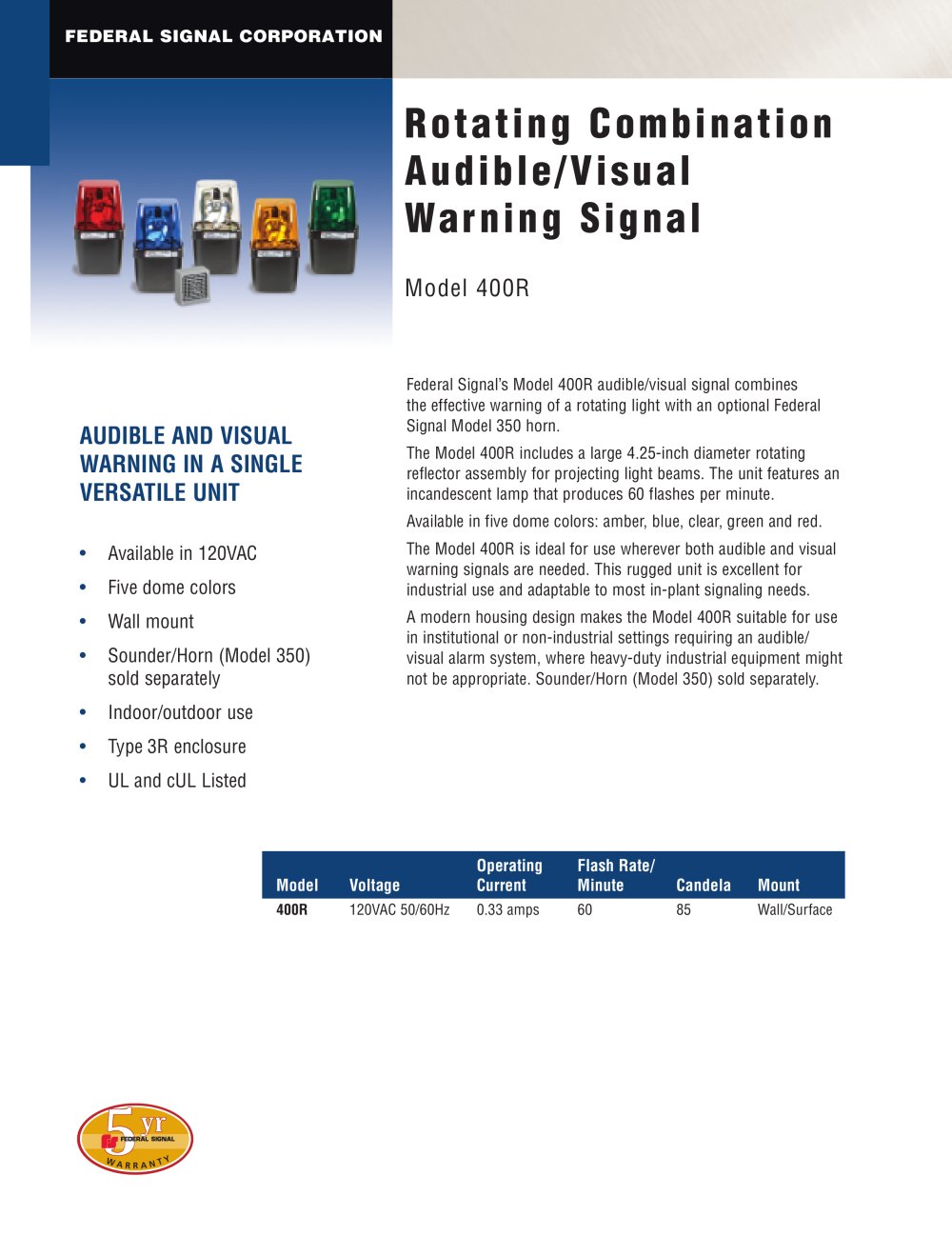

Rotating Combination Audible/Visual Warning Signal - 1

AUDIBLE AND VISUAL WARNING IN A SINGLE VERSATILE UNIT • Available in 120VAC • Five dome colors • Wall mount • Sounder/Horn (Model 350) sold separately • Indoor/outdoor use • Type 3R enclosure • UL and cUL Listed Rotating Combination Audible/Visual Warning Signal Model 400R Federal Signal’s Model 400R audible/visual signal combines the effective warning of a rotating light with an optional Federal Signal Model 350 horn. The Model 400R includes a large 4.25-inch diameter rotating reflector assembly for projecting light beams. The unit features an incandescent lamp that produces 60 flashes per minute. Available in five dome colors: amber, blue, clear, green and red. The Model 400R is ideal for use wherever both audible and visual warning signals are needed. This rugged unit is excellent for industrial use and adaptable to most in-plant signaling needs. A modern housing design makes the Model 400R suitable for use in institutional or non-industrial settings requiring an audible/ visual alarm system, where heavy-duty industrial equipment might not be appropriate. Sounder/Horn (Model 350) sold separately. FEDERAL SIGNAL CORPORATION Operating Flash Rate/ Model Voltage Current Minute Candela Mount 400R 120VAC 50/60Hz 0.33 amps 60 85 Wall/Surface 5yr W A R R A N T Y

Open the catalog to page 1

Rotating Combination Audible/Visual Warning Signal - 2

ROTATING AUDIBLE/VISUAL WARNING SIGNAL (400R) 2645 Federal Signal Dr., University Park, IL 60466 Tel: 708.534.4756 Fax: 708.534.4852 www.federalsignal-indust.com HOW TO ORDER • Specify model, voltage and color • Specify options: Audible signaling with horn (350) and mounting kit (400HMK-AC) sold separately • Please refer to Model Number Index 400R beginning on page 377 99 SPECIFICATIONS Lamp Style: Incandescent Incandescent Operating Temperature: -31°F to 150°F -35°C to 66°C Net Weight: 4.5 lbs. 2.0 kg Shipping Weight: 5.1 lbs. 2.3 kg Height: 10.5" 266.7 mm Diameter: 6.31" 160.3 mm Dome...

Open the catalog to page 2
