Open the catalog to page 1
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Times New Roman", serif; } Vertical Type Switch Fuses Single - Phase Separate Opened Three - Phase Joint Opened Features Technical Table Technical Drawings 1 2 3 FVS160 NH00/160A FVS250 NH1/250A FVS400 NH2/400A FVS630 TS EN 60947-3 EN 60947-3 IEC 60947-3 CE Assembly Position Altitude Relative Humidity Ambient Temprature Pollution Degree Protection Class Use Class Over Voltage Class...
Open the catalog to page 2
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:16.00pt "Arial", sans-serif; } .font3 { font:24.50pt "Arial", sans-serif; } .font4 { font:36.00pt "Arial", sans-serif; } .font5 { font:13.00pt "Times New Roman", serif; } VERTICAL TYPE SWITCH FUSES Fdral Electric vertical type switch fuses are manufactur驩e! in AC 22-B class in accordance with IEC 60947-3 standard according to CE. Fdral FVS vertical type switch fuses are used in electricity distribution for protection against short circuit...
Open the catalog to page 3
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:16.00pt "Arial", sans-serif; } VERTICAL TYPE SWITCH FUSES Vertical Type Switch Fuses Technical Features: Type FVS160 FVS250 FVS400 FVS630 Number of Ples Ad. 3 3 3 3 Rated Thermal Current (Ith) A 160 250 400 630 Rated Insulation Voltage (Ui) V 1000 1000 1000 1000 Rated impulse withstand voltage (Uimp) kV 8 8 8 8 Rated Frequency Hz 50-60 50-60 50-60 50-60 Capacitor Power 380V kVAr 76 140 220 300...
Open the catalog to page 4

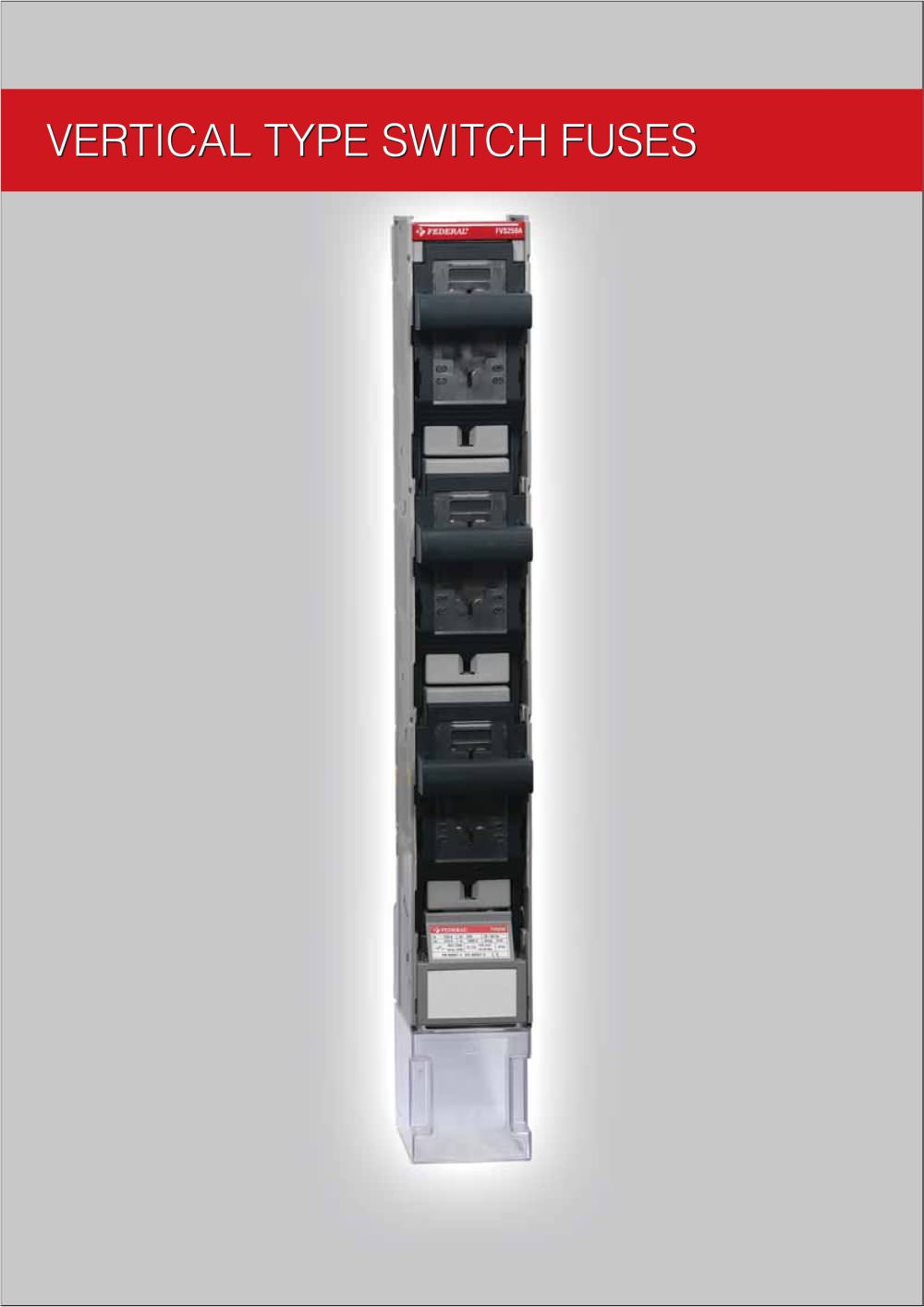

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:16.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Times New Roman", serif; } VERTICAL TYPE SWITCH FUSES FEDERAL
