Federal Elektrik
Natural gas meters

Natural gas meters

Product catalog summary

Overview: This document provides comprehensive technical specifications, assembly instructions, and maintenance guidelines for various models of natural gas meters, including FN G2.5, FN G4, FN G6, and FN G10. It also details the integration of prepaid module systems with these meters.

General Features: The gas meters are made from deep drawing sheet and coated with electrostatic powder paint. They feature a magnetic transfer system designed to minimize pressure loss and are compatible with natural gas, air gas, and LPG gas. The meters are equipped with a counter structure suitable for prepaid systems.

Technical Specifications: Each model has specific parameters such as flow rates, operating pressure, and temperature ranges. For instance, the FN G2.5 model operates between 0.025m3/h and 4m3/h with a maximum pressure of 0.5 bar.

Assembly Instructions: Meters should be installed in stairwells or external panels, ensuring correct flow direction and counter display height. A check valve is required at the counter inlet, and connections should use stainless flexible hoses and appropriate gaskets.

Maintenance Guidelines: Regular cleaning with a wet cloth is recommended, while external washing is discouraged. Maintenance should be conducted by the manufacturer, and approved filters are advised to extend the device's lifespan.

Points to Consider: Meters should be protected from environmental factors, and electrical devices should be kept at a safe distance. Unauthorized interference can lead to penalties, and proper assembly is crucial to avoid damage during installation.

Performance Data: The document includes error and pressure loss curves for each model, illustrating performance across different flow rates.

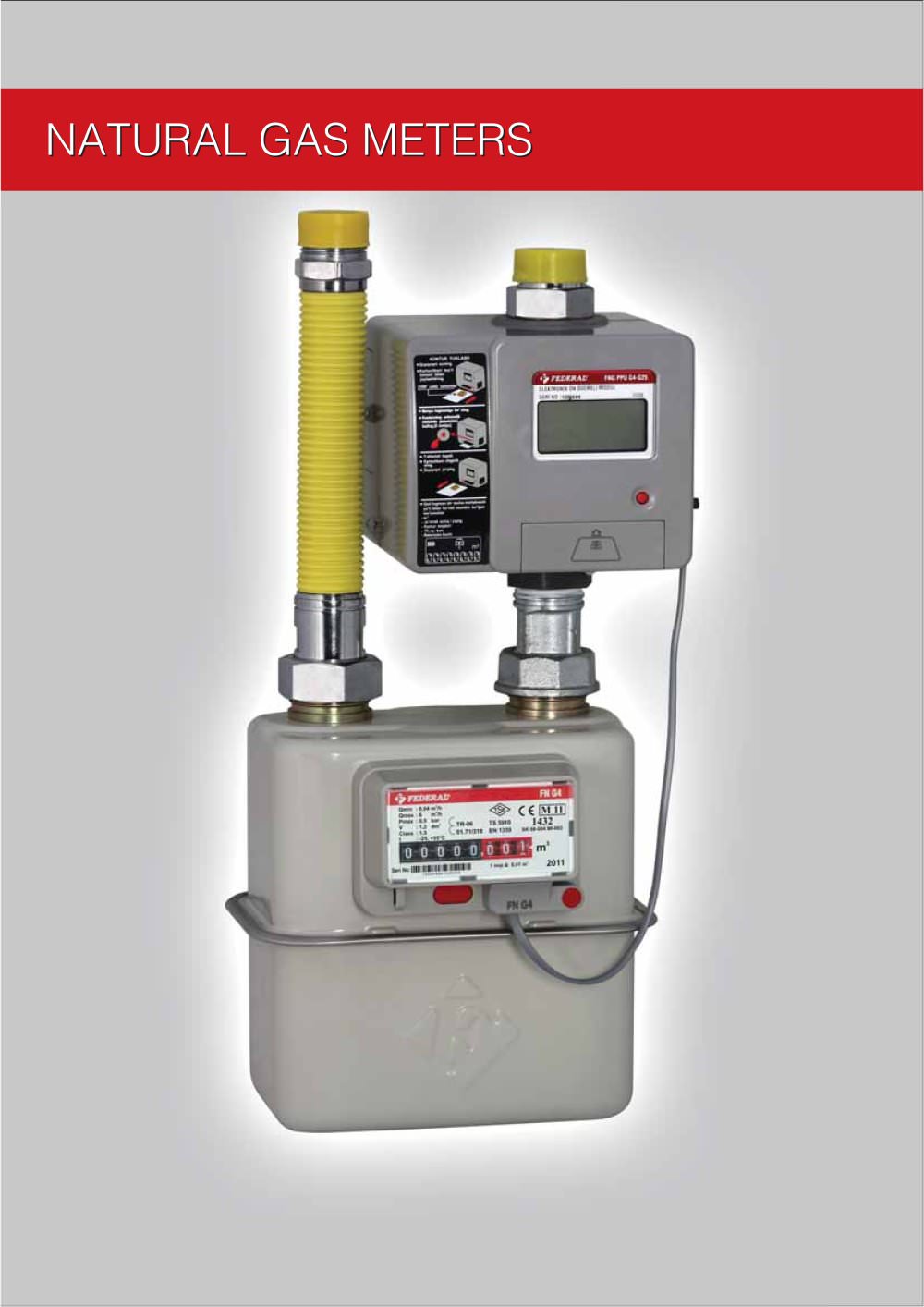

FN G4-CPPU V1 and V2 Prepaid Compact Natural Gas Meters: Designed for home subscribers with low consumption, these meters integrate mechanical and electronic components for efficient gas measurement and management.

Specifications:

Gas Types: Natural Gas and Air Gas
Flow Rate: 0.04m3/h to 6m3/h
Operating Pressure: Max 500mbar
Operating Temperature: -25°C to +55°C
Resolution: 0.001m3
Power: Long-lasting lithium batteries with a super capacitor

General Features:

Mechanic gas meter with a special gas cutting valve
Smart circuit with LCD display and smart card reader
Credit management via smart card
Battery life of at least 10 years

Safety Precautions:

Concealed connections requiring cover removal for access
Sealed body with electronic detection of unauthorized access
Automatic gas cut-off in case of extreme consumption or failures

Advantages of the Prepaid System:

Eliminates monthly meter reading visits
Protects subscribers from price fluctuations
Encourages conscious consumption

Technical Features:

Processor-based design with SMD technology
Advanced LCD with flow consumption detection
IP54 rated for environmental protection
Smart card reader compatible with ISO7816

Optional Features (V2):

Gas temperature measurement and correction
Wireless M-BUS for remote reading
Remote software updating capabilities

Installation and Maintenance Recommendations:

Protect from weather and physical damage
Maintain a minimum distance from electrical devices
Use filters to prevent dust and debris entry

Prepaid Gas Distribution System: Focuses on the FN G6-CPPU Prepaid Compact Natural Gas Meter, outlining system components, features, and operational procedures.

System Components:

Prepaid Counter and Credit Loading Card
Credit Selling Points
Subscriber Monitoring System

Technical Features of FN G6-CPPU Gas Meters:

Designed for large residences and small entities
Includes a mechanical gas meter, gas cutting valve, and electronic prepay circuit
Equipped with a smart circuit, LCD display, and smart card reader

Optional Features:

Gas temperature measurement and correction
Wireless M-BUS for remote reading
Remote software updates

Usage Features:

Monitors credit status and operating conditions
Alerts subscribers when credit is low
Stores a portion of purchased gas as a reserve

Installation and Maintenance:

Requires protection from weather and physical damage
Should be installed away from electrical devices

Advantages of Prepaid System:

Eliminates monthly meter readings
Consumers pay in advance, avoiding price fluctuations

Loading Credit:

Credit is loaded via a smart card
Four scenarios when loading credit: successful main credit load, reserve credit load, failure to load, and error

Prepayment Module Overview: Main Credit is activated upon card insertion, while Reserve Credit is used for emergencies.

Modular Unit Testing Information: Standards and tests for user and device safety include climate, performance, and EMU tests.

Natural Gas Meters: Details on gas intake direction and connection notch measurements for different models are provided.

Problem Resolution: Common issues and solutions include checking the battery, network status, and ensuring correct card insertion.

Catalog excerpts

Contents Natural Gas Meter FN G2,5 FN G4 FN G6 FN G10 Prepaid Compact Type Natural Gas Meters FN G4-CPPU V1 FN G4-CPPU V2 FN G6-CPPU Prepaid Module FNG-PPU G4-G25 FN G2.5 / FN G4 Technical Features General Features Basınç Kaybı ve Hata Eğrileri Points to be considered Technical Drawings FN G6 Technical Features General Features Basınç Kaybı ve Hata Eğrileri Points to be considered Technical Drawings FN G10 Technical Features General Features Basınç Kaybı ve Hata Eğrileri Points to be considered Technical Drawings FN G4-CPPU V1 Technical Features General Features Basınç Kaybı ve Hata Eğrileri...

Open the catalog to page 2

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:16.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Sylfaen", serif; } ATURAL G AS METER FN G4 General Features Outer body is made of deep rolled plate. Numbering machine records in positive direction even when there is reverse flow of the gas. It has been manufactured with minimum number of parts made of inner body engineering plastic. For more sensitive measurements in G4 meter, minimum-friction 360° rotating rotor type operating mechanism...

Open the catalog to page 3

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:16.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Sylfaen", serif; } ATURAL G AS METER Type Connection Dimensions 4- 1 4- FN G4 DN Tooth sizes h a b c CL 32 G1"4' 226 110 206 68,5 166 Type Connection Dimensions FN DN Tooth sizes h a b c d G6 32 G1«" 276 130 231 78 187 Tip Connection Dimensions FN DN Tooth sizes h a b c CL G10 50 G2- 345 280 395 93 214 FEDERAL

Open the catalog to page 5

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:16.00pt "Arial", sans-serif; } ATURAL G AS METER Type Connection Dimensions FN CPPU DN Tooth sizes h a b c d G4 32 G1 1/4" 226 110 206 68,5 168 Type Connection Dimensions FN CPPU G6 DN Tooth sizes h a b c d 32 G1 1/4" 276 130 231 78 195 ipFEDERAL 23/4

Open the catalog to page 6

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:16.00pt "Arial", sans-serif; } .font5 { font:14.00pt "Lucida Sans Unicode", sans-serif; } .font6 { font:13.00pt "Sylfaen", serif; } .font7 { font:6.00pt "Tahoma", sans-serif; } ATURAL GAS METER Pre-Payment Module Fdral pre-payment unit is a unit which carries out counting transaction with the help of puise signal taken from counting disks of natural gas meters...

Open the catalog to page 7
