Catalog excerpts
tr.row {} td.cell {} div.block {} div.paragraph {}
Open the catalog to page 1

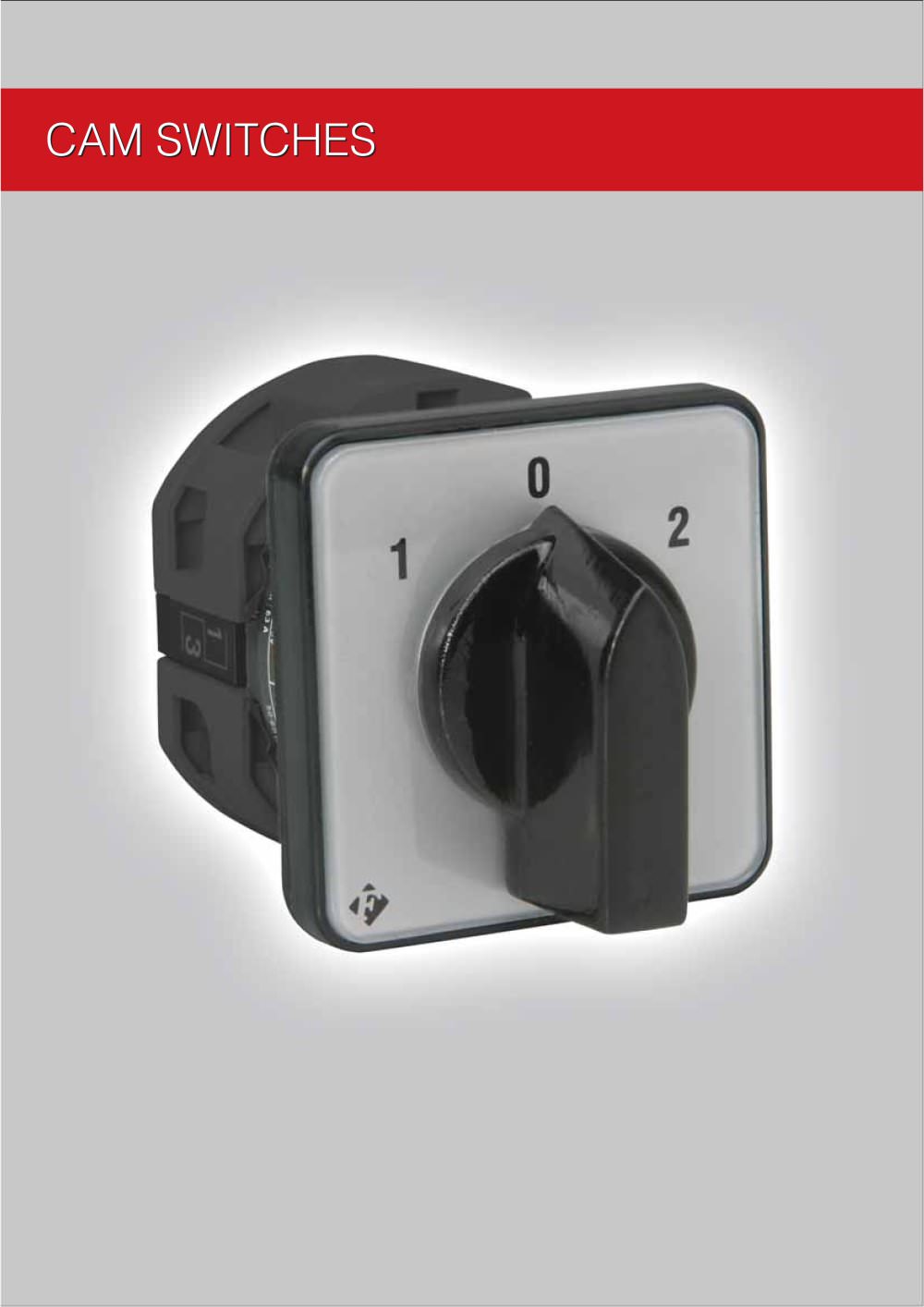

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:63.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Times New Roman", serif; } Cam switches On-Off switches Features Technical Table Order Codes Technical Drawings 1 1 2 3 Change Over Switches 01 Star Delta Starters Motor Reversing Switches Ammeter Switches Safely switches TS EN 60947-3 EN 60947-3 IEC 60947-3 CE Assembly Position Altitude Relative Humidity Ambient Temprature Pollution Degree Free 2000 m (max) 50% (40°C) , 90% (20°C)...
Open the catalog to page 2
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Times New Roman", serif; } .font2 { font:14.00pt "Times New Roman", serif; } CAM SWITCHES Switch Manual switches, which consist of conscutive order of more than one same contact slots on a shaft and which can rotate around an axis; which are used in motor connection works, measurement device commutators and control and distribution panels, are called Cam (paco) switches. Mdium and large-power motors are controlled with contactors and relays. However, as controlling of...
Open the catalog to page 3
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:6.00pt "Times New Roman", serif; } .font4 { font:11.00pt "Times New Roman", serif; } .font5 { font:13.00pt "Times New Roman", serif; } .font6 { font:14.00pt "Times New Roman", serif; } CAM SWITCHES On-Off switches Type Rated Thermal Current Ith (A) Number of Pole - Stages Label Plate Connection Diagram Order Code 10 1 Ple-1 Stage Q 1 3 FCS1 20 2 Pole "1 sta9e 1 xis! 25 3 Pole-2 Stage W I 1 FCS2 32...
Open the catalog to page 4
tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Times New Roman", serif; } .font5 { font:14.00pt "Times New Roman", serif; } CAM SWITCHES FCS2: x4 21 21.5 FCS2 Safety switches: max 4 21 <- Body lengths: Number of Slices_ FCS1 Body Length (I_1) FCS2 Body Length (L2) 1 2 3_ 31.5 41 50.5 49 " 70.5 92 _4_ 60_ 113.5 Order Code: 20A 9TP-10308-0020 32A 9TP-20308-0032 63A 9TP-20308-0063 10/3 FEDERAL
