Product catalog summary

Overview: FCI is a prominent connector manufacturer with a global reach in 30 countries, serving markets such as automotive and telecommunications. This document outlines FCI's terminal blocks, available in pluggable and fixed configurations, featuring high-performance cage-clamp technology.

Material and Design: The terminal blocks are constructed from PA66 thermoplastic resin, colored green, with a UL94V-0 flammability rating. The terminals are made of PhBz, tin-plated, with brass, nickel-plated clamps, and steel, zinc-plated screws. They are RoHS compliant and designed for 200 mechanical cycles.

Pluggable Terminal Blocks: These blocks offer a robust, modular design with 2 to 24 positions and various configurations, including key entry side and contact up/down sides. They are suitable for signal and power applications, with specific pitches and torque specifications.

Fixed Terminal Blocks: Designed similarly to pluggable blocks, these feature horizontal wire inlets and are intended for signal applications. They are stackable and utilize a high-performance cage-clamp contact system.

Approvals and Part Numbers: The document lists part numbers for different configurations, indicating compliance with recognized standards for reliability and compatibility.

Packaging and Applications: Terminal blocks are packaged in boxes and used for fixed horizontal wire inlet applications, suitable for both signal and power connections.

Product Specifications: The blocks have a robust design with a modular system ranging from 2 to 24 positions, featuring a horizontal wire inlet and stackability. The cage-clamp contact system is a notable feature.

Technical Data:
Physical Properties: Housing is PA66 thermoplastic resin, green, UL94V-0 rated. Terminal material is PhBz, tin-plated; clamp is brass, nickel-plated; screw is steel, zinc-plated. RoHS compliant.
Mechanical Performance: Durability is 200 cycles, insertion force is 5.5 Newton Max, withdrawal force is 1.0 Newton Min.

Torque Specifications: For signal applications with pitches of 5.00mm and 5.08mm, torque is 3.5 Lb-in [0.40 Nm]. For power applications with a pitch of 7.62mm, torque is 8.9 Lb-in [1.01 Nm].

Contact Information: For further details, visit the FCI website or contact their sales offices in the Americas, Europe, or Asia/Pacific.

Catalog excerpts

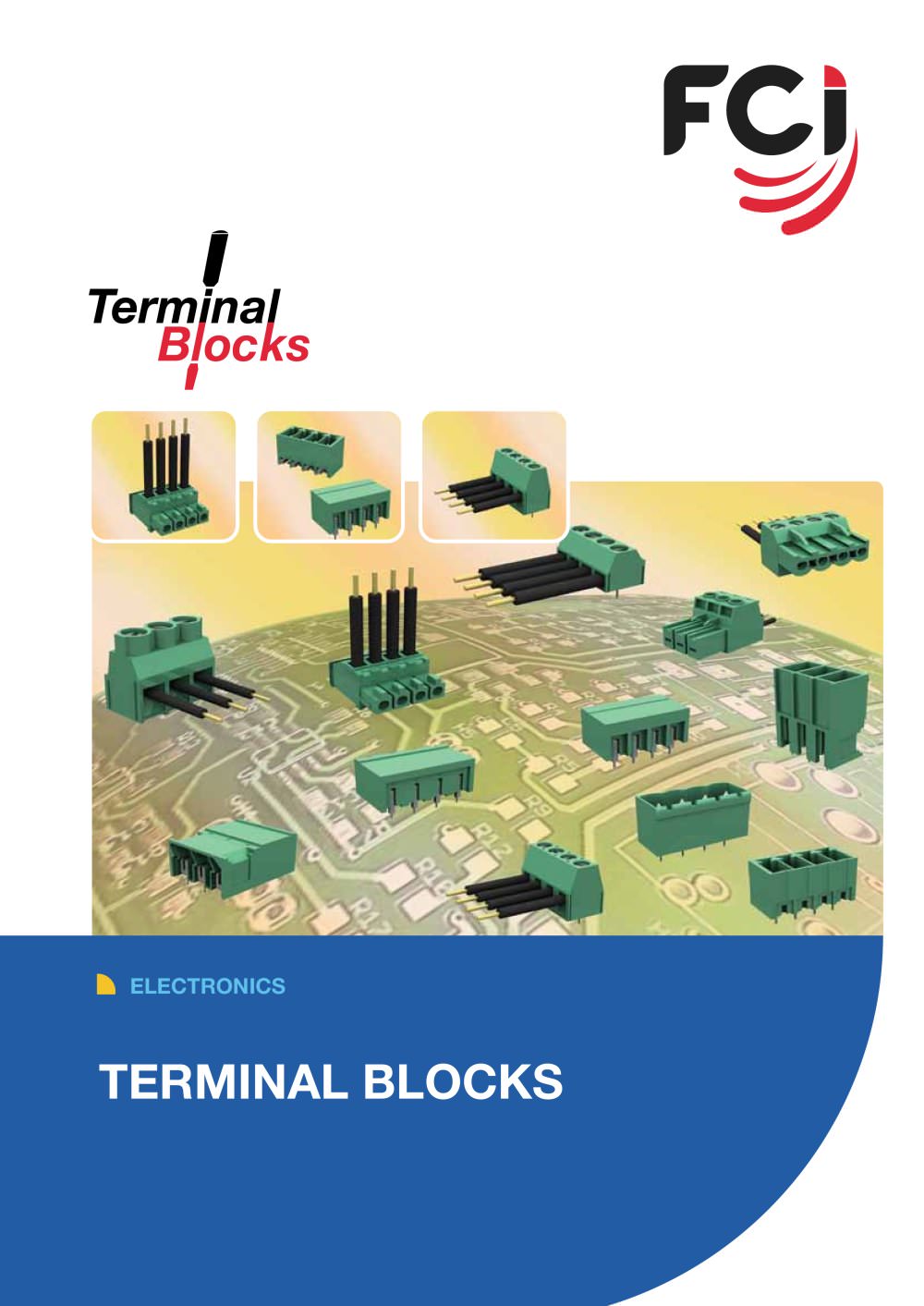

1 www.fci.com/terminalblocks TERMINAL BLOCKS ELECTRONICS

Open the catalog to page 1

2 www.fci.com/terminalblocks LIABILITY We believe that the information contained in this publication is the best currently available on the subject. It is offered as a possible helpful suggestion in any experimentation you may care to undertake and is subject to revision as additional knowledge and experience is gained. FCI makes no guarantee of results and assumes no obligation or liability whatsoever in connection with this information. This publication is not a license to operate under, or intended to suggest infringement of, any existing patent. Information given on the drawings in this document...

Open the catalog to page 2

3 www.fci.com/terminalblocks Technical Information Application Overview PLUGGABLE FIXED PCB wire screw clamp terminal wire PCB screw clamp terminal

Open the catalog to page 3

4 www.fci.com/terminalblocks Terminal Blocks, Pluggable PRODUCT TECHNICAL DATA PHYSICAL Housing: PA66 Thermoplastic resin Housing color: Green Flammability: UL94V-0 Terminal material: PhBz, Tin plated Clamp material: Brass, Nickel plated Screw material: Steel, Zinc plated RoHs compatible MECHANICAL PERFORMANCE Durability: 200 cycles Insertion force: 5.5 Newton Max. Withdrawal force: 1.0 Newton Min. PACKAGING Standard: box TYPICAL APPLICATIONS REFERENCE DATA MATING DATA Pluggable socket STR 3.50 / 3.81 mm - mpn 20020 107 Pluggable socket RA 3.50 / 3.81 mm - mpn 20020 110 PART NUMBERS FEATURES...

Open the catalog to page 4

5 www.fci.com/terminalblocks Terminal Blocks, Pluggable PRODUCT TECHNICAL DATA PHYSICAL Housing: PA66 Thermoplastic resin Housing color: Green Flammability: UL94V-0 Terminal material: PhBz, Tin plated Clamp material: Brass, Nickel plated Screw material: Steel, Zinc plated RoHs compatible MECHANICAL PERFORMANCE Durability: 200 cycles Insertion force: 5.5 Newton Max. Withdrawal force: 1.0 Newton Min. PACKAGING Standard: box TYPICAL APPLICATIONS REFERENCE DATA MATING DATA Pluggable socket STR 5.00 / 5.08 mm - mpn 20020 107 Pluggable socket RA 5.00 / 5.08 mm - mpn 20020 110 PART NUMBERS FEATURES...

Open the catalog to page 5

6 www.fci.com/terminalblocks Terminal Blocks, Pluggable PRODUCT TECHNICAL DATA PHYSICAL Housing: PA66 Thermoplastic resin Housing color: Green Flammability: UL94V-0 Terminal material: PhBz, Tin plated Clamp material: Brass, Nickel plated Screw material: Steel, Zinc plated RoHs compatible MECHANICAL PERFORMANCE Durability: 200 cycles Insertion force: 5.5 Newton Max. Withdrawal force: 1.0 Newton Min. PACKAGING Standard: box TYPICAL APPLICATIONS REFERENCE DATA Pluggable Plug - contact up side - Signal Pitch 3.50mm (.138”) / 3.81mm (.150”) MATING DATA Pluggable socket STR 3.50/ 3.81 mm - mpn 20020...

Open the catalog to page 6

7 www.fci.com/terminalblocks Terminal Blocks, Pluggable PRODUCT TECHNICAL DATA PHYSICAL Housing: PA66 Thermoplastic resin Housing color: Green Flammability: UL94V-0 Terminal material: PhBz, Tin plated Clamp material: Brass, Nickel plated Screw material: Steel, Zinc plated RoHs compatible MECHANICAL PERFORMANCE Durability: 200 cycles Insertion force: 5.5 Newton Max. Withdrawal force: 1.0 Newton Min. PACKAGING Standard: box TYPICAL APPLICATIONS REFERENCE DATA Pluggable Plug - contact up side - Signal Pitch 5.00mm (.197”) / 5.08mm (.200”) PART NUMBERS FEATURES Robust and solid design Modular system,...

Open the catalog to page 7

8 www.fci.com/terminalblocks Terminal Blocks, Pluggable PRODUCT TECHNICAL DATA PHYSICAL Housing: PA66 Thermoplastic resin Housing color: Green Flammability: UL94V-0 Terminal material: PhBz, Tin plated Clamp material: Brass, Nickel plated Screw material: Steel, Zinc plated RoHs compatible MECHANICAL PERFORMANCE Durability: 200 cycles Insertion force: 5.5 Newton Max. Withdrawal force: 1.0 Newton Min. PACKAGING Standard: box TYPICAL APPLICATIONS REFERENCE DATA Pluggable Plug - contact down side - Power Pitch 7.62mm (.300”) MATING DATA Pluggable socket STR TMT 7.62mm - mpn 20020 620 Pluggable socket...

Open the catalog to page 8

9 www.fci.com/terminalblocks Terminal Blocks, Pluggable PRODUCT TECHNICAL DATA PHYSICAL Housing: PA66 Thermoplastic resin Housing color: Green Flammability: UL94V-0 Terminal material: Brass, Tin plated RoHs compatible MECHANICAL PERFORMANCE Durability: 200 cycles Insertion force: 5.5 Newton Max. Withdrawal force: 1.0 Newton Min. PACKAGING Standard: box TYPICAL APPLICATIONS REFERENCE DATA Pluggable Socket - straight - Signal Pitch 3.50mm (.138”) / 3.81mm (.150”) PART NUMBERS FEATURES Robust and solid design Modular system, 2 up to 24 pos. Straight socket Signal Latching feature, no mis-match End-to-end...

Open the catalog to page 9

10 www.fci.com/terminalblocks Terminal Blocks, Pluggable PRODUCT TECHNICAL DATA PHYSICAL Housing: PA66 Thermoplastic resin Housing color: Green Flammability: UL94V-0 Terminal material: Brass, Tin plated RoHs compatible MECHANICAL PERFORMANCE Durability: 200 cycles Insertion force: 5.5 Newton Max. Withdrawal force: 1.0 Newton Min. PACKAGING Standard: box TYPICAL APPLICATIONS REFERENCE DATA Pluggable Socket - straight - Signal Pitch 5.00mm (.197”) / 5.08mm (.200”) PART NUMBERS FEATURES Robust and solid design Modular system, 2 up to 24 pos. Straight socket Signal Latching feature, no mis-match...

Open the catalog to page 10

11 www.fci.com/terminalblocks Terminal Blocks, Pluggable PRODUCT TECHNICAL DATA PHYSICAL Housing: PA66 Thermoplastic resin Housing color: Green Flammability: UL94V-0 Terminal material: Brass, Tin plated RoHs compatible MECHANICAL PERFORMANCE Durability: 200 cycles Insertion force: 5.5 Newton Max. Withdrawal force: 1.0 Newton Min. PACKAGING Standard: box TYPICAL APPLICATIONS REFERENCE DATA Pluggable Socket - straight - Power Pitch 7.62mm (.300”) PART NUMBERS FEATURES Robust and solid design Modular system, 2 up to 16 pos. Straight socket Power Latching feature, no mis-match End-to-end stackable...

Open the catalog to page 11

12 www.fci.com/terminalblocks Terminal Blocks, Pluggable PRODUCT TECHNICAL DATA PHYSICAL Housing: PA66 Thermoplastic resin Housing color: Green Flammability: UL94V-0 Terminal material: Brass, Tin plated RoHs compatible MECHANICAL PERFORMANCE Durability: 200 cycles Insertion force: 5.5 Newton Max. Withdrawal force: 1.0 Newton Min. PACKAGING Standard: box REFERENCE DATA Pluggable Socket - right angle - Signal Pitch 3.50mm (.138”) / 3.81mm (.150”) PART NUMBERS FEATURES Robust and solid design Modular system, 2 up to 24 pos. Right angle socket Signal Latching feature, no mis-match End-to-end stackable...

Open the catalog to page 12
