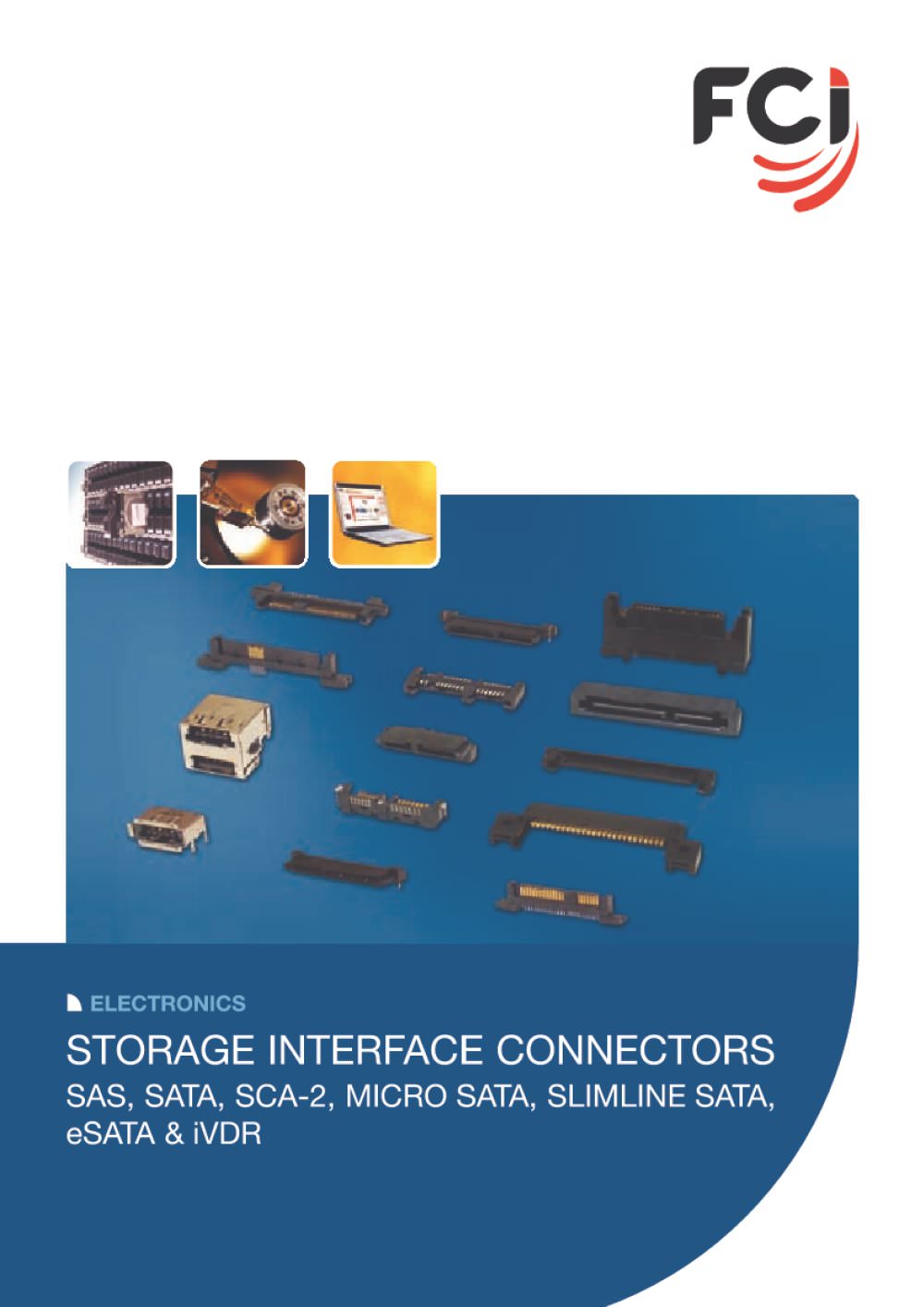

Storage Interface Brochure
20Pages

INTRODUCTION FCJ offers a wxJe range of connector options to support the imptementabon of industry-standard Interfaces between hard disk drives (HDDs) and the backplanes or drtve carrier commonly used in enterprise storage applications in servers and storage Systems. FCI boards long been recognized as a leading supplier of device plugs to the HDD industry. This has brochure hlghllghts FCIs complementary offerlng of rceptacle connectors for use In the enterprise Systems il va employ Sriai Attached SCSI (SAS), S驩riai ATA (S ATA), or FibreChannel drives for data storage. The SAS connectors...

SERIAL-ATTACHED SCSI (SAS) CONNECTORS SERIAL-ATTACHED SCSI (SAS) CONNECTORS DESCRIPTION The 29-position, SAS rceptacle and plug connectons enable the implementation of the high-speed. Sriai Attached SCSI (SAS) hard dsk drive (HDD) interface that is reptacing the SCSI drive connection ri enterprise storage applications in servers and storage Systems. The SAS connecter System is designed to support hot plugging and blind maling ot HDDs. Staggered contact lengths provide sequential mating of contacts to enable hot plugging. Molded guide posts provide angled lead-in to compensale for connector...

SERIAL-ATTACHED SCSI (SAS) CONNECTORS SAS HEADERS FEATURES & BENEFITS For high speed sriai storage Interface of up to 6Gb/s b Intended for interposer or port selector assemblies in removable HDD carriers Surface mount (SMT) ermination vertical connector positions the port selector PCB assembly perpendtcular to the device plug on the HDD, which may be preferred with a 3.5-inch hard drive Right-angle connector allows the PCB assembly to be positioned in a plane that is parallel to the device plug on the HDD, which enables the use of a larger PCB within the smaller 2.5-inch drive form factor....

SERIAL-ATTACHED SCSI (SAS) CONNECTORS TECHNICAL INFORMATION MATERIALS Contact base mtal: copper alloy ■fc Contact area finish: gold over nickel Solder area finish: tin over nickel Retalner clip base mtal: copper alloy Retainer finish: tin over nickel Housing: high-temp驩rature thermoplastic (UL 94V-0); cotor: black ENVIRONMENTAL Humidity: 96 hours at 40°C with 90-95% relative humidity. Per EIA 364-31, Method II, test condition A Temprature llfe: 85°C for 500 hours. Per EIA 364-17, test condition III, method A Thermal shock: 10 cycles between -55°C and +85°C. Per EIA 364-32, test condition I....

SERIAL-ATA (SATA) CONNECTORS SERIAL-ATA (SATA) CONNECTORS DESCRIPTION The 22-positjon, rceptacle and plug connectors enable the imptementation of the new high-speed, Sriai ATA (SATA) hard disk drive (HDD) interface that is extendrig the use of low-cost, high-capacity SATA drives to low-end enterprise storage applications ri servers and storage Systems. The backplane r驩ceptacle accepts a SATA drive, but is keyed to block Ihe installation of a Sriai-Attached SCSI (SAS) drive. The SATA connecor system is designed for hol plugglng and blind maling o( HDDs. Staggered contact lengths provkte...

SERIAL-ATA (SATA) CONNECTORS FEATURES & BENEFITS Ih For high speed sriai storage Interface of up to 6Gb/s "Typically used for storage backplane or HDD carrier applications °頠Options for through-hole solder, press fit, or surface rnount (SMT) termination allow engi- neers to setect the termination technique best suited to their design Base Number Termination Type Other Features 10017660V thru-hole, in-line with forklock/harpoon retainers 2 layout option at power (15P) : in-line or staggered 10022676 V press-fit, in-Bne with forklock/harpoon retainers 2 layout option al power (15P) : In-line...

SERIAL-ATA (SATA) CONNECTORS SATA HEADERS FEATURES & BENEFITS For high speed sriai storage Interface of up to 6Gb/s Application for interposer /adapter card optical disk drive Surface mount (SMT) termination With molded posts for past orientation For 7 Position, avaiiable In 3 or 4 wall Base Number Position Termination Type Orientation Other Features 10039651 22 SMT Right-Angle with forklocks 10101788/ 22 SMT RI g ht-An g le with solder tab retainers 59334 7 SMT Vertical With molded posts with options of mtal clips or through-hole blade retainets.ck retainers 10035691 7 SMT Vertical 4-Wall...

SCA-2 CONNECTOR SYSTEM SCA-2 CONNECTOR SYSTEM DESCRIPTION The SCA-2 (Single Connect Attachment-2) connector syslem consisis of device piugs and vertical rceptacles Ihal enable the hard disk drive (HDD) to backplane interface in enterprise storage Systems. The device ptug rsides on the HDD, while the r驩ceptacle is attached to the backplane. 40-position backplane rceptacles are designed to accept Rbre Channel drives, while 80-position rceptacles accept SCSI drives. The interface is govemed by the Small Form Factor (SFF) standard SFF-8451. Enhanced SCA-2 r驩ceptacle connectors also conform to...

SCA-2 CONNECTOR SYSTEM TECHNICAL INFORMATION MATERIALS b Contact base mtal: copper alloy Contact area finish: gold or GXT (gold flash over palladium-nickel alloy) over nickel Solder area finish: lin or tin-lead over nickel ESD contact base mtal: copper alkiy ESD contact finish: tin or tin-lead over nickel Housing: high-temperature thermoplastic {UL 94V-0}; cotor: black ELECTRICAL PERFORMANCE Contact r驩sistance: 35mfi maximum tor signal contacts fCurrent rating: 1A/contact minimum tor 2 or 3 powered signal contact pairs with temprature rise not exceeding 30°C MECHANICAL PERFORMANCE...

eSATA CONNECTORS eSATA CONNECTORS DESCRIPTION FCl's eSATA products are aimed at externe! storage applications tha require a singte-lane Sriai ATA cable connection up to approximeteiy two meters in length. The connectors comply with the S響riai ATA Spcification issued by the Sriai ATA International Organization (SATA-IO). A typical application is the connection between a desktop or mobile PC and an externe! storage drive, similar to existing USB or 1394 cable conneclions but at stgnificantly higher data rates. The eSATA connectors support both Gen1 (i.5Gb/s) and Gen2 (3Gb/s) SATA data rates....
