Micro USB Datasheet

Micro USB Datasheet

Product catalog summary

Overview: The document describes Micro-USB connectors designed for the multimedia device market, emphasizing their compliance with USB 2.0 standards and their suitability for various applications due to their small size and high reliability.

Features & Benefits:

Size Reduction: The connectors are approximately 60% smaller than standard Mini-B connectors, supporting high-speed data transfer up to 480Mbps.
Receptacle Styles: Available in B and AB type configurations with mid-mount and reverse mounting styles.
Plug Styles: Suitable for data transmission, earphone, or charging applications.
High Durability: Provides a tactile sensation when fully mated, ensuring reliability.
Compliance: RoHS compliant and halogen-free.

Target Markets & Applications: Mobile phones, PDAs, portable music players, digital cameras, and other devices requiring high-reliability Micro-B interface connectors.

Technical Information:

Materials: Contacts made of copper alloy with gold and nickel plating; housing made of LCP for receptacles and PA6T for plugs.
Environmental: Functional temperature range from -55°C to +85°C.
Electrical Performance: Low-level contact resistance, insulation resistance, dielectric withstanding voltage, and temperature rise specifications are provided.
Mechanical Performance: Mating/un-mating force specifications, durability up to 10,000 cycles, and test conditions are outlined.

Packaging: Available in tape and reel packaging with specific packing specifications.

Specifications: Product specification GS-12-641.

Approvals and Certifications: UL certified and approved by the USB Committee with TID numbers 60001790 and 60001791.

Part Numbers: A list of part numbers with corresponding product descriptions is provided for various Micro-USB configurations.

Catalog excerpts

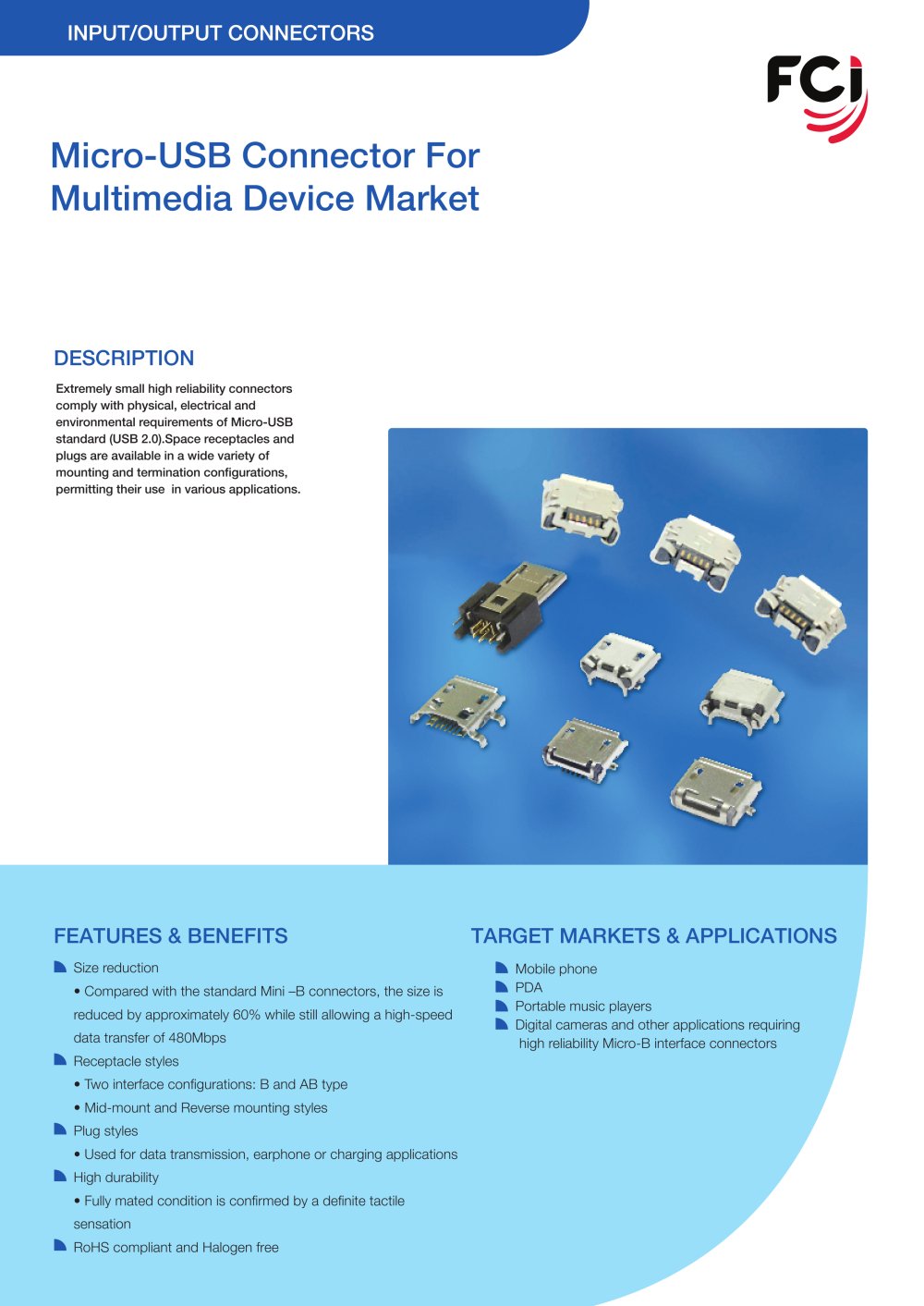

110922-2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Arial", sans-serif; } .font2 { font:21.00pt "Arial", sans-serif; } .font3 { font:39.00pt "Verdana", sans-serif; } INPUT/OUTPUT CONNECTORS FCI Micro-USB Connector For Multimedia Device Market DESCRIPTION Extremely small high reliability connectors comply with physical, electrical and environmental requirements of Micro-USB standard (USB 2.0).Space receptacles and plugs are available in a wide variety of mounting and termination configurations, permitting their use in various applications. FEATURES & BENEFITS ^ Size rduction Compared with the standard Mini -B connectors, the size is reduced by approximately 60% while still allowing a high-speed data transfer of 480Mbps ^ Receptacle styles 镕 Two interface configurations: B and AB type Mid-mount and Reverse mounting styles ^ Plug styles Օ Used for data transmission, earphone or charging applications ^ High durability Fully mated condition is confirmed by a definite tactile sensation ^ RoHS compliant and Halogen free TARGET MARKETS & APPLICATIONS ^ Mobile phone PDA Portable music players Digital cameras and other applications requiring high reliability Micro-B interface connectors

Open the catalog to page 1

110922-2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:21.00pt "Arial", sans-serif; } .font5 { font:5.00pt "Georgia", serif; } .font6 { font:7.00pt "Georgia", serif; } MICRO-USB CONNECTOR FOR MULTIMEDIA DEVICE MARKET TECHNICAL INFORMATION MATERIALS ENVIRONMENTAL Contact : Copper alloy Contact area : 30u" Au over nickel Solder tail area : Au flash over nickel Shield : Stainless steel Pure...

Open the catalog to page 2
