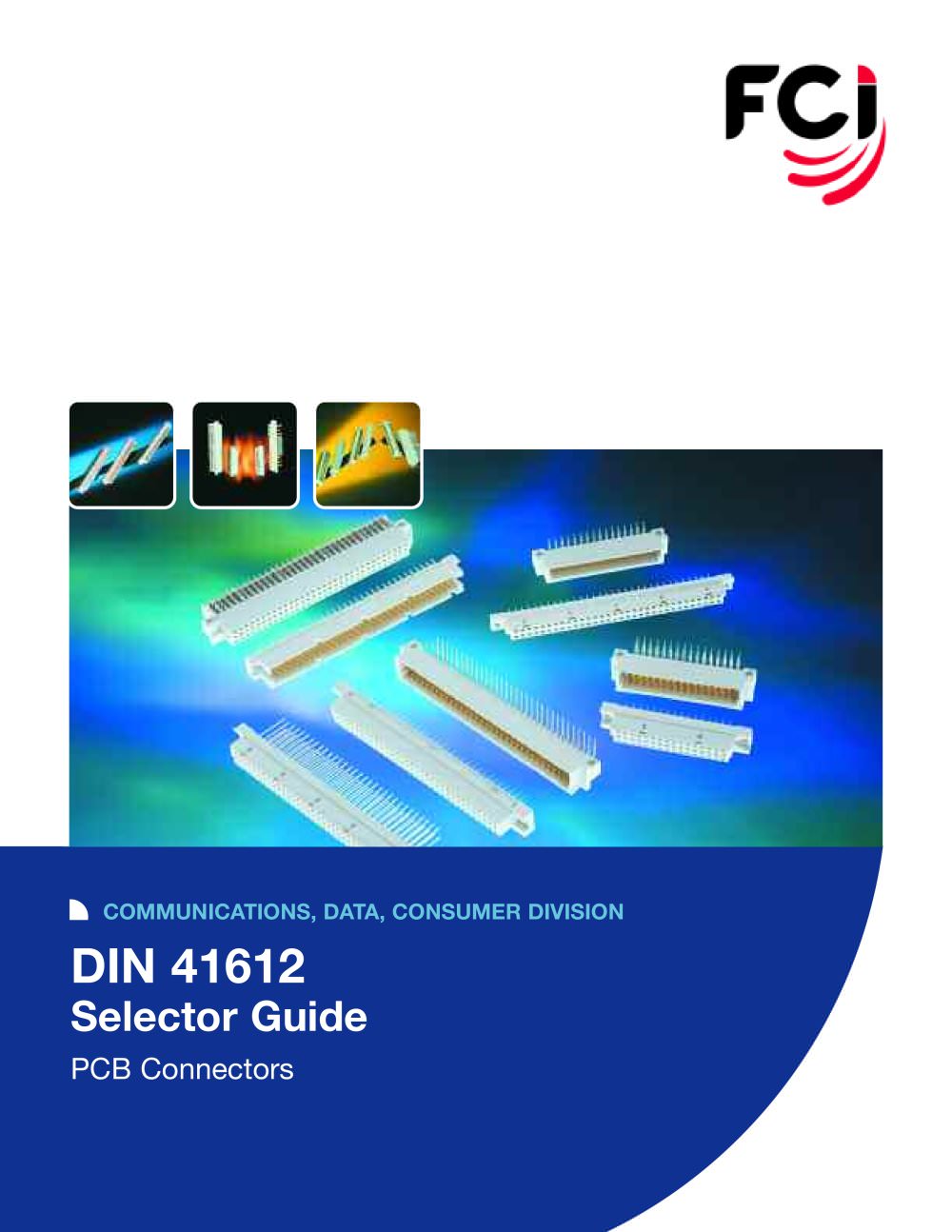

COMMUNICATIONS, DATA, CONSUMER DIVISION DIN 41612 Selector Guide PCB Connectors

2 DIN 41612 FCI: SETTING THE STANDARD FOR CONNECTORS FCI DIN Selector Guide All you want Easy to find With operations in 30 countries, FCI is a leading manufacturer of connectors. Our 13,500 employees are commited to providing customers with high-quality, innovative products for a wide range of consumer and industrial applications. FCI new DIN selector brings together our proven standard connectors, such as signal solder to board, press-fit and power. In addition to the presented products, FCI can provide other options (Selective Loading of Contacts, First Make / Last Break contacts, Harpoons...

3 DIN 41612 Index page • Technical Characteristics for DIN signal connectors 4 • Other DIN product ranges at FCI 5 DIN PCB signal solder to board • Style C (standard format, classical gender) 6 • Style C/2 (half format, classical gender) 7 • Style R (standard format, reversed gender) 8 • Style R/2 (half format, reversed gender) 9 • Style B (2 rows) 10 • Style B/2 (2 rows, half format) 11 DIN PCB signal press-fit • Style C (standard format) 12 • Style R (standard format, reversed gender) 13

4 DIN 41612 Technical Characteristics Performance classes Insulator Material : Polyester Thermoplastic UL 94 V0 Contact Material : Copper Alloy Active zone : Gold over Nickel Contact Plating Termination zone : Matt Tin over Nickel (for RoHS compatible), or Tin-Lead over Nickel (for non RoHS) Current Rating at 20°C : 1.5 A Maximum current : 2 A Temperature Range : -55° C to +125°C Contact Resistance : ² 20 mW Insulation Resistance : ³ 106 MW Test Voltage (rms) : 1000 V Mating insertion force per Contact : ² 0.94 N Mating extraction force per Contact : ³ 0.15 N Press-fit mean insertion force per...

5 DIN 41612 PCB connectors • Signal solder to board – 8609 Series, style Q (headers only) • Mix signal and power or coax solder to board – 8609 Series (headers only) • Mix signal and power or coax press-fit – 8609 Series • Medium power connectors – 5159 Series, style F • High power connectors – 5159 Series, style H Cable connectors • IDC - BPS8 Series • Wire wrap - 8609 Series Accessories • Shrouds • Covers Other DIN product ranges at FCI Check FCI website at www.fciconnect.com/din41612 For more information about these ranges, please contact your local FCI representative.

6 DIN 41612 PCB Signal solder to board Part number Series 8609 396 71 13 7 55 ELF STYLE C CONNECTORS Solder to board Header : Right angle Receptacle : Straight spill Plating performance Class & Pitch * DIN 41612 class III : 2.54 mm 45 DIN 41612 class II : 2.54 mm 55 DIN 41612 class I : 2.54 mm 65 Gender Header (RoHS compatible) ELF Header (non RoHS compatible) 000E Receptacle (RoHS compatible) V1LF Receptacle (non RoHS compatible) V1 * For other options, please consult your local FCI representative. 86093967113755ELF 96 PIN Header right angle 86094647113755ELF 64 PIN Header right angle 86093968114755V1LF...

7 DIN 41612 PCB Signal solder to board Part number Series 8609 348 73 13 7 55 ELF STYLE C/2 CONNECTORS Solder to board Header : Right angle Receptacle : Straight spill Plating performance Class & Pitch * DIN 41612 class III : 2.54 mm 45 DIN 41612 class II : 2.54 mm 55 DIN 41612 class I : 2.54 mm 65 Gender Header (RoHS compatible) ELF Header (non RoHS compatible) 000E Receptacle (RoHS compatible) E1LF Receptacle (non RoHS compatible) 000E1 * For other options, please consult your local FCI representative. 86093487313755ELF 48 PIN Header right angle 86094327313755ELF 32 PIN Header right angle 86093488314755E1LF...

8 DIN 41612 PCB Signal solder to board 86094648813755V1LF 64 PIN Receptacle right angle 86093968813755V1LF 96 PIN Receptacle right angle Part number Series 8609 396 88 13 7 55 V1LF STYLE R CONNECTORS Solder to board Header : Straight spill Receptacle : Right angle Plating performance Class & Pitch * DIN 41612 class III : 2.54 mm 45 DIN 41612 class II : 2.54 mm 55 DIN 41612 class I : 2.54 mm 65 Gender Header (RoHS compatible) ELF Header (non RoHS compatible) 000E Receptacle (RoHS compatible) V1LF Receptacle (non RoHS compatible) V1 * For other options, please consult your local FCI representative....

9 DIN 41612 PCB Signal solder to board 86093488613755E1LF 48 PIN Receptacle right angle 86093488613H55E1LF 48 PIN Receptacle right angle harpoon Part number Series 8609 348 76 14 7 55 ELF STYLE R/2 CONNECTORS Solder to board Header : Straight spill Receptacle : Right angle Plating performance Class & Pitch * DIN 41612 class III : 2.54 mm 45 DIN 41612 class II : 2.54 mm 55 DIN 41612 class I : 2.54 mm 65 Gender Header (RoHS compatible) ELF Header (non RoHS compatible) 000E Receptacle (RoHS compatible) E1LF Receptacle (non RoHS compatible) 000E1 * For other options, please consult your local FCI...

10 DIN 41612 PCB Signal solder to board 86092645113755ELF 64 PIN Header right angle 86092646114755E1LF 64 PIN Receptacle straight Part number Series 8609 264 51 13 7 55 ELF STYLE B CONNECTORS Solder to board 2 rows Header : Right angle Receptacle : Straight spill Plating performance Class & Pitch * DIN 41612 class III : 2.54 mm 45 DIN 41612 class II : 2.54 mm 55 DIN 41612 class I : 2.54 mm 65 Gender Header (RoHS compatible) ELF Header (non RoHS compatible) 000E Receptacle (RoHS compatible) E1LF Receptacle (non RoHS compatible) 000E1 * For other options, please consult your local FCI representative....

11 DIN 41612 PCB Signal solder to board Part number Series 8609 232 53 13 7 55 ELF STYLE B/2 CONNECTORS Solder to board 2 rows Header : Right angle Receptacle : Straight spill Plating performance Class & Pitch * DIN 41612 class III : 2.54 mm 45 DIN 41612 class II : 2.54 mm 55 DIN 41612 class I : 2.54 mm 65 Gender Header (RoHS compatible) ELF Header (non RoHS compatible) 000E Receptacle (RoHS compatible) E1LF Receptacle (non RoHS compatible) 000E1 * For other options, please consult your local FCI representative. J JJ J J J Termination * Right angle spill for Header : 3 mm 13 Straight spill for...
