D-Subminiatures Connectors & Accessories
D-Subminiatures Connectors & Accessories
- PCB Connectors: Available in standard and high-density options, with solder-to-board, press-fit, and pin-in-paste configurations.
- Cable Connectors: Options include solder bucket, crimp, IDC for flat cables, and metal and plastic hoods.
- PCB Applications: Standard applications are supported.
- Cable Applications: Standard applications are supported.
- Machined signal contacts for demanding applications.
- Solutions for severe environment applications.
- Delta D Series: Available in solder-to-board, press-fit, and pin-in-paste configurations.
- DW Series: Full power press-fit and mixed power solder-to-board options.
- DP Series: Right angle and straight solder-to-board and wire-wrap options.
- DM Series: Right angle and straight configurations.
- DMW Series: Right angle and straight configurations.
- Includes hoods, locking devices, caps, brackets, and various series for solder bucket and crimp applications.
Catalog excerpts

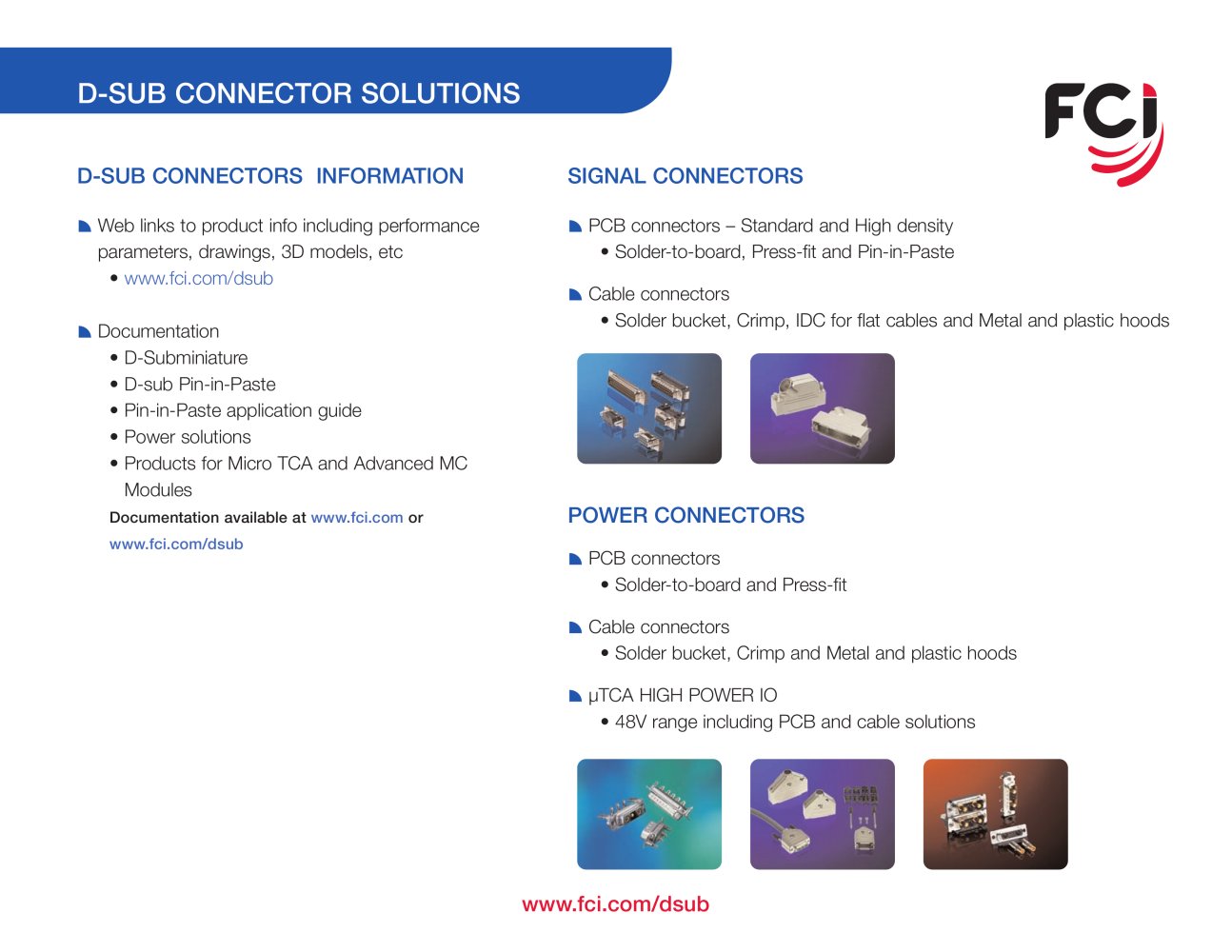

D-SUB CONNECTOR SOLUTIONS Web links to product info including performance parameters, drawings, 3D models, etc • www.fci.com/dsub Documentation • D-Subminiature • D-sub Pin-in-Paste • Pin-in-Paste application guide • Power solutions • Products for Micro TCA and Advanced MC Modules Documentation available at www.fci.com or www.fci.com/dsub PCB connectors – Standard and High density • Solder-to-board, Press-fit and Pin-in-Paste Cable connectors • Solder bucket, Crimp, IDC for flat cables and Metal and plastic hoods PCB connectors • Solder-to-board and Press-fit Cable connectors • Solder bucket, Crimp and Metal and plastic hoods ìTCA HIGH POWER IO • 48V range including PCB and cable solutions D-SUB CONNECTORS INFORMATION SIGNAL CONNECTORS POWER CONNECTORS www.fci.com/dsub
Open the catalog to page 1
D-SUB CONNECTOR SOLUTIONS PCB Applications • Standard Applications Cable Applications • Standard Applications www.fci.com/dsub Demanding applications : machined signal contacts Severe environment applications Signal standard density Signal high density Right angle Straight D series also available (Design with two shells) Power Signal Signal Power Right angle Straight • Solder to board: Delta D • Press-fit: Delta D • Pin-in-Paste: Delta D • Solder to board: Delta D • Press-fit: Delta D • Pin-in-Paste: Delta D • Solder to board • Press-fit • Solder to board - Full & mixed power: Delta D DW series...
Open the catalog to page 2All FCI catalogs and technical brochures
