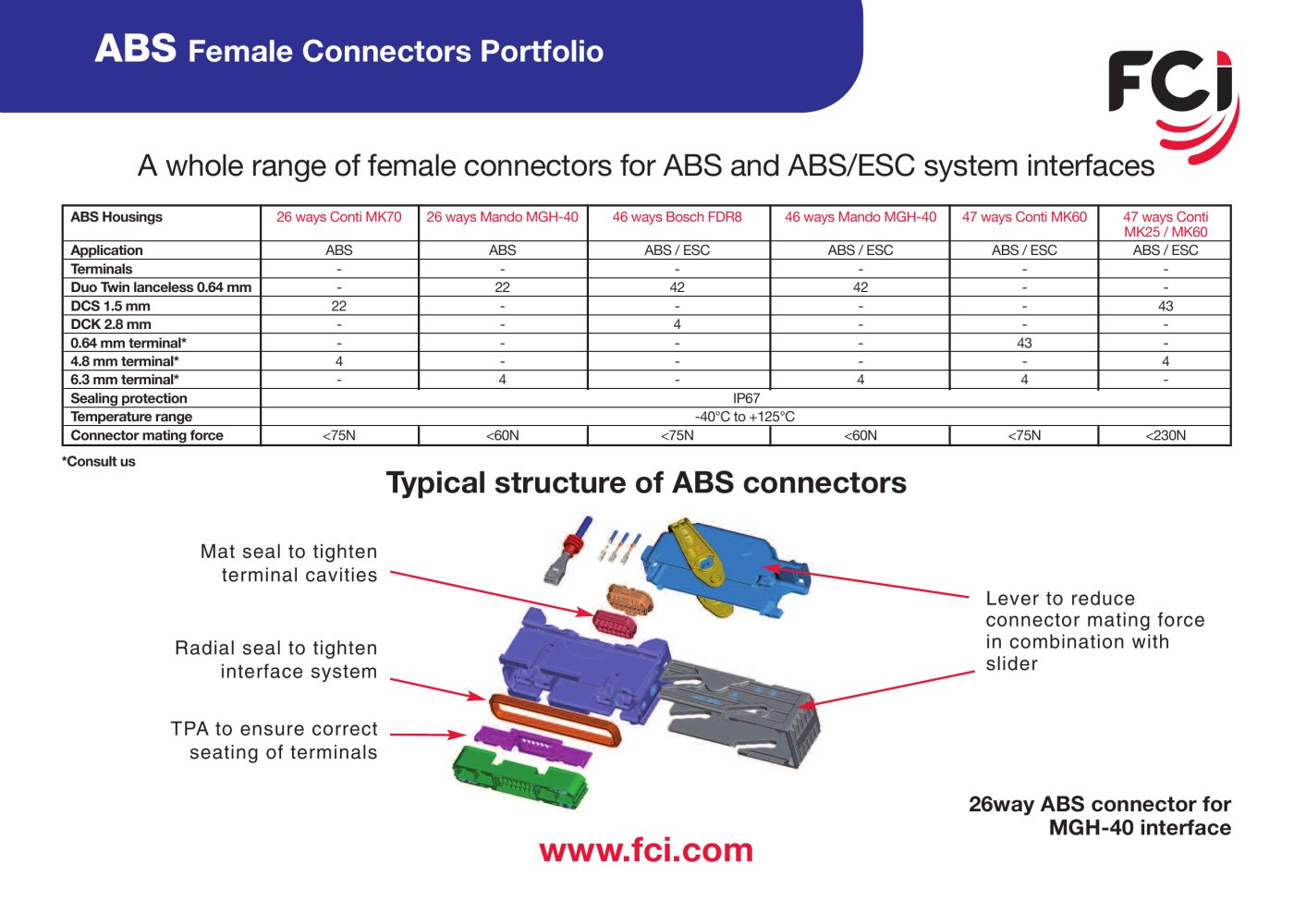

ABS Female Connectors Portfolio A whole range of female connectors for ABS and ABS/ESC system interfaces Typical structure of ABS connectors www.fci.com Lever to reduce connector mating force in combination with slider Mat seal to tighten terminal cavities Radial seal to tighten interface system TPA to ensure correct seating of terminals 26way ABS connector for MGH-40 interface ABS Housings 26 ways Conti MK70 26 ways Mando MGH-40 46 ways Bosch FDR8 46 ways Mando MGH-40 47 ways Conti MK60 47 ways Conti MK25 / MK60 Application ABS ABS ABS / ESC ABS / ESC ABS / ESC ABS / ESC Terminals - - - - - - Duo Twin lanceless 0.64 mm - 22 42 42 - - DCS 1.5 mm 22 - - - - 43 DCK 2.8 mm - - 4 - - - 0.64 mm terminal* - - - - 43 - 4.8 mm terminal* 4 - - - - 4 6.3 mm terminal* - 4 - 4 4 - Sealing protection IP67 Temperature range -40°C to +125°C Connector mating force <75N <60N <75N <60N <75N <230N *Consult us
Open the catalog to page 1www.fci.com ABS Female Connectors Sample kit content 47way ABS/ESC for Conti MK60 interface 26way ABS for Conti MK70 interface 47way ABS/ESC for Conti MK25/MK60 interface 46way ABS/ESC for Mando MGH-40 interface 46way ABS/ESC for Bosch FDR8 interface Other ABS housings are available on our website 26way ABS for Mando MGH-40 interface Contact us for corresponding headers
