1.25mm Wire-To-Board System

1.25mm Wire-To-Board System

Product catalog summary

Description: The FCI 1.25mm pitch wire-to-board connector series is designed for diverse applications in industrial, automotive, and consumer sectors. It includes terminals, crimp housings, and PCB headers available in various configurations, supporting 2 to 15 circuits, with an extension up to 20 positions.

Features & Benefits: The connectors conform to EU Industry Safety Standards and are halogen-free. They operate within a temperature range of -40°C to +105°C, with plating options of gold flash or tin. The crimping housing is polarized to prevent mis-mating and includes friction locks for secure retention. The system is RoHS compliant and UL approved, with packaging suitable for SMT production.

Target Markets & Applications: The connectors are suitable for industrial, automotive, and consumer applications.

Technical Information: The connectors feature copper alloy contacts with matt tin or gold flash plating over nickel. The housing is made from thermoplastic materials, meeting UL94V-0 standards. Electrical performance includes a contact resistance of 20mΩ maximum, insulation resistance of 100MΩ minimum, and a voltage rating of 125 Volts AC/DC. They withstand reflow soldering heat and hand soldering heat, conforming to various EIA standards for thermal shock, humidity, temperature life, and salt spray.

Mechanical Performances: The connectors conform to EIA standards for mating and un-mating force, contact retention, housing retention, wire retention, vibration, shock, and durability, supporting up to 30 cycles.

Specifications: Product specifications include GS-12-675, with packaging specifications GS-14-1592 and GS-14-1593. Approvals include RoHS compliance and UL approval, with housing connectors conforming to IEC 60695-2 Industry Safety Standard.

Part Numbers & Packaging: Part numbers vary based on configuration, plating, and packaging, with options for SMT and through-hole headers, bulk or tape and reel packaging, and lead-free materials.

Catalog excerpts

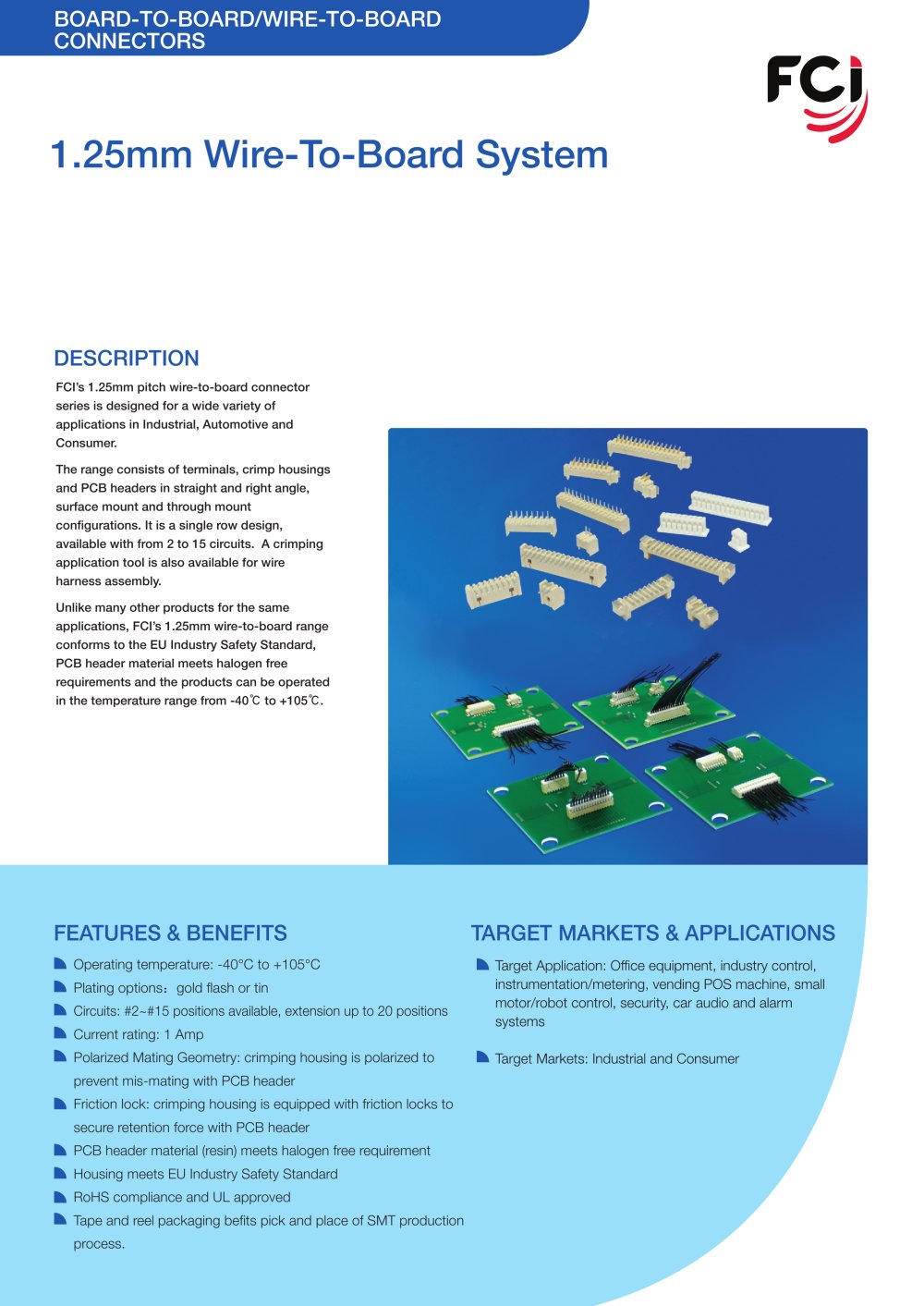

110922-2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:13.00pt "Arial", sans-serif; } .font3 { font:25.00pt "Arial", sans-serif; } BOARD-TO-BOARD/WIRE-TO-BOARD CONNECTORS 1.25mm Wire-To-Board System DESCRIPTION FCI's 1.25mm pitch wire-to-board connector sries is designed for a wide variety of applications in Industrial, Automotive and Consumer. The range consists of terminais, crimp housings and PCB headers in straight and right angle, surface mount and through mount configurations. It is a single row design, available with from 2 to 15 circuits. A crimping application tool is also available for wire harness assembly. Unlike many other products for the same applications, FCI's 1.25mm wire-to-board range conforms to the EU Industry Safety Standard, PCB header material meets halogen free requirements and the products can be operated in the temperature range from -40 °C to +105°C. FEATURES & BENEFITS TARGET MARKETS & APPLICATIONS Operating temperature: -40°C to +105°C Plating options: gold flash or tin Circuits: #2~#15 positions available, extension up to 20 positions Current rating: 1 Amp Polarized Mating Geometry: crimping housing is polarized to prevent mis-mating with PCB header Friction lock: crimping housing is equipped with friction locks to secure retention force with PCB header PCB header material (resin) meets halogen free requirement Housing meets EU Industry Safety Standard RoHS compliance and UL approved Tape and reel packaging befits pick and place of SMT production process. Target Application: Office equipment, industry control, instrumentation/metering, vending POS machine, small motor/robot control, security, car audio and alarm Systems Target Markets: Industrial and Consumer
