120Gbit/s CXP-CXP AOC

120Gbit/s CXP-CXP AOC

1 / 2 PagesView full catalog

120Gbit/s CXP-CXP AOC

Product catalog summary

Features:

Full Duplex 12 Channel 850nm Parallel Active Optical Cable supporting up to 10.3Gbit/s per channel.
CXP-based Small Form-factor hot pluggable interface with Rx Pre-Emphasis support.
EEPROM-based Serial-ID accessible via two-wire Serial Interface.
Includes 12-channel 850nm VCSEL and PIN-detector arrays.
Helix type 24-fiber Multi-Mode Optical cable up to 50m, fire-resistant OFNP rated.
Low power consumption of 2.2 Watts (typical), Power class 4.
Operating temperature range from 0°C to +70°C.
Compliant with Laser Class 1 IEC/CDRH and RoHS 6/6.
Angled boot cable exit option available.

Applications:

Infiniband transmission at 12x SDR, 12x DDR, and 12x QDR.
Multi-channel 10GE transmission up to 12 channels.

Supported Standards:

120Gbit/s Small Form-factor Hot-Pluggable CXP-interface.

Ordering Information:

Various lengths available for CXP-CXP cable with straight or angled boot cable exit, ranging from 5 to 50 meters.

Catalog excerpts

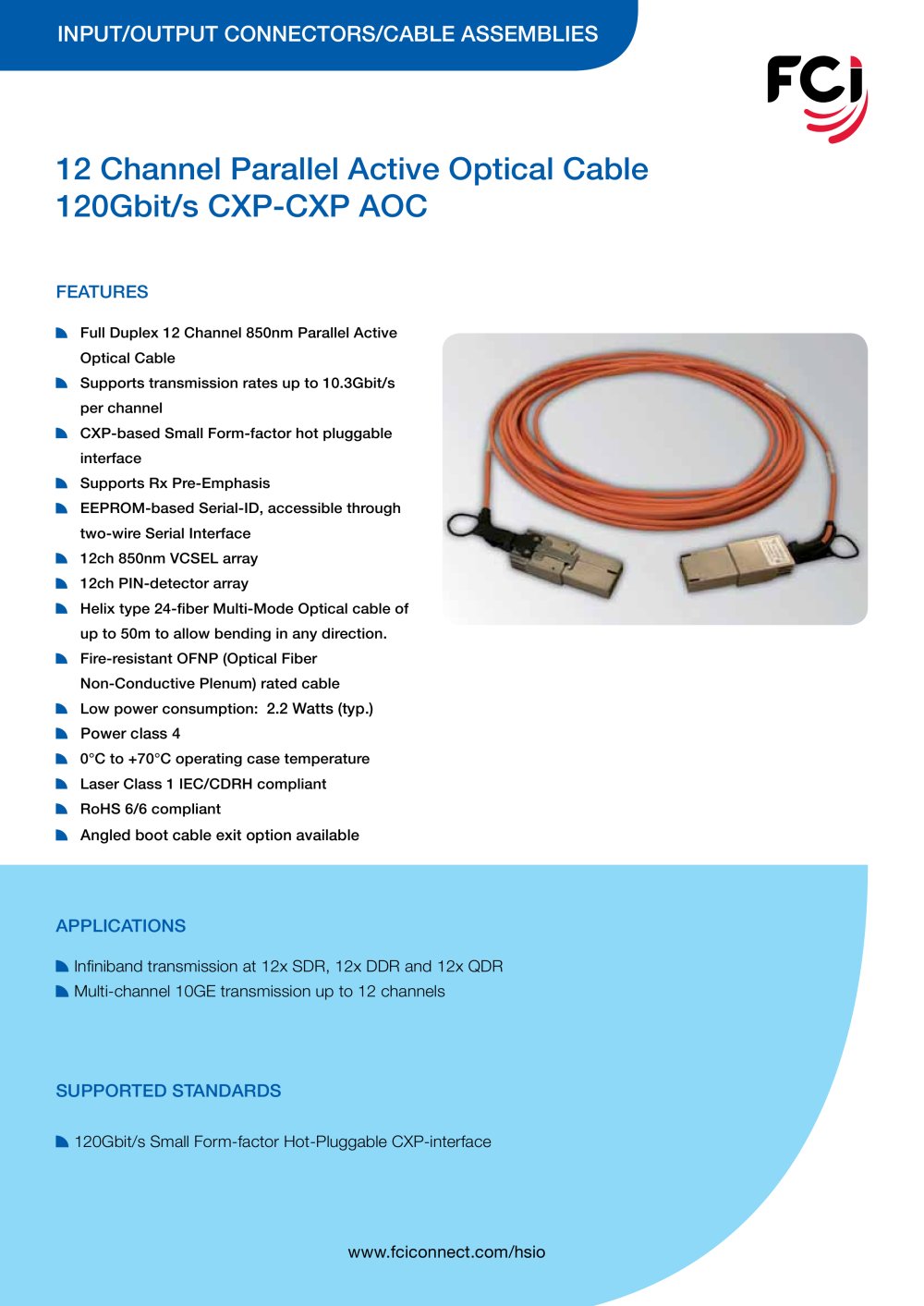

110922-2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:10.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:18.00pt "Arial", sans-serif; } INPUT/OUTPUT CONNECTORS/CABLE ASSEMBLIES 12 Channel Parallel Active Optical Cable 120Gbit/s CXP-CXP AOC FEATURES Full Duplex 12 Channel 850nm Parallel Active Optical Cable Supports transmission rates up to 10.3Gbit/s per channel CXP-based Small Form-factor hot pluggable interface Supports Rx Pre-Emphasis EEPROM-based Serial-ID, accessible through two-wire Serial Interface 12ch 850nm VCSEL array 12ch PIN-detector array Helix type 24-fiber Multi-Mode Optical cable of up to 50m to allow bending in any direction. Fire-resistant OFNP (Optical Fiber Non-Conductive Plenum) rated cable Low power consumption: 2.2 Watts (typ.) Power class 4 0°C to +70°C operating case temperature Laser Class 1 IEC/CDRH compliant RoHS 6/6 compliant Angled boot cable exit option available APPLICATIONS Infiniband transmission at 12x SDR, 12x DDR and 12x QDR Multi-channel 10GE transmission up to 12 channels SUPPORTED STANDARDS 120Gbit/s Small Form-factor Hot-Pluggable CXP-interface www.fciconnect.com/hsio

Open the catalog to page 1

Open the catalog to page 2
