10GBd SFP+ 1310nm Limiting Transceivers datasheet

10GBd SFP+ 1310nm Limiting Transceivers datasheet

Product catalog summary

Applications
The TRX10GDP0310C1 transceiver is designed for 10G Ethernet applications, specifically 10GBASE-LR/LW, and is compliant with SFP+ MSA specifications (SFF-8431 and SFF-8432) and IEEE 802.3ae standards. It is also RoHS 6/6 compliant and meets laser class 1 safety standards, making it suitable for high port density system designs due to its low power consumption and excellent EMI performance.

Supported Standards

10G Ethernet LAN: IEEE 802.3ae 10GBASE-LR at 10.3125GBd
10G Ethernet WAN: IEEE 802.3ae 10GBASE-LW at 9.95328GBd

Features & Benefits

Compliance with SFP+ Electrical MSA SFF-8431 and Mechanical MSA SFF-8432
Data rate transparency from 9.95Gbps to 11.3Gbps
Support for I2C for serial transceiver ID and digital diagnostic monitoring per SFF-8472
Transmission distance up to 10km using SM fiber
Low power consumption of 0.8W (typical)
Operating temperature range from 0°C to +70°C
Laser Class 1 IEC/CDRH compliance
RoHS 6/6 compliance

Ordering Information
The transceiver is available under the part number TRX10GDP0310C1 for both 10G Ethernet LAN and WAN applications.

Contact Information
Europe: FCI Deutschland GmbH, Wernerwerkdamm 16, 13629 Berlin, Germany. Phone: +49 30 750 795 00
Americas: MergeOptics, 1551 McCarthy Blvd, Suite 116, Milpitas, CA 95035 USA. Phone: 408-493-9970
For more information, visit www.fciconnect.com/hsio

Catalog excerpts

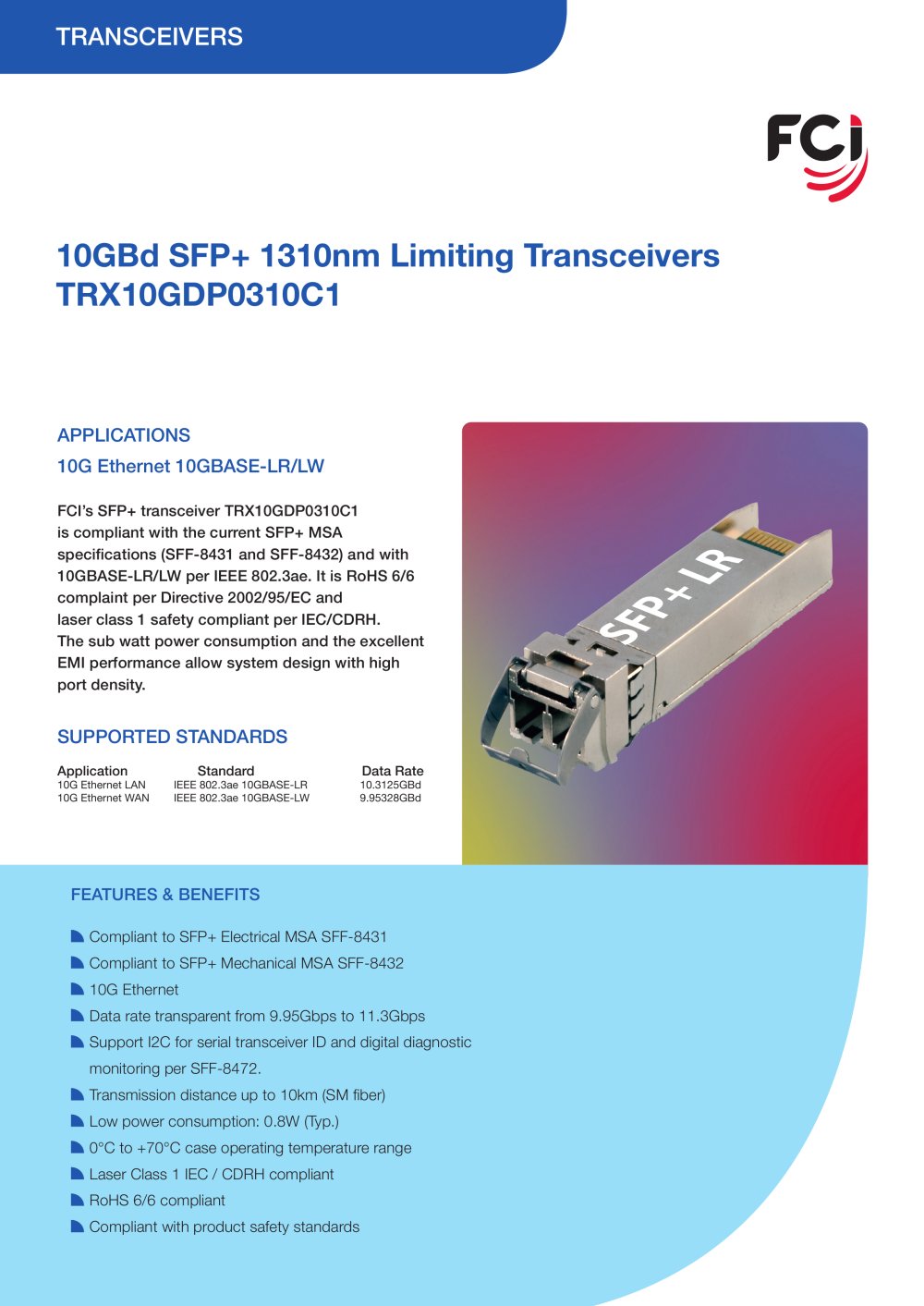

10GBd SFP+ 1310nm Limiting Transceivers datasheet-1

110922-2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:11.00pt "Arial", sans-serif; } .font4 { font:15.00pt "Arial", sans-serif; } .font5 { font:21.00pt "Arial", sans-serif; } .font6 { font:39.00pt "Verdana", sans-serif; } TRANSCEIVERS FCi, 10GBd SFP+ 1310nm Limiting Transceivers TRX10GDP0310C1 APPLICATIONS 10G Ethernet 10GBASE-LR/LW FCI's SFP+ transceiver TRX10GDP0310C1 is compliant with the current SFP+ MSA specifications (SFF-8431 and SFF-8432) and with 10GBASE-LR/LW per IEEE 802.3ae. It is RoHS 6/6 complaint per Directive 2002/95/EC and laser class 1 safety compliant per IEC/CDRH. The sub watt power consumption and the excellent EMI performance allow system design with high port density. SUPPORTED STANDARDS Application Standard Data Rate 10G Ethernet LAN IEEE 802.3ae 10GBASE-LR 10.3125GBd 10G Ethernet WAN IEEE 802.3ae 10GBASE-LW 9.95328GBd FEATURES & BENEFITS Compliant to SFP+ Electrical MSA SFF-8431 Compliant to SFP+ Mechanical MSA SFF-8432 10G Ethernet Data rate transparent from 9.95Gbps to 11.3Gbps Support I2C for serial transceiver ID and digital diagnostic monitoring per SFF-8472. Transmission distance up to 10km (SM fiber) Low power consumption: 0.8W (Typ.) 0°C to +70°C case operating temperature range Laser Class 1 IEC / CDRH compliant RoHS 6/6 compliant Compliant with product safety standards

Open the catalog to page 1

10GBd SFP+ 1310nm Limiting Transceivers datasheet-2

110922-2 table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } .font4 { font:32.00pt "Arial", sans-serif; } 10GBd SFP+ 1310nm Limiting Transceivers TRX10GDP0310C1 FCi, MODULE OUTLINE o 34,60 All dimensions shown are in millimeters. 41,75 45 ORDERING INFORMATION Application Standard Part Number 10G Ethernet LAN IEEE 802.3ae 10GBASE-LRT TRX10GDP0310C1 10G Ethernet WAN IEEE 802.3ae 10GBASE-LWT TRX10GDP0310C1 EUROPE...

Open the catalog to page 2
