Viajet 5U

Product catalog summary

Introduction
The VIAJET 5U is a versatile sweeper developed by FAUN to complement the Unimog U400 base unit. This combination offers a robust and flexible solution for cleaning roads, paths, and squares with high performance and efficiency.

Specifications
The VIAJET 5U features a large blower and a straight airflow design for maximum suction performance. It includes a special V-shaped suction head for optimal sweeping results, especially effective for loose chippings. The body capacity is 5 m³, with a water tank capacity of 1,000 liters. The sweeping device includes a 550 mm suction nozzle and a 750 mm right gutter disc brush.

Operational Features
The sweeper is designed for easy operation with individually controllable sweeping assemblies from a central console. It allows for pre-selection of water consumption, brush speed, and application pressure, simplifying the operation process.

Accessories and Options
The VIAJET 5U offers various accessory options to enhance its versatility, including a high-pressure lance, a telescoping front-mounted disc brush, and a hand suction device. Additional features include a rear view monitor for safety, support legs for container changeover, and sound insulation mats for noise reduction.

Technical Data
The recommended chassis is the DaimlerChrysler U400 with a G.V.W. of 12.5 tons. The vehicle dimensions include a length of approximately 5,620 mm, a height of 2,880 mm, and a width of 2,150 mm. The empty weight is approximately 8,740 kg with a payload capacity of 3,760 kg.

Conclusion
The VIAJET 5U is a multi-talented sweeper offering high performance and flexibility for various cleaning tasks. Its design and accessory options make it suitable for a wide range of applications, ensuring efficient and effective cleaning operations.

Catalog excerpts

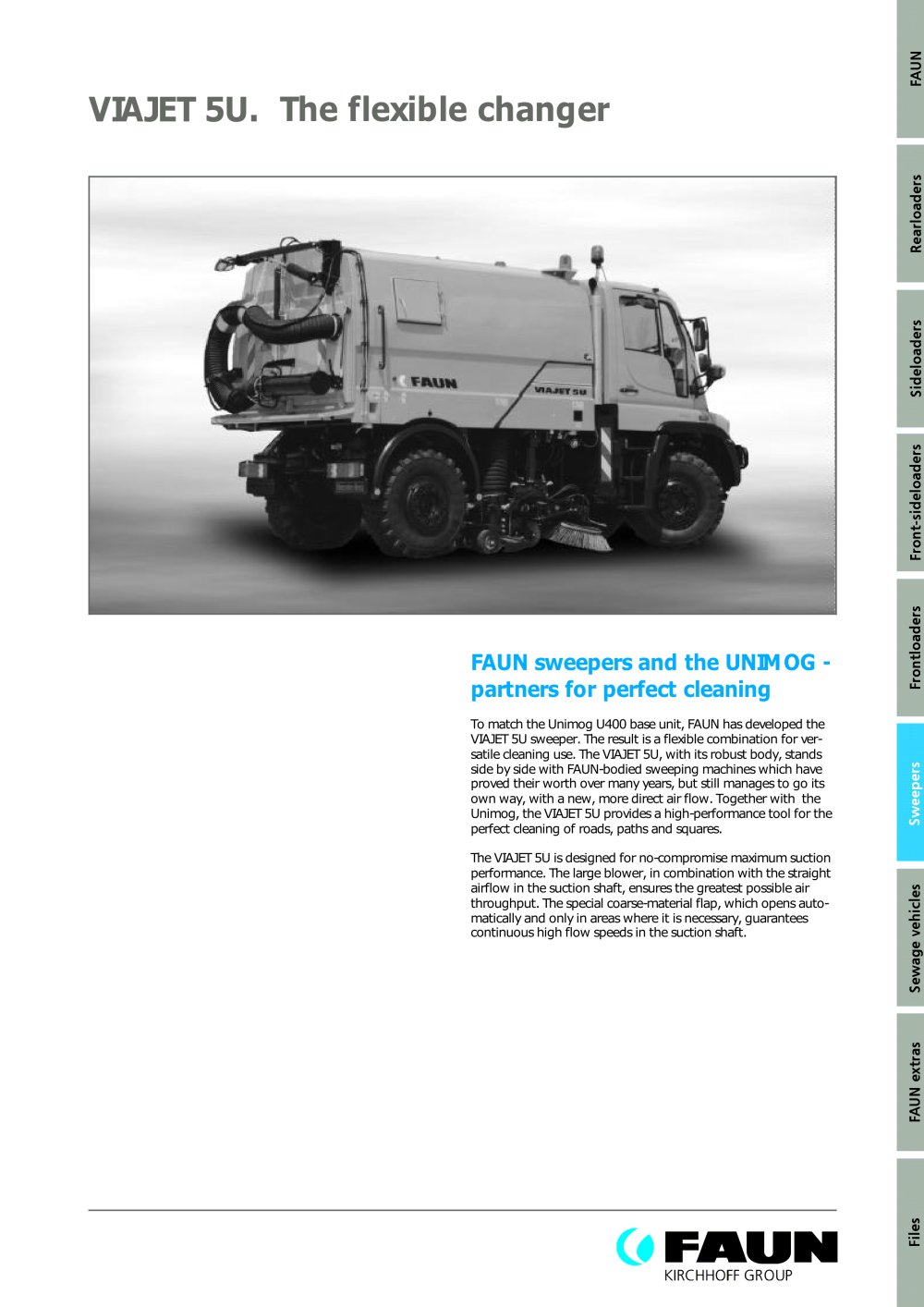

FAUN sweepers and the UNIMOG - partners for perfect cleaning > To match the Unimog U400 base unit, FAUN has developed theVIAJET 5U sweeper. The result is a flexible combination for ver-satile cleaning use. The VIAJET 5U, with its robust body, standsside by side with FAUN-bodied sweeping machines which haveproved their worth over many years, but still manages to go itsown way, with a new, more direct air flow. Together with theUnimog, the VIAJET 5U provides a high-performance tool for theperfect cleaning of roads, paths and squares.The VIAJET 5U is designed for no-compromise maximum suctionperformance. The large blower, in combination with the straightairflow in the suction shaft, ensures the greatest possible airthroughput. The special coarse-material flap, which opens auto-matically and only in areas where it is necessary, guaranteescontinuous high flow speeds in the suction shaft. size="-1">

Open the catalog to page 1

The VIAJET 5U has a special V-shaped suction head, whichbecause of its shape deflects the swept material directly into thecentre of the suction flow. Optimal results are thereforeachieved, even in the difficult task of sweeping loose chippings. > The proven concept of individually operable sweeping assembliestaken from the large FAUN sweeping machines also allows,despite the compact dimensions, a sweeping width and poweroutput formerly only associated with larger models. The 1,000 litre water reservoir and swept-material container of over 5 m ensure that the VIAJET 5U can sweep for long periodswithout...

Open the catalog to page 2

kg 3.760 > 1) Variations depending on optional equipment. 2) Without flashing beacon (flashing beacon with protection cover +100).3) Permissible axle load spreading has to be checked depending on weight variation of rear axle unit. Space required to manoeuvre exhaust and induction devices has to be considered. Subject to change without prior notice. size="-1">

Open the catalog to page 3

Rear view monitor MC 100 Pneumatically operated hand (camera/monitor), offerssafety when travelling inreverse. suction device on theemptying flap (diameter 200 mm), with manual blanking flap on the emptyingflap. For the simple emptyingof sediment traps, wastepaper bins and for the manualcollection of leaves. > for setting down thecontainer during thechangeover procedure. Front-mounted brush, mounted on the frontbumper, hydraulicallytelescoping with pneumatic swing and lift, including quickchange mounting. For bettercleaning of an extendedworking area. > Fitting trolley for changing of the sweeping...
