Product catalog summary
Overview: The TERRAJET is an advanced airfield cleaning vehicle designed to operate in all weather conditions, ensuring runways, taxiways, and aprons are free from debris, water, and snow. It features a high-efficiency exhauster fan powered by a 170 kW engine and utilizes the innovative FAUN circulating air system for effective cleaning.
Specifications:
  • Engine: 6-cylinder, 170 kW.
  • Body Sizes: Available in 7 m³ and 9 m³ capacities.
  • Materials: High-quality V2A steel construction with wear-resistant materials for durability.
  • Cleaning Efficiency: Capable of cleaning up to 84,000 m³ per hour in suction mode and up to 600,000 m² per hour with optional lateral air blower nozzles.
  • Sweeping Width: Full vehicle width with adjustable components.
Features:
  • FAUN Circulating Air System: Binds dirt with water particles and deposits them using centrifugal force, reducing maintenance and eliminating the need for special filters.
  • Control Panel: Provides the driver with all necessary information and controls at a glance.
  • Optional Accessories: Includes rear view monitor, sound insulation, side disc brushes, blower nozzles, hand suction device, working spotlamp, and corrosion-resistant container coating.
Performance:
  • Max Sweeping Speed: 40 km/h.
  • Max Air Flow Rate: 30,000 m³/h.
  • Max Cleaning Distance: 20 m with lateral nozzles.
Technical Data:
  • Dimensions: Length 7,100 mm (TERRAJET 7) and 8,100 mm (TERRAJET 9), Width 2,500 mm, Height 3,380 mm.
  • Weight: Empty weight 11,500 kg (TERRAJET 7) and 12,500 kg (TERRAJET 9), with payload capacities of 4,500 kg and 5,500 kg respectively.
Conclusion: The TERRAJET offers a robust and efficient solution for maintaining airfield cleanliness, with its advanced technology and optional features enhancing its adaptability and performance in various conditions.
See more

Catalog excerpts

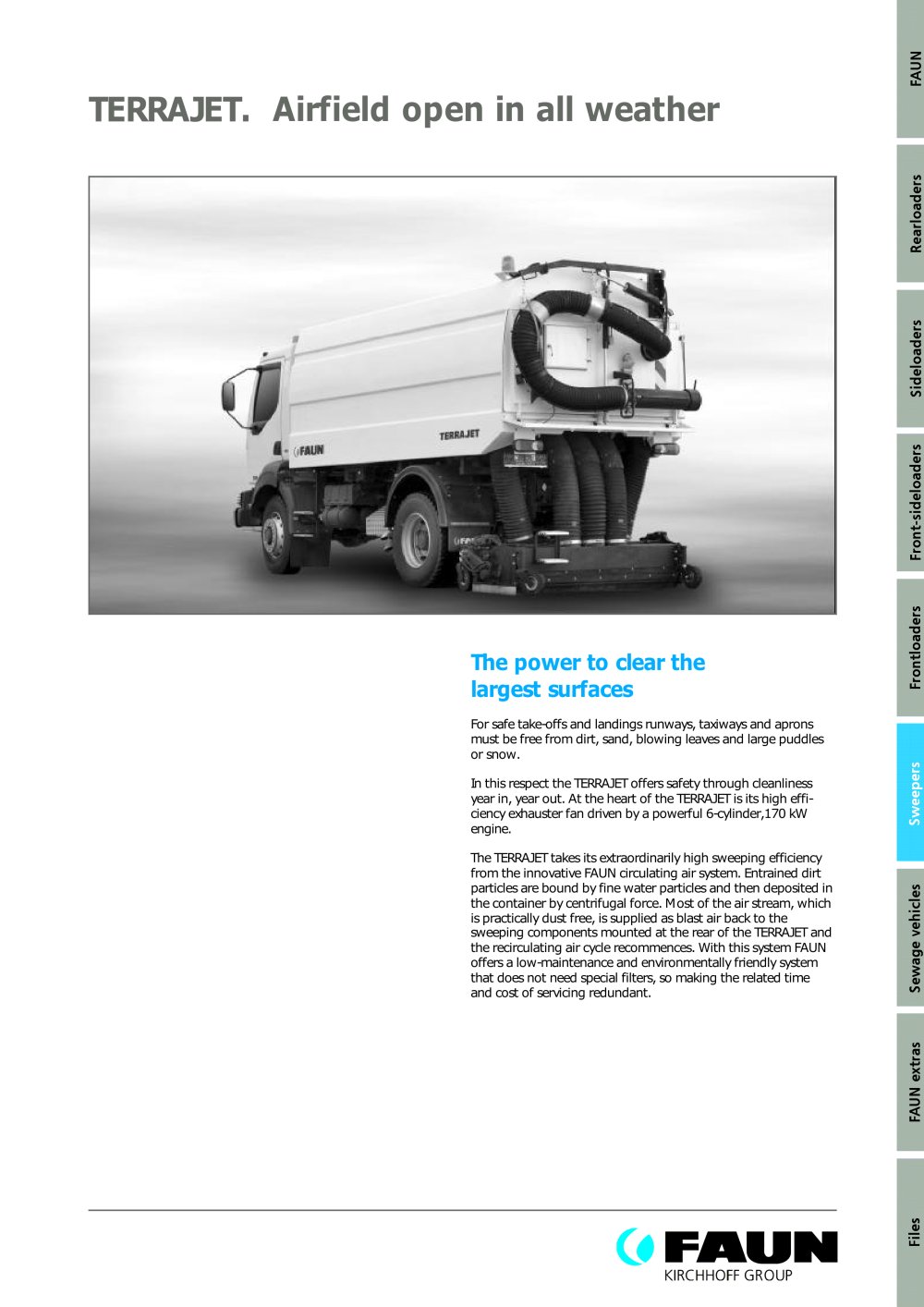

Terrajet-1

The power to clear the largest surfaces > For safe take-offs and landings runways, taxiways and apronsmust be free from dirt, sand, blowing leaves and large puddlesor snow.In this respect the TERRAJET offers safety through cleanlinessyear in, year out. At the heart of the TERRAJET is its high effi-ciency exhauster fan driven by a powerful 6-cylinder,170 kWengine.The TERRAJET takes its extraordinarily high sweeping efficiencyfrom the innovative FAUN circulating air system. Entrained dirtparticles are bound by fine water particles and then deposited inthe container by centrifugal force. Most of the air stream, whichis practically dust free, is supplied as blast air back to thesweeping components mounted at the rear of the TERRAJET andthe recirculating air cycle recommences. With this system FAUNoffers a low-maintenance and environmentally friendly systemthat does not need special filters, so making the related timeand cost of servicing redundant. size="-1">

 Open the catalog to page 1
Terrajet-2

The TERRAJET is available in two different body sizes. You canchoose between 7 or 9 m bodies. Due to its relatively smallwheel base, the TERRAJET 7 has excellent manoeuvrability.Generous body and water tank volume are integral features of the TERRAJET 9.The body is of welded construction with an integrated containerbase, which is manufactured of high-quality V2A steel, as is thefront wall. Areas which take the strain are manufactured from wear-resistant material, to provide maximum protection againstcorrosion. > Thanks to the FAUN recirculating air system of the TERRAJET,maximum cleaning of the...

 Open the catalog to page 2
Terrajet-3

kg 4.500 5.500 > 1) Variations depending on chassis. 2) Without flashing beacon (flashing beacon with protection cover +100).3) Short driver's cab.4) Permissible axle load spreading has to be checked depending on weight variation of rear axle unit. Space required to manoeuvre exhaust and induction devices has to be considered.Subject to change without prior notice. size="-1">

 Open the catalog to page 3
Terrajet-4

Rear view monitor MC 100 Side blower nozzles (operated (camera/monitor), offerssafety when travelling inreverse. from driver's cab). To blowdirt, leaves or grass cut aswell as snow and ice away from the traffic lane. > Designed for silence with Pneumatically operated hand self-extinguishing soundinsulation mats in themachinery compartment, for reduction of noise emissions. suction device on theemptying flap (diameter 200 mm), with manual blanking flap on the emptyingflap. > Body-mounted motor, six Working spotlamp on the cylinder IVECO Type Aifo 8060. driver's cab, for better viewand illumination...

 Open the catalog to page 4
