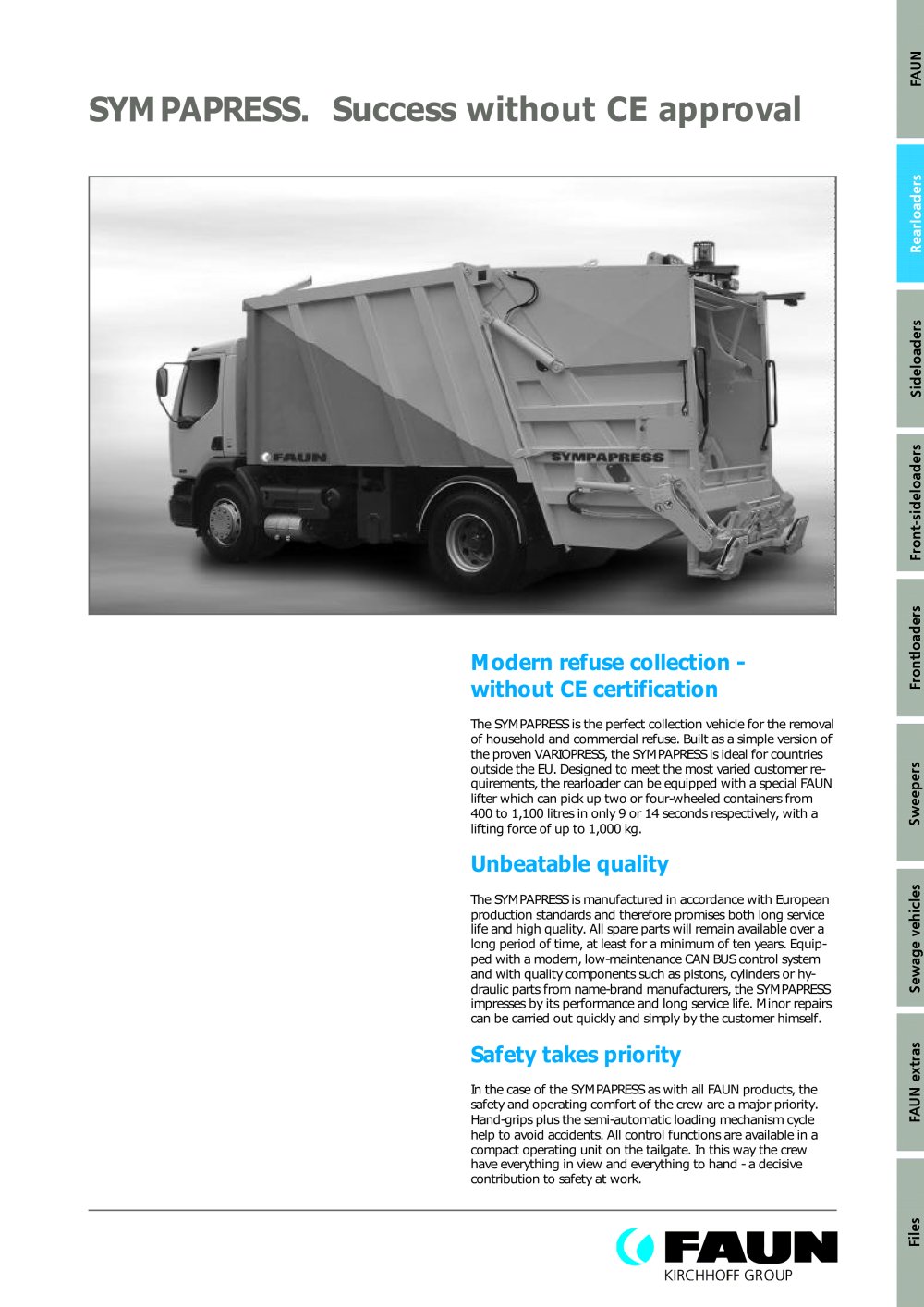

SYMPAPRESS
2Pages

Modern refuse collection - without CE certification > The SYMPAPRESS is the perfect collection vehicle for the removalof household and commercial refuse. Built as a simple version ofthe proven VARIOPRESS, the SYMPAPRESS is ideal for countriesoutside the EU. Designed to meet the most varied customer re-quirements, the rearloader can be equipped with a special FAUNlifter which can pick up two or four-wheeled containers from400 to 1,100 litres in only 9 or 14 seconds respectively, with alifting force of up to 1,000 kg. Unbeatable quality > The SYMPAPRESS is manufactured in accordance with European production standards and therefore promises both long servicelife and high quality. All spare parts will remain available over along period of time, at least for a minimum of ten years. Equip-ped with a modern, low-maintenance CAN BUS control systemand with quality components such as pistons, cylinders or hy-draulic parts from name-brand manufacturers, the SYMPAPRESSimpresses by its performance and long service life. Minor repairscan be carried out quickly and simply by the customer himself. Safety takes priority > In the case of the SYMPAPRESS as with all FAUN products, the safety and operating comfort of the crew are a major priority.Hand-grips plus the semi-automatic loading mechanism cycle help to avoid accidents. All control functions are available in acompact operating unit on the tailgate. In this way the crewhave everything in view and everything to hand - a decisivecontribution to safety at work. size="-1">

Containers of different sizes can be taken up: kg 6.370 6.260 6.770 11.170 > The chart includes only the common standard types. 1) Including auxiliary interface (acc. DIN 70020).2) Variations possible depending on chassis type and optional equipment fitted. 3) Measurement from centre of rearmost axle to rear edge of tailgate, variations possible depending on chassis.4) Payload will decrease when mounting optional or special equipment to chassis or body. Payload achieved may vary depending on density of collected material.5) Permissible axle load spreading has to be checked depending on...
