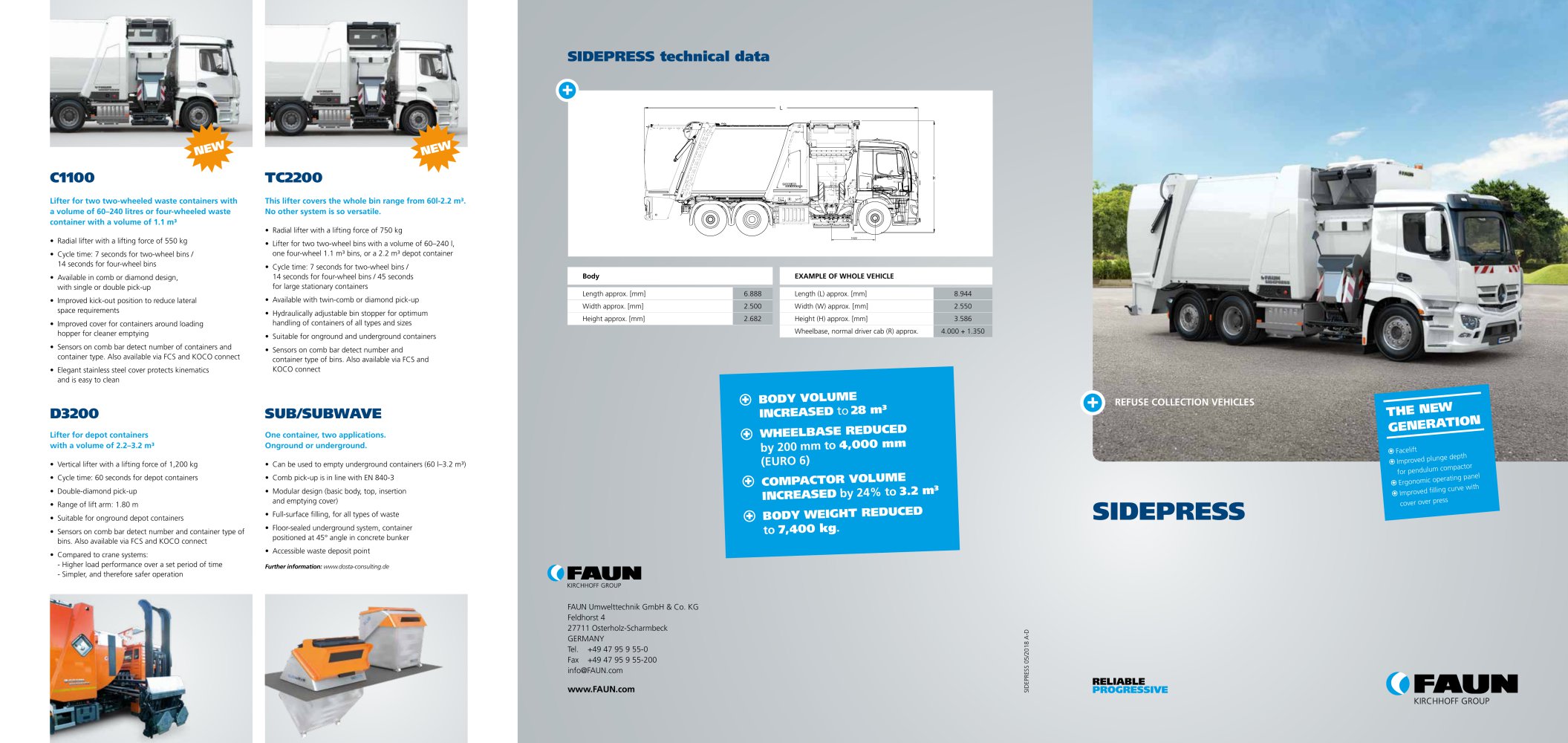

SIDEPRESS technical data 1 Lifter for two two-wheeled waste containers with a volume of 60–240 litres or four-wheeled waste container with a volume of 1.1 m³ This lifter covers the whole bin range from 60l-2.2 m³. No other system is so versatile. • Radial lifter with a lifting force of 750 kg • Available in comb or diamond design, with single or double pick-up • Improved kick-out position to reduce lateral space requirements • Improved cover for containers around loading hopper for cleaner emptying • Sensors on comb bar detect number of containers and container type. Also available via FCS and KOCO connect • Elegant stainless steel cover protects kinematics and is easy to clean • Lifter for two two-wheel bins with a volume of 60–240 l, one four-wheel 1.1 m³ bins, or a 2.2 m³ depot container • Cycle time: 7 seconds for two-wheel bins / 14 seconds for four-wheel bins / 45 seconds for large stationary containers • Available with twin-comb or diamond pick-up • Hydraulically adjustable bin stopper for optimum handling of containers of all types and sizes • Suitable for onground and underground containers EXAMPLE OF WHOLE VEHICLE G www.FAUN.fr / www.FAUN.com ECHELLE MASSSTAB SPECIFICATIONS STANDARDS DE CONSTRUCTION : FAUN Norm AA700 BAUNORMBEZEICHNUNG : FAUN Norm AA700 . . N°MODIF. N°ANDERUNG MATIERE: WERKSTOFF: ASSEMBLAGE SUPERIEUR/OBERBAUGRUPPE: --- EPAISSEUR - DICKE / MATIERE - WERKSTOFF N°DESSIN / N°ZEICHNUNG FORMAT FORMAT Wheelbase, normal driver cab (R) approx. 1 SIGNATURE UNTERZEICHNUNG FEUILLE/FEUILLES BLATT/BLATTER INDICE NBRE DESSINATEUR VERIFICATEUR INDEX MENGE ZEICHNER PRUFER NOM/NAME DATE DATUM INDICE NBRE DESSINATEUR VERIFICATEUR INDEX MENGE ZEICHNER PRUFER N°MODIF. N°ANDERUNG Sans notre approbation, ce plan ne peut etre ni copie ni transmis a un tiers. Darf ohne unsere schriftliche Genehmigung weder kopiert noch an Dritte weitergegeben werden. • Cycle time: 7 seconds for two-wheel bins / 14 seconds for four-wheel bins INDICE INDEX • Radial lifter with a lifting force of 550 kg • Sensors on comb bar detect number and container type of bins. Also available via FCS and KOCO connect Lifter for depot containers with a volume of 2.2–3.2 m³ One container, two applications. Onground or underground. • Vertical lifter with a lifting force of 1,200 kg • Can be used to empty underground containers (60 l–3.2 m³) • Cycle time: 60 seconds for depot containers • Comb pick-up is in line with EN 840-3 • Double-diamond pick-up • Range of lift arm: 1.80 m • Modular design (basic body, top, insertion and emptying cover) • Suitable for onground depot containers • Full-surface filling, for all types of waste • Sensors on comb bar detect number and container type of bins. Also available via FCS and KOCO connect • Floor-sealed underground system, container positioned at 45° angle in concrete bunker • Compared to crane systems: - Higher load performance over a set period of time - Simpler, and therefore safer operation BODY VOLUME INCREASED to 28 m³ WHEELBASE REDUCED by 200 mm to 4,000 mm (EURO 6) COMPACTOR VOLUME INCREASED by 24% to 3.2 m³ BODY WEIGHT REDUCED to 7,400 kg. REFUSE COLLECTION VEHICLES • Accessible waste deposit point Further information: www.dosta-consulting.de THE NEW N GENERATIO Facelift ge depth Improved plun compactor for pendulum e

Higher load capacity and faster speeds The new FAUN SIDEPRESS combines a high usable volume with fast loading and high-performance compaction in a one-man-operation vehicle. The new design of the impermeable hopper compactor and the new body container, together with the elegantly encased lifter, form a single, fully integrated unit. Engaging in dialogue with our customers all over the world enables us to provide tailor-made, user-optimised vehicles for every waste disposal task. No matter what you are planning: FAUN‘s comprehensive range of waste disposal vehicles will always provide you...
