SELECTAPRESS
4Pages

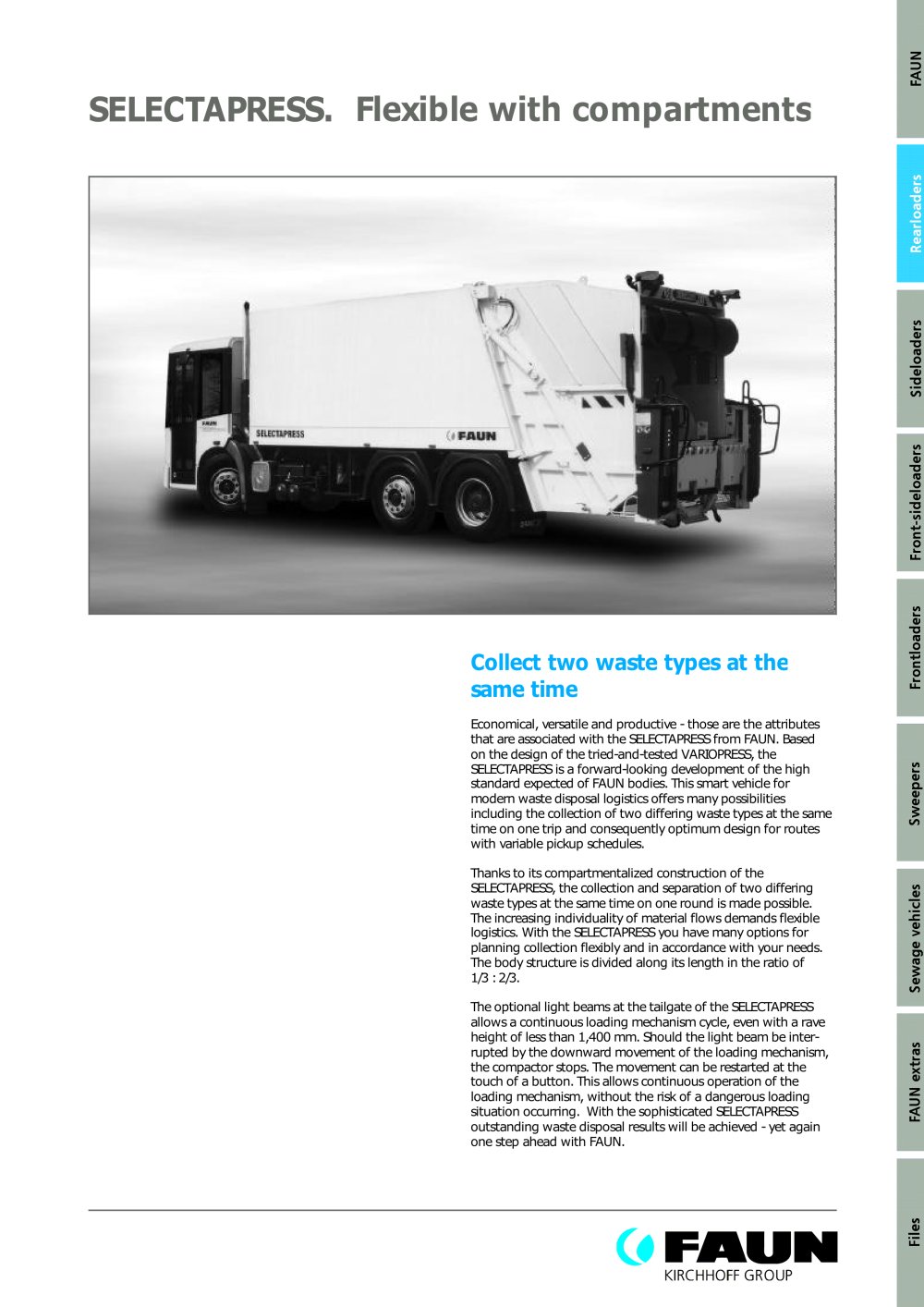

Collect two waste types at the same time > Economical, versatile and productive - those are the attributesthat are associated with the SELECTAPRESS from FAUN. Basedon the design of the tried-and-tested VARIOPRESS, theSELECTAPRESS is a forward-looking development of the highstandard expected of FAUN bodies. This smart vehicle formodern waste disposal logistics offers many possibilitiesincluding the collection of two differing waste types at the sametime on one trip and consequently optimum design for routeswith variable pickup schedules. Thanks to its compartmentalized construction of theSELECTAPRESS, the collection and separation of two differingwaste types at the same time on one round is made possible.The increasing individuality of material flows demands flexiblelogistics. With the SELECTAPRESS you have many options forplanning collection flexibly and in accordance with your needs.The body structure is divided along its length in the ratio of 1/3 : 2/3.The optional light beams at the tailgate of the SELECTAPRESSallows a continuous loading mechanism cycle, even with a raveheight of less than 1,400 mm. Should the light beam be inter-rupted by the downward movement of the loading mechanism,the compactor stops. The movement can be restarted at thetouch of a button. This allows continuous operation of theloading mechanism, without the risk of a dangerous loadingsituation occurring. With the sophisticated SELECTAPRESSoutstanding waste disposal results will be achieved - yet againone step ahead with FAUN. size="-1">

When discharging the body contents, the ingenious slidingbulkhead arrangement ensures clean separation of the differentcollected waste types. The bulkhead closes off the compartment that is not being emptied thus preventing ejection of the wrongpart of the load into the receiver. This action ensures that thehopper is sealed against waste materials falling out. > Emptying is performed by means of two independent ejectorplates, each moved by a telescopic cylinder. The two ejectorplates are so constructed that they can be brought very close tothe cab in the foremost position. > The continuous...

Containers of different sizes can be taken up: kg 5.190 11.750 11.340 10.920 > 1) Including auxiliary interface (acc. DIN 70020). 2) Variations possible depending on chassis type and optional equipment fitted.3) Measurement from centre of rearmost axle to rear edge of tailgate, variations possible depending on chassis.4) Payload will decrease when mounting optional or special equipment to chassis or body. Payload achieved may vary depending on density of collected material. 5) Permissible axle load spreading has to be checked depending on weight variation of rear axle unit. Space required...
