Rotopress
4Pages

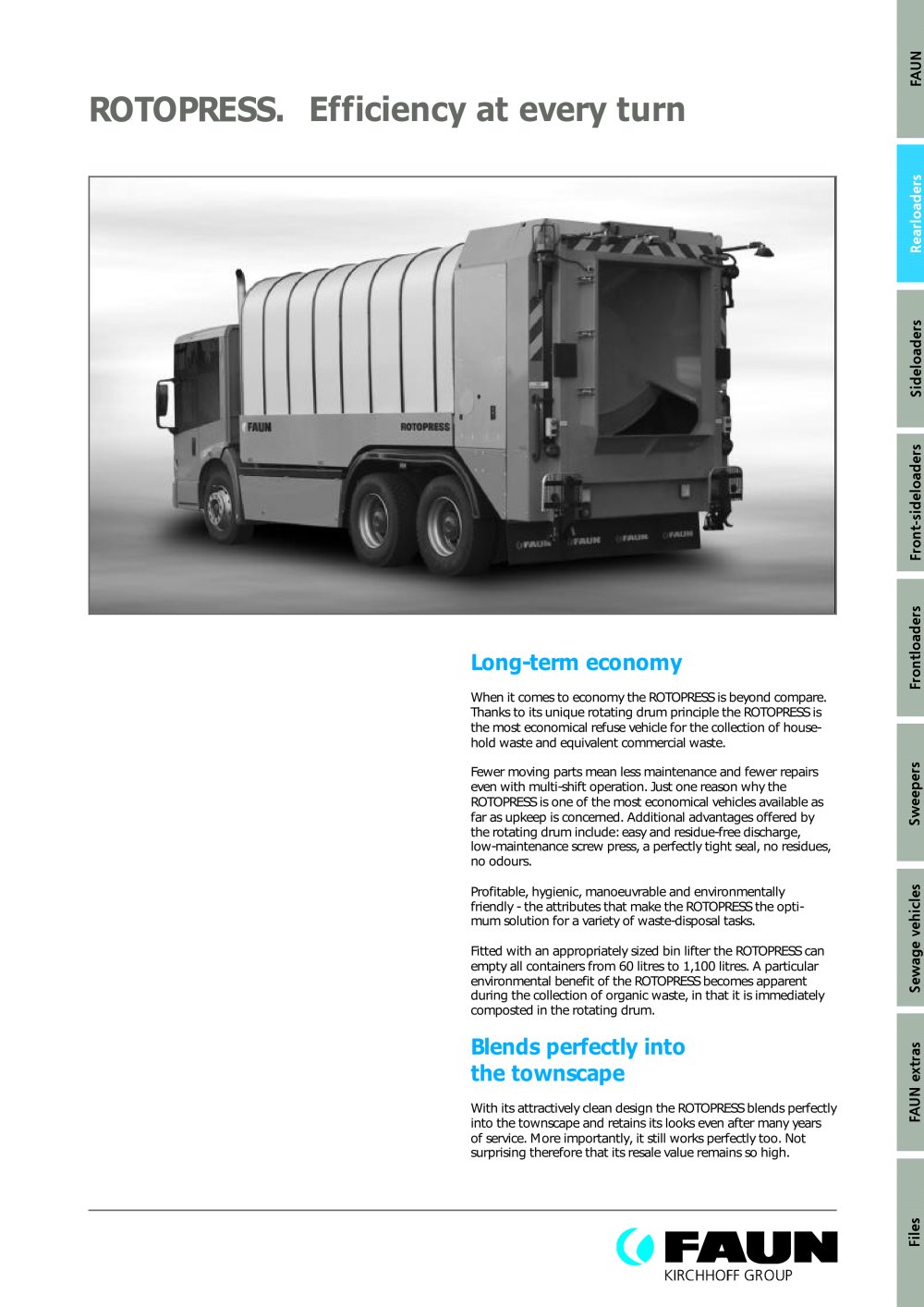

When it comes to economy the ROTOPRESS is beyond compare.Thanks to its unique rotating drum principle the ROTOPRESS isthe most economical refuse vehicle for the collection of house- hold waste and equivalent commercial waste. Fewer moving parts mean less maintenance and fewer repairseven with multi-shift operation. Just one reason why theROTOPRESS is one of the most economical vehicles available as far as upkeep is concerned. Additional advantages offered bythe rotating drum include: easy and residue-free discharge,low-maintenance screw press, a perfectly tight seal, no residues,no odours. Profitable, hygienic, manoeuvrable and environmentally friendly - the attributes that make the ROTOPRESS the opti-mum solution for a variety of waste-disposal tasks.Fitted with an appropriately sized bin lifter the ROTOPRESS canempty all containers from 60 litres to 1,100 litres. A particularenvironmental benefit of the ROTOPRESS becomes apparentduring the collection of organic waste, in that it is immediatelycomposted in the rotating drum. > With its attractively clean design the ROTOPRESS blends perfectlyinto the townscape and retains its looks even after many yearsof service. More importantly, it still works perfectly too. Notsurprising therefore that its resale value remains so high. >

All controls are carefully designed and arranged for safe andeasy operation:- Key switch for body functions ON/OFF- Pushbutton for hydraulics ON/OFF - Pushbutton for rotating the drum in the compaction direction ON- Pushbutton for rotating the drum in the discharge direction ON- Pushbutton for tailgate OPEN- Ammeter for control of air exchange (light-emitting diode) - Maximum load display (optional) > A "light traveller", the ROTOPRESS body weighs 800 kg less than rearloader bodies of the same volume, leading to an increase in payload and a reduction in fuel consumption. > Tightly sealed...

Containers of different sizes can be taken up: kg 4.445 8.280 7.850 7.400 14.190 13.910 > The chart includes only the standard types. Outside it other capacities up to 41 mӳ are also available. 1) Including auxiliary interface (acc. DIN 70020).2) Variations possible depending on chassis type and optional equipment fitted. 3) Measurement from centre of rearmost axle to rear edge of tailgate, variations possible depending on chassis.4) Payload will decrease when mounting optional or special equipment to chassis or body. Payload achieved may vary depending on density of collected material. 5)...

Electrical connection to DIN Washing connection at the 30731 (fitted socket) forautomatic lifters. front container seal. Permitscleaning of the blower. > Strengthened cone in 8 mm Additional seal between sheet, offers less wear and longer service life. collection container and tail section. Ensures that nowaste can fall into the box-carriers or onto the road. > Liquid collection tray at lower Protectors for 2 flashing part of tail section (approx. 180 litres) including draincock (2 inch diameter). Prevents liquid spilling ontoroad when collecting organicwaste. beacons. > Air-changer unit...
