ROTOPRESS 541

ROTOPRESS 541

ROTOPRESS 541

Product catalog summary
Introduction
The ROTOPRESS 541 is a mobile transfer station designed for cost-effective separation of waste collection and transport. Known for its reliability and efficiency, the ROTOPRESS series has sold over 35,000 units, leveraging a rotating-drum principle that minimizes maintenance and repairs.

Key Features
  • Rotating drum for easy and residue-free emptying.
  • Compact and easy-maintenance compacting screw.
  • Massive compaction with perfect sealing to prevent residues and odors.

Operational Options
The ROTOPRESS 541 offers two operational modes:
  • Mobile Transfer Station: Transfers recyclable material via conveyor belt or hopper to a container, then transported to disposal sites.
  • Stationary Intermediate Waste Store: Functions as a temporary storage before waste is moved to disposal sites using special transport vehicles.

Specifications
  • Body capacity: 41 m³
  • Weight including trailer: approximately 13,590 kg
  • Dimensions: Length 11,570 mm, Width 2,500 mm, Height 2,810 mm

Trailer and Tractor Recommendations
  • Trailer width: approximately 2,500 mm, height: 1,550 mm
  • Tractor G.V.W.: 26 t, weight: approximately 8,315 kg
  • Example complete vehicle G.V.W.: 40 t, payload: approximately 18,095 kg

Conclusion
The ROTOPRESS 541 is an economical, hygienic, and environmentally-friendly solution for waste management, adaptable for both stationary and mobile operations.
See more

Catalog excerpts

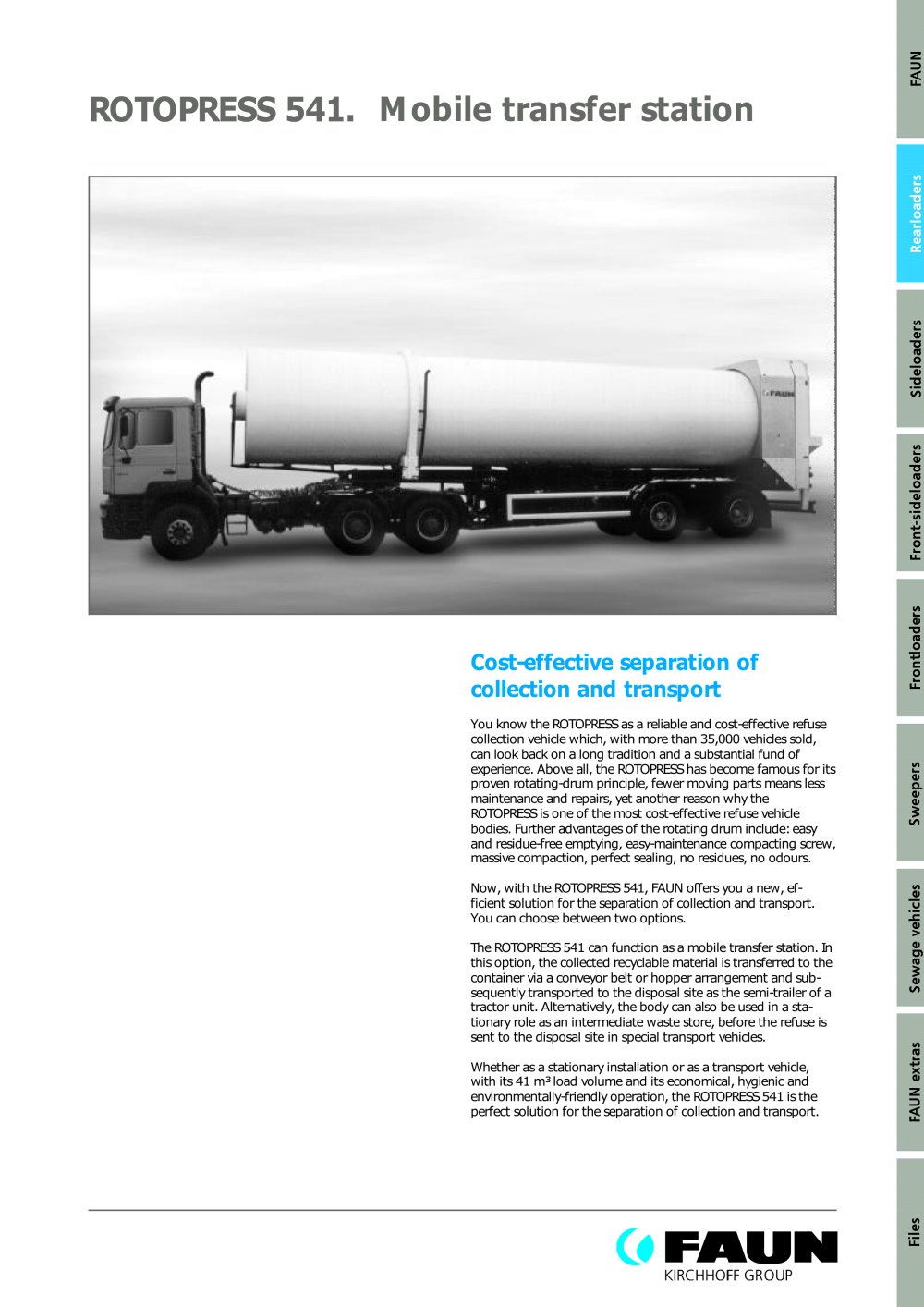

ROTOPRESS 541-1

You know the ROTOPRESS as a reliable and cost-effective refuse collection vehicle which, with more than 35,000 vehicles sold,can look back on a long tradition and a substantial fund ofexperience. Above all, the ROTOPRESS has become famous for itsproven rotating-drum principle, fewer moving parts means lessmaintenance and repairs, yet another reason why theROTOPRESS is one of the most cost-effective refuse vehiclebodies. Further advantages of the rotating drum include: easyand residue-free emptying, easy-maintenance compacting screw,massive compaction, perfect sealing, no residues, no odours. Now, with the ROTOPRESS 541, FAUN offers you a new, ef-ficient solution for the separation of collection and transport. You can choose between two options. The ROTOPRESS 541 can function as a mobile transfer station. Inthis option, the collected recyclable material is transferred to thecontainer via a conveyor belt or hopper arrangement and sub-sequently transported to the disposal site as the semi-trailer of atractor unit. Alternatively, the body can also be used in a sta-tionary role as an intermediate waste store, before the refuse issent to the disposal site in special transport vehicles. Whether as a stationary installation or as a transport vehicle,with its 41 m load volume and its economical, hygienic andenvironmentally-friendly operation, the ROTOPRESS 541 is theperfect solution for the separation of collection and transport. >

 Open the catalog to page 1
ROTOPRESS 541-2

kg 18.095 > 1) Variations possible depending on chassis type and optional equipment fitted. 2) Measurement from middle of last axle to rear edge of tailgate, variations possible depending on type of trailer.3) Payload will decrease when mounting optional or special equipment to chassis or body. Payload achieved may vary depending on density of collected material. Subject to change without prior notice. ROTOPRESS_541-A-05/2004-E size="-1">

 Open the catalog to page 2
