ONE STOP

Product catalog summary

Overview: The ONE STOP system is designed to efficiently empty and wash bins using a single refuse vehicle equipped with an integrated washing device. This system streamlines the process by combining bin emptying and washing into one cycle, reducing the need for separate vehicles and crews.

System Operation: After a bin is emptied, it remains inverted while the ONE STOP washing arm positions itself inside the bin. High-pressure spinning water jets clean the bin, with the wash duration adjustable to handle varying levels of dirt. An optional lid washer can be added to clean bin lids after the main wash.

Optional Lid Washing: This feature uses three high-pressure fixed water jets on a spray bar, but limits the vehicle to two-wheeled containers. The lid washing equipment can be removed to accommodate larger containers.

Cleaning Technique: The system features two washing arms with rotating heads that can operate independently for two-wheeled containers or together for four-wheeled containers. The 100 bar water jets ensure efficient cleaning.

Variable Settings: Operators can adjust the washing time from 2 to 12 seconds before starting the cycle.

Water System: The clean water tank is filled via a standard connector with anti-syphon protection, and the waste water tank is emptied using a quick release valve and hose.

Technical Specifications: The system includes two models, ROTOPRESS and VARIOPRESS, with clean water tank capacities of approximately 1,500 and 1,900 liters, respectively, and waste water tank capacities of approximately 1,300 and 1,400 liters. Both models operate at a maximum water pressure of 100 bar and have adjustable washing times between 2 to 12 seconds. Recommended body size is 520 for ROTOPRESS and 518 for VARIOPRESS, with a standard chassis weight of 26 tons and a wheelbase of approximately 3,700+1,350 mm for ROTOPRESS and 3,800+1,350 mm for VARIOPRESS.

Conclusion: The ONE STOP system offers a comprehensive solution for bin emptying and washing, enhancing efficiency and reducing operational costs by integrating these processes into a single vehicle operation.

Catalog excerpts

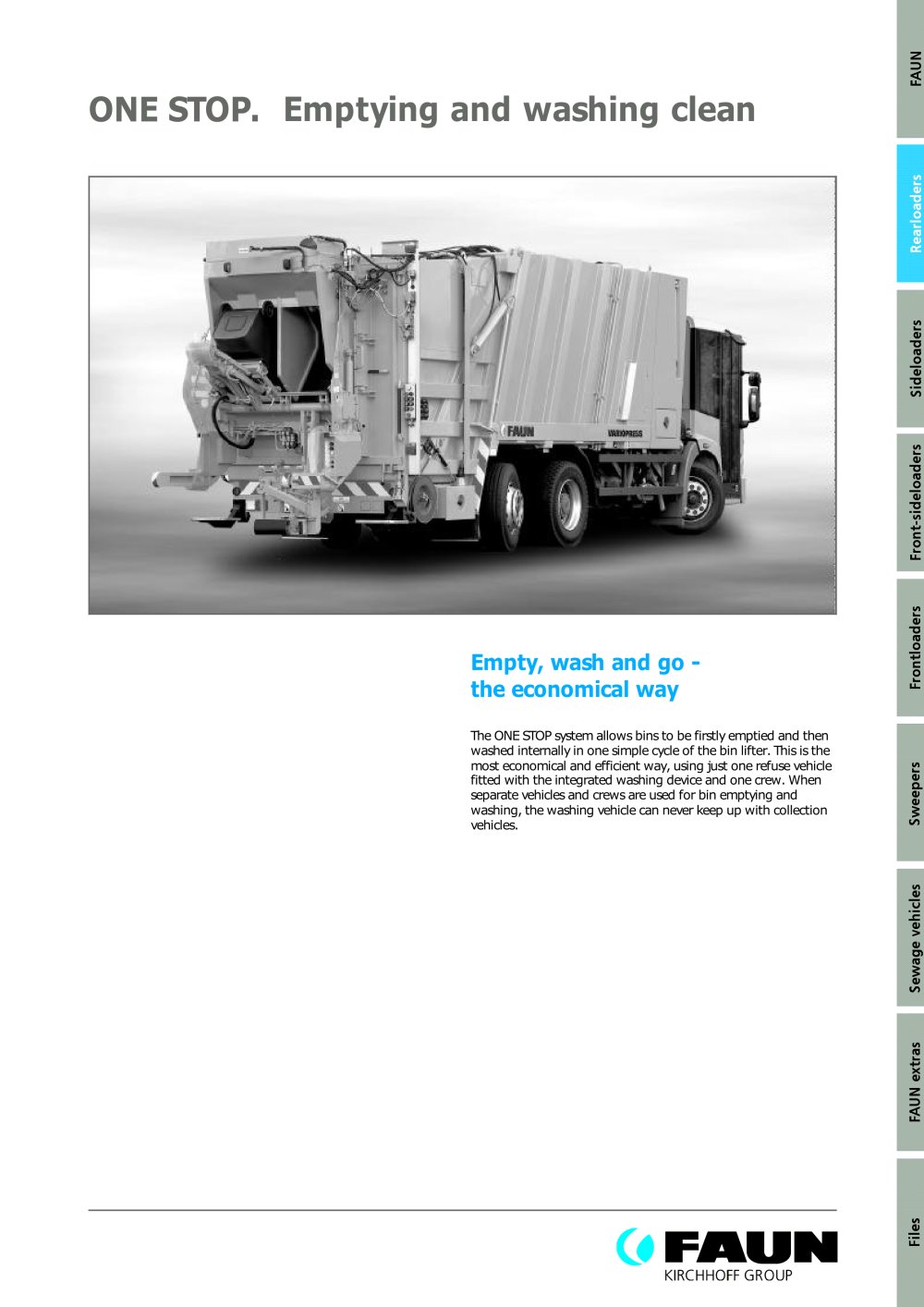

Empty, wash and go - the economical way > The ONE STOP system allows bins to be firstly emptied and thenwashed internally in one simple cycle of the bin lifter. This is themost economical and efficient way, using just one refuse vehiclefitted with the integrated washing device and one crew. Whenseparate vehicles and crews are used for bin emptying andwashing, the washing vehicle can never keep up with collectionvehicles. size="-1">

Open the catalog to page 1

After emptying the bin in the usual way it stays in the invertedposition. The ONE STOP washing arm moves into position, sothat the washing head is inside the bin. High pressure spinningwater jets do the rest. The duration of the wash can be selected by the loader to cope with very dirty bins. An optional lid washercan be fitted to clean the inside of the lids after the main wash iscompleted. As soon as the wash is finished the arms retractautomatically ready for the next bin. > This is carried out by 3 high pressure fixed water jets on a spraybar. However with this fitted the vehicle is restricted...

Open the catalog to page 2

mm 3.700+1.350 3.800+1.350 > Subject to change without prior notice.

Open the catalog to page 3
