Frontpress
4Pages

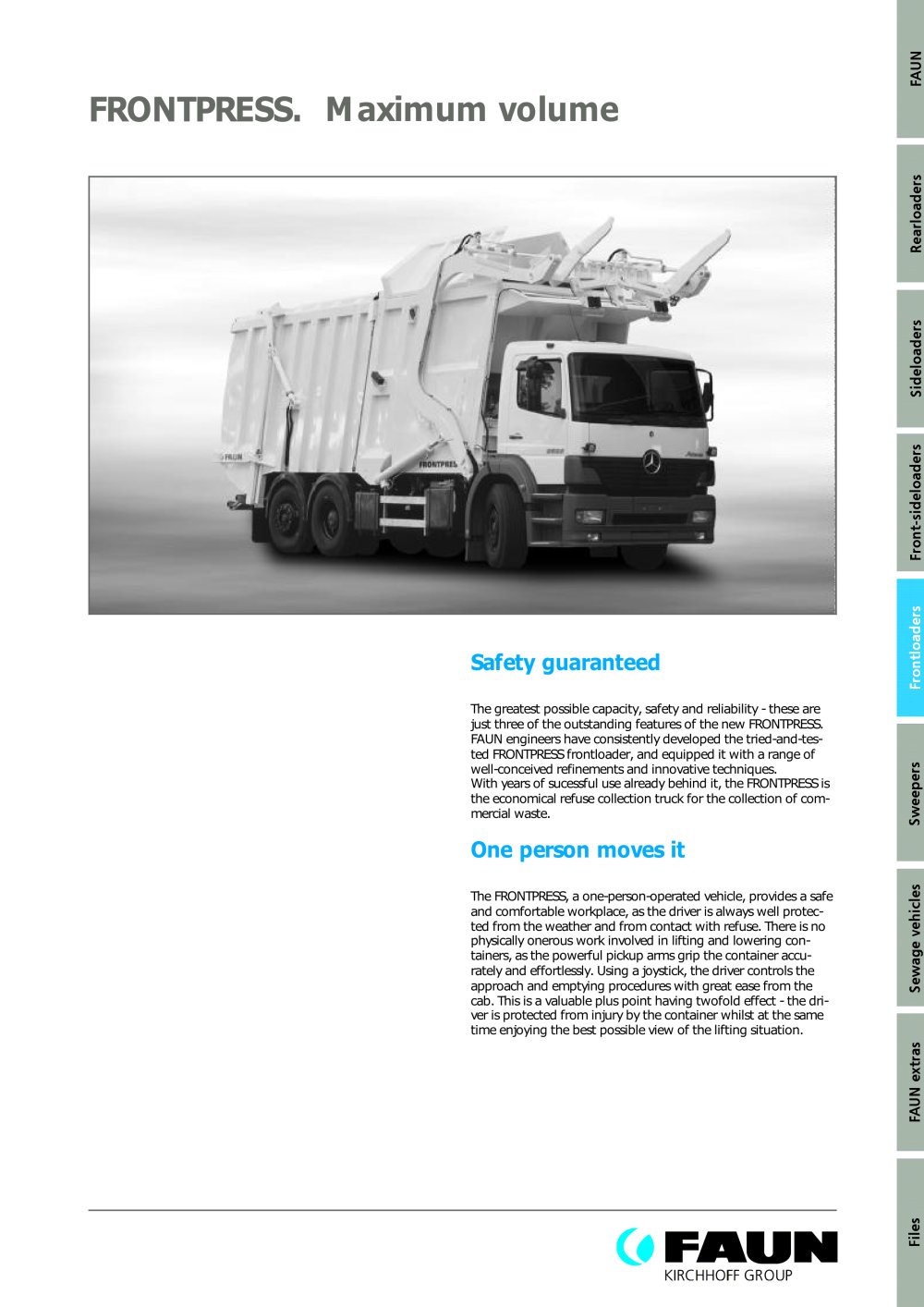

The greatest possible capacity, safety and reliability - these are just three of the outstanding features of the new FRONTPRESS. FAUN engineers have consistently developed the tried-and-tes-ted FRONTPRESS frontloader, and equipped it with a range ofwell-conceived refinements and innovative techniques. With years of sucessful use already behind it, the FRONTPRESS isthe economical refuse collection truck for the collection of com-mercial waste. > The FRONTPRESS, a one-person-operated vehicle, provides a safeand comfortable workplace, as the driver is always well protec-ted from the weather and from contact with refuse. There is nophysically onerous work involved in lifting and lowering con-tainers, as the powerful pickup arms grip the container accu-rately and effortlessly. Using a joystick, the driver controls the approach and emptying procedures with great ease from thecab. This is a valuable plus point having twofold effect - the dri-ver is protected from injury by the container whilst at the sametime enjoying the best possible view of the lifting situation. >

A maximum of body capacity > A large volume on a short wheelbase was one of the declareddevelopment goals of FAUN engineers. With a body volume of33 m on a three-axle chassis with a wheelbase of only 4,200 mm, the new FRONTPRESS offers maximum loading capacitycombined with high manoeuvrability. Load-sending-hydraulics - best possible compaction > The hydraulic system is fitted with a variable speed pump and aload sensor. Only as much oil volume and pressure is produced as is necessary to produce the movement. This saves fuel andprotects the hydraulic and mechanical systems.Powerful...

Containers of different sizes can be taken up: kg 9.075 12.400 > 1) Including auxiliary interface (acc. DIN 70020). 2) Variations possible depending on chassis type and optional equipment fitted.3) Measurement from centre of rearmost axle to rear edge of tailgate, variations possible depending on chassis.4) Payload will decrease when mounting optional or special equipment to chassis or body. Payload achieved may vary depending on density of collected material.5) Without container.6) Permissible axle load spreading has to be checked depending on weight variation of rear axle unit. Space...

Pick-up attachment for 1.1 m Folding cover over driver's container to DIN 30700,folding arms and comb; lidmust be opened manually. cab. Serves as wind protectionwhen emptying containers, toavoid wind-blown refuse. > Hydraulically adjustable Remote control for fork. Even pick-up attachment,important for disposal onmixed routes. The adjustable pocket width settings can bematched to the pocket widthsof the containers. while the bins are being pul-led nearer, the lifter can belowered by remote control. > Tenon mount for 1.1 mӳ con- Equipment box , fitted to the tainers (in the case of...
