Multifaster Series

Multifaster Series

Product catalog summary

Overview: The document provides comprehensive information on the Multifaster quick-release multiconnection system, designed for simultaneous connection of multiple hydraulic, electrical, and pneumatic lines. It highlights over 50 versions and new models suitable for various industrial applications, including agriculture, transport, construction, and robotics.

Features:

Connects 1 to 12 lines simultaneously using flat-face couplings.
Equipped with cam lever for connection and latching.
Available in 2P and 3P series for connection under pressure.
Special Polyurethane seals for wear resistance.
Automatic safety systems and reference pins to prevent misalignment.

Applications: The system is versatile, used in industrial fields and applicable in agriculture, transport, construction, and robotics for equipment like loaders, trailers, and hydraulic hammers.

Benefits:

Significantly reduces connection time.
Prevents fluid spillage and air inclusion.
Ensures alignment and connection under pressure without pressure reduction.
Facilitates easy cleaning and maintenance.

Recommendations:

Verify compatibility with flow and pressure requirements.
Ensure working pressure does not exceed maximum values.
Alternate pressurized and non-pressurized lines to extend seal life.
Use original FASTER® spare parts for replacements.
Protect components from dirt and damage when not in use.

Technical Specifications: The document details various versions of the Multifaster system, emphasizing the importance of using the correct version for specific applications. It includes guidance on ordering and maintenance.

Quality and Compliance: All products comply with UNI EN ISO 9001 and ISO/TS 16949 standards, ensuring quality and reliability.

Conclusion: The Multifaster system offers a revolutionary approach to quick-release couplings, providing ecological benefits and operational efficiency across multiple industrial applications.

Specifications: The MULTIFASTER system is available in several versions, including 2P and 3P series, each with different line capacities and sizes. It accommodates electrical connectors in 1/2” seats, with options for 3 or 7 poles.

Procedures: Instructions for connecting and disconnecting the MULTIFASTER are provided, highlighting the system's ability to connect under pressure.

Technical Data: Includes rated flow, fluid spillage, maximum working pressure, and minimal burst pressure for different coupling sizes, along with materials used and working temperatures.

Resistance and Safety: Resistance is calculated based on the number of lines under pressure, their size, and maximum working pressure. Safety factors are discussed with a standard factor of 1:4 in connected positions.

Ordering Information: A coding system is outlined for ordering MULTIFASTER systems, with tables to assist in determining the complete ordering code for standard configurations.

Applications: Special applications include a version for harvesting with a central shunt valve, emphasizing the system's versatility and compactness.

Available Threads: Lists various thread configurations available for MULTIFASTER components, including sizes and standards such as UN ISO and BSP ISO.

Spare Parts: MULTIFASTER components can be replaced with original FASTER® spare parts if damaged, with detailed instructions and ordering codes provided.

Electrical Connections: Describes electrical connections designed for the MULTIFASTER series, with specifications for 3 poles and 7 poles connections, and a maximum voltage of 48 V DC.

Built-in Quick-Release Couplings: Suitable for machine tools and plastic moulding presses, available for compressed air and water applications with specific designs for corrosion resistance.

Special Products: Mentions Fastergrease, a synthetic grease cartridge for high lubrication performance, suitable for agriculture and construction machines.

Product Specifications:

FASTERGREASE: A complete grease gun set with a quick-release coupling, available in a 450 ml synthetic grease cartridge.
FASTERCLEANER: A 600 ml bottle designed to protect quick-release couplings from dust and dirt.

Multifaster Series:

M001 Series: For machining centers, allowing single multiconnection and disconnection under maximum working pressure.
M201 Series: For air conditioning and refrigeration systems, featuring self-sealing flat valves.
M301 Series: For robotic paint systems, ensuring quick-release connections.
M603 and M604 Series: For steel industry applications, facilitating quick changes in continuous casting and hot rolling plants.

Features and Benefits:

Excellent wear resistance to temperature variations.
Quick and safe connections and disconnections without tools.
Flat-face valves reduce air inclusion and prevent fluid spillage.
Compatibility with various seals and ecological propellant mixtures.

Quality and Standards: FASTER products comply with UNI ISO/TS 16949 and UNI EN ISO 9001 standards, ensuring high quality and reliability.

Contact Information: FASTER provides contact details for its offices worldwide, offering support and further information on their products.

Catalog excerpts

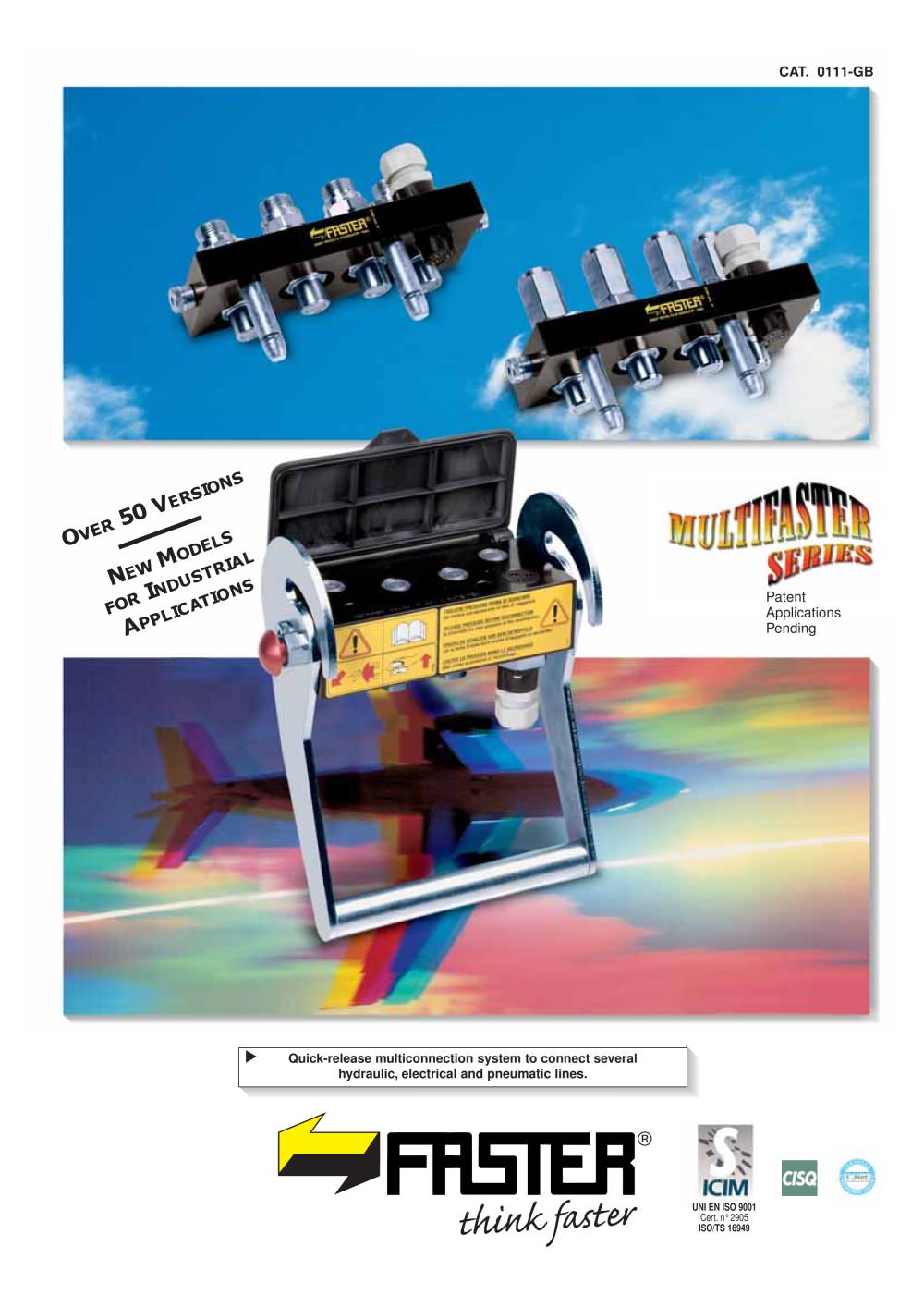

NDUSTRIAL > PatentApplications Pending PPLICATIONS > ▲ Quick-release multiconnection system to connect severalhydraulic,electrical and pneumatic lines. UNI EN ISO 9001 Cert.n2905 ISO/TS 16949 size="-3">

Open the catalog to page 1

MULTIFASTER, please carefullyconsider all data and indicationsreported in our catalogue.Make sure that your MULTIFASTER is suitable to the flow and pressureused during the application.?Working pressure must be verifiedon each single coupling and thenon the total of the lines.?Carefully check that all lines underthe maximum working pressure simultaneously do not exceed themaximum working pressure valueindicated in our catalogue.?Make lines simultaneously underpressure alternate with lines thatare not under pressure to ensure a longer lifetime to the seals.Please carefully read the instructions...

Open the catalog to page 2

FASTERResearch & Development Dept. with differentcouplings sizes and different threads contact ?See available item codes in theordering chart.?As a further help in defining and selecting the most suitable product for the specific application please ask and fill-inwith as much information as possible the Product Definition Form (Mod.A003) sending it back to Faster CustomerService. ?Improper use and incorrect maintenance of products with highinternal working pressures couldcause misfunctioning and damage to persons and machines. Therefore it is necessary to carefullyconform to the instructions...

Open the catalog to page 3

3P112 One line 3/4size Version Version 3P116 One line 1Ԕsize Version 3P124 One line 1 > 1 / > 2 size > The descriptions and illustrations in this catalogue are for information only and not binding. 6 >

Open the catalog to page 6

3P206 2P206 Version 2P206 Two lines 3/8ԔsizeVersion 2P208 Two lines 1/2size Version PatentApplications Pending > 2PB06 PatentApplications Pending 2PB06 Two lines 3/8ԔsizeVersion 3PB06 Two lines 3/8size Version > The descriptions and illustrations in this catalogue are for information only and not binding. 7 >

Open the catalog to page 7

3P306 PatentApplicationsPending 2P306 Two lines 3/8ԔsizeOne line 1/2sizeVersion 3P306 Two lines 3/8ԔsizeOne line 1/2size > Version 3P316 Three lines 1sizeOn request Version > The descriptions and illustrations in this catalogue are for information only and not binding. 8 >

Open the catalog to page 8

2P404 PatentApplications Pending Version 2P404 Four lines 1/4size > The descriptions and illustrations in this catalogue are for information only and not binding. 9 >

Open the catalog to page 9

2P506-1 PatentApplications Pending 2P505 Three lines 1/4ԔsizeTwo lines 3/8size Version Version 2P506 Four lines 3/8ԔsizeVersion 2P506-1 Four lines 3/8sizeOne line 1/2ԔsizeVersion 2P5066 Six lines 3/8sizeVersion 2P5068 Eight lines 3/8Ԕsize > The descriptions and illustrations in this catalogue are for information only and not binding. 10 >

Open the catalog to page 10

3P506 PatentApplications Pending 3P505 Three lines 1/4sizeTwo lines 3/8Ԕsize Version Version 3P506 Four lines 3/8size Version > 3P506-1 Four lines 3/8ԔsizeOne line 1/2sizeVersion 3P5066 Six lines 3/8Ԕsize Version 3P5068 Eight lines 3/8size > The descriptions and illustrations in this catalogue are for information only and not binding. 12 >

Open the catalog to page 12

Version 3P510 Two lines 1/2ԔsizeTwo lines 3/4sizeVersion > The descriptions and illustrations in this catalogue are for information only and not binding. 13 >

Open the catalog to page 13

2P6063P606 PatentApplications Pending Version 2P606 Six lines 3/8Ԕsize Version 2P608 Six lines 1/2size > 3P608 Six lines 1/2蔔size Version > The descriptions and illustrations in this catalogue are for information only and not binding. 14 >

Open the catalog to page 14

2P808 Eight lines 1/2size Version 3P808 Eight lines 1/2ԔsizeVersion > The descriptions and illustrations in this catalogue are for information only and not binding. 15 >

Open the catalog to page 15

PatentApplications Pending 2P1004 Ten lines 1/4Ԕsize Version 2P10A Five lines 1/4sizeVersione 2P10 Five lines 1/2ԔsizeVersion > Patent Applications Pending 2P12A Ten lines 1/2sizeTwo lines 1/4Ԕsize Version 3P12A Ten lines 1/2sizeTwo lines 1/4ԔsizeVersion > The descriptions and illustrations in this catalogue are for information only and not binding. 16 >

Open the catalog to page 16

PatentApplicationsPending 2PS06 Four lines 3/8sizeVersion 2PS06-1 Four lines 3/8ԔsizeOne line 1/2size Version 2PS08 Five lines 1/2Ԕsize Version 3PS06 Four lines 3/8sizeVersion > 3PS06-1 Four lines 3/8ԔsizeOne line 1/2size Version 3PS08 Five lines 1/2ԔsizeVersion > The descriptions and illustrations in this catalogue are for information only and not binding. 17 >

Open the catalog to page 17

In the picturean application of MULTIFASTER 3PD06 mounted on the valve PatentApplicationsPending > Version 3PD06 Four lines 3/8size > Ԣֲ ▲▲ Patent Applications Pending Version 3PW06 Four lines 3/8size > Ԣֲ Patent ApplicationsPending Version 2PA06 Four lines 3/8sizeVersion 3PA06 Four lines 3/8蔔size > The descriptions and illustrations in this catalogue are for information only and not binding. 18 >

Open the catalog to page 18

▲ Use instructions The MULTIFASTER is a semiautomatic patented system whichallows the simultaneous connection of several hydraulic, electrical and pneumatic lines. Connection is achieved thanks to a lever linked to a cam which allows the progressive moving on the mobile part to the fixed one. As shown in the drawing beside. > To connect the Multifaster: ? Pick-up dust cover EӔon the fixed part avoiding extra-strokesthat could damage the hinges? Push the safety button DӔ ? In the same time lift up the lever AӔ ? Put the mobile part BӔon the fixed one ? Engage the reference pins in the proper holes...

Open the catalog to page 20

▲ MULTIFASTERs resistance check Multifaster resistance depends on the number of lines underpressure at the same time, on their size and on the maximum working pressure expected for each one of them. The following relation has to be satisfied:where R = R > max 1 + R > 2 + R > 3 + ...+ R > n Table1 - Maximum allowed resistance values with R > 1 = P > 1 * Q > 1 * S > 1 R > 2 = P > 2 * Q > 2 * S > 2 MULTIFASTER R > 3 = P > 3 * Q > 3 * S > 3 Rmax (N) Version 2P Version 3P R > n = P > n * Q > n * S > n - 3P112 12.000 and with P > n maximum working pressure for the coupling size ғnin MPa - 3P116 16.000...

Open the catalog to page 22
