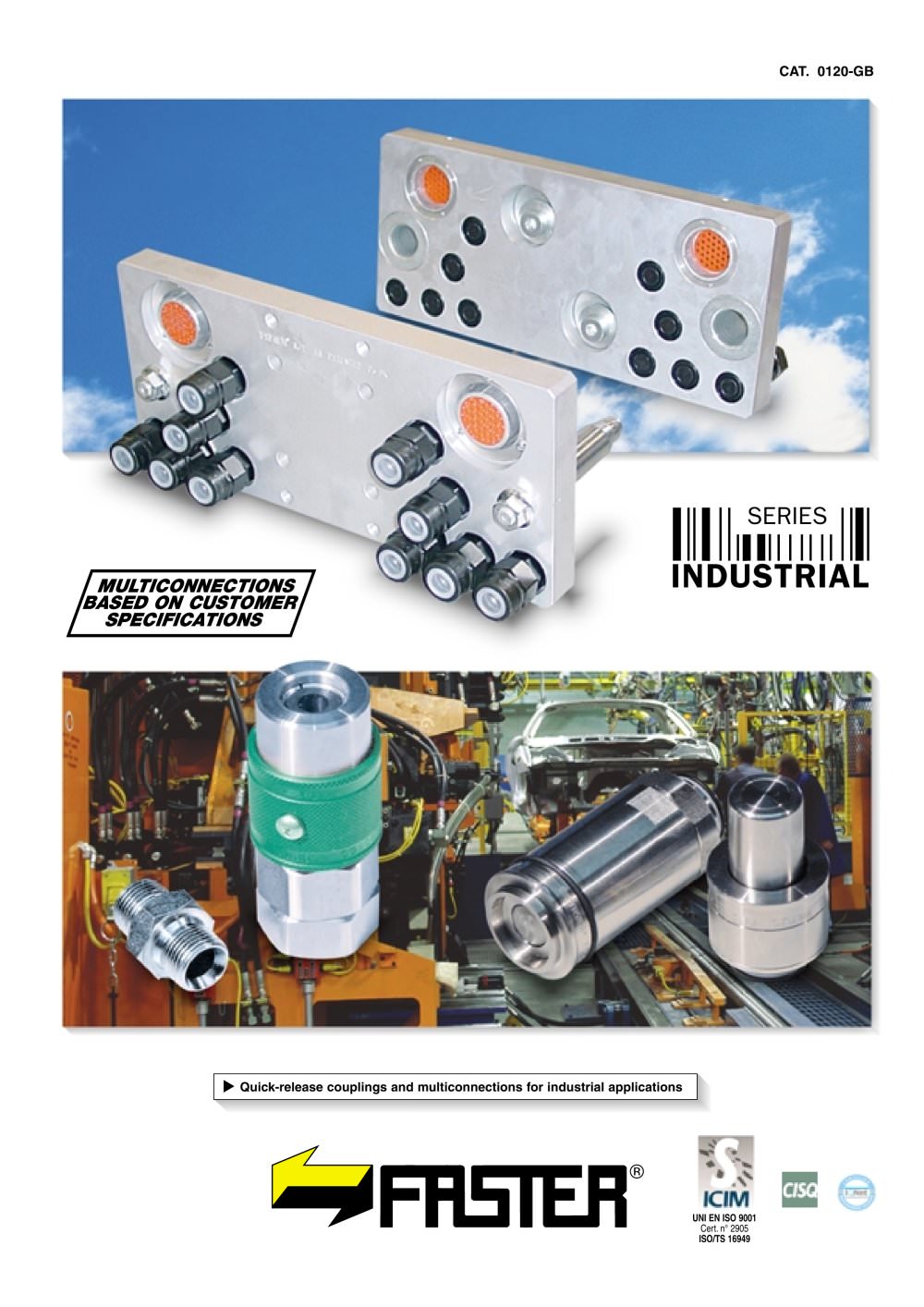

FASTER S.p.A.
Industrial Series

Industrial Series

Product catalog summary

Overview: This document outlines the specifications, procedures, standards, and recommendations for quick-release couplings and multiconnections used in industrial applications. It covers various series of couplings, their features, applications, and maintenance guidelines.

Specifications:

FFNP, 2FFNP, 3FFNP Series: These couplings are designed for high flow rates and minimal pressure drop, featuring flat-face shut-off valves and polyurethane seals, available in carbon steel and AISI 316 stainless steel.
2FFNB and 2FFNC Series: Female couplings with a patented single body valve, suitable for standard and low thickness block installations.
FFC Series: Self-aligning couplings with automatic clearance recovery, designed for simple housing installations.
JM and JF Series: Suitable for medium and high-pressure testing, available in hand and pneumatically actuated versions.

Procedures:

Ensure compatibility with pressure and flow requirements before use.
Lubricate seals and perform connection tests to ensure functionality.
Clean male and female parts before connection to prevent seal damage.

Standards and Norms:

All products conform to UNI EN ISO 9001 and ISO/TS 16949 standards.
FASTER® products are globally distributed and bear the FASTER® logo for authenticity.

Recommendations:

Use original FASTER® spare parts for maintenance.
Protect disconnected couplings with suitable covers to prevent dirt ingress.
Follow catalog instructions to avoid malfunction and damage.

Technical Features:

Materials include zinc-plated steel with Cr III passivation and C98 steel springs.
Standard seals are made of NBR and Polyurethane, with other compounds available on request.
Working temperatures range from -25°C to +100°C.

Applications: Suitable for industries such as steel, plastic molding, painting, robotics, automotive, and more. Also used in testing systems for engines and hydraulic components.

Responsibilities: The final product choice is the customer's responsibility, ensuring all requirements are met and maintenance instructions are followed.

Technical Specifications: The document provides detailed specifications for quick-release couplings, specifically the FFNP, 2FFNP, and 3FFNP series, including tables with measurements such as nominal diameter, maximum working pressure, and flow coefficients.

Procedures and Standards: The couplings are compatible with various thread standards including BSP, NPT, and UNF, and are designed to be interchangeable with male couplings from the same series.

Recommendations: The document emphasizes the robustness and compact design of the couplings, suitable for minimizing pressure drop.

Key Data from Tables: Critical data includes maximum gap between plates, force required to connect without pressure, hydrostatic pushing area, and fluid spillage for different coupling sizes.

Additional Features: The 2FFNB and 2FFNC series are fully interchangeable with the male couplings of the FFNP series, offering a compact design and robustness.

Performance Data: The document provides performance data such as maximum working pressure, flow coefficients, and burst pressure for different sizes of couplings.

Installation and Safety: Recommendations are provided for safe connection and disconnection, advising against performing these actions under pressure or with residual pressure exceeding 1 MPa.

Additional Information: All descriptions and illustrations are for informational purposes only and are not binding. Patent applications are pending for the technologies described.

Catalog excerpts

The recommendations stated inthis catalogue do not consider all risk factors in every possibleapplication of FASTER UNI EN ISO9001 and UNI ISO/TS 16949Standards. ՕIf the connection phase is carriedout at residual pressure, therequired force could be higher than the human one, therefore it is necessary to reduce the internal pressure of the coupling.Dirt on male or female part duringcoupling operations can causeseals damage.ՕIn order to ensure long service lifeto the seals it is recommended to carefully clean mating parts, easilyand quickly done thanks tocoupling flat design.In case of seals damage...

Open the catalog to page 3

SE RIES Flat-face quick-releasecouplings for multiconnections INDUSTRIAL Series F F > NP 2 F F > NP 3 F F > NP 2 F F > NB 2 F F > NC 4 size="-5">

Open the catalog to page 4

Series ▲ 2FFNBF series NB...F TECHNICAL FEATURES: Also 2FFNB Series quick-release couplings, female part, are theexcellent results of the great experience achieved thanks to Multifaster products. Purposely designed to be connected and fully interchangeable with male couplings FFNP, 2FFNP and 3FFNP Series, these female couplings are characterized by a very compact design, great robustness and are assembled with internal components dimensioned to minimize pressure drop. For their installation in the block it is necessary to arrange proper housings according to Faster specifications. These quick-release...

Open the catalog to page 12

Series ▲ 2FFNCF series NC...F TECHNICAL FEATURES:2FFNC Series 2 F F quick-release couplings, female part, directly derivefrom 2FFNB series and have the same benefits characterizing these couplings. They are suitable for low thickness blocks and are connectable with male couplings FFNP, 2FFNP and 3FFNP series according to flowrate and connection under pressure requirements. These quick-release couplings are also available completely made of AISI 316 stainless steel. PatentApplications Pending 2FF > NC...F FF > NP...M For technical data with FFNP...M series male couplingsplease refer to tables...

Open the catalog to page 13

UNI EN ISO 9001 Cert.n2905 ISO/TS 16949 CAT0120/09/06-GB I - FASTER S.p.A. USA - FASTER Inc. I-26027 RIVOLTA DВADDA(CR) Italy - Via L.Ariosto, 7(+39) 0363.377211 - Fax (+39) 0363.377333www.faster.it - [email protected] MAUMEE, OH 43537-9505 - 6560 Weatherfield, Ct.(+1) 419-868-8197 - (+1) 800-231-2501 - Fax (+1) 419-868-8360www.fasterinc.com - [email protected] F - FASTER - Franois Divet F-35200 RENNES- 11, Rue Jean Bras(+33) (0) 2.99.51.44.94Fax (+33) (0) [email protected] D-BENELUX - FASTER - Jrgen Gamers UK - FASTER - Richard Bennett D-40764 LANGENFELD GER - Ursulaweg,...

Open the catalog to page 36
