Overview: The document details the specifications and features of the Series 6400 and 6600 safety valves, designed for intermediate power boiler and organic fluid vaporizer service. These valves comply with the ASME Boiler and Pressure Vessel Code, ensuring certified capacities at 3% overpressure.

Key Features:

Compliance with ASME Code Sections I and VIII for steam service.
Full nozzle design for reduced maintenance and a hardened conical disc for extended seat life.
Monel or copper nickel alloy guides for high-temperature models to reduce galling.
Set pressure capability up to 1500 psig and temperatures up to 1000°F.
Available in closed bonnet or exposed spring versions with dual blow down rings for precise performance.

Materials: The valves are constructed from materials such as carbon steel, stainless steel, Monel, and alloy steel, chosen based on temperature and pressure requirements.

Valve Specifications: Detailed tables provide specifications for different valve sizes, types, and pressure settings, including maximum set pressures and back pressures for various configurations.

Steam Capacities: Tables show steam capacities at 3% overpressure, with capacities listed in pounds per hour at saturation temperature for various pressure increments.

Superheat Correction Factor: A table provides correction factors for superheated steam at different temperatures, ensuring accurate capacity calculations under varying conditions.

General Notes: Additional notes clarify options for valve configurations, such as optional test gags, cap constructions, and specific requirements for organic fluid vaporizer service.

Specifications: The document outlines sizing equations for steam service and organic fluid vaporizers, detailing parameters like required orifice area, relieving pressure, inlet temperature, required steam capacity, and required vapor capacity. The coefficient of discharge and steam superheat correction factor are also specified.

Valve Dimensions and Weight: Various valve models are listed with their dimensions and weights, categorized by inlet and outlet sizes, pressure ratings, and other physical dimensions.

Standards and Compliance: The valves conform to the ASME Boiler and Pressure Vessel Code, ensuring they meet industry standards for safety and performance.

Recommendations: The document advises on the correct use of the valves, emphasizing adherence to specified sizing and pressure guidelines for optimal performance and safety.

Additional Information: Contact information for Farris Engineering is provided, along with notes on the company's global facilities and offices. A disclaimer regarding the accuracy and reliability of the information is also included.

Catalog excerpts

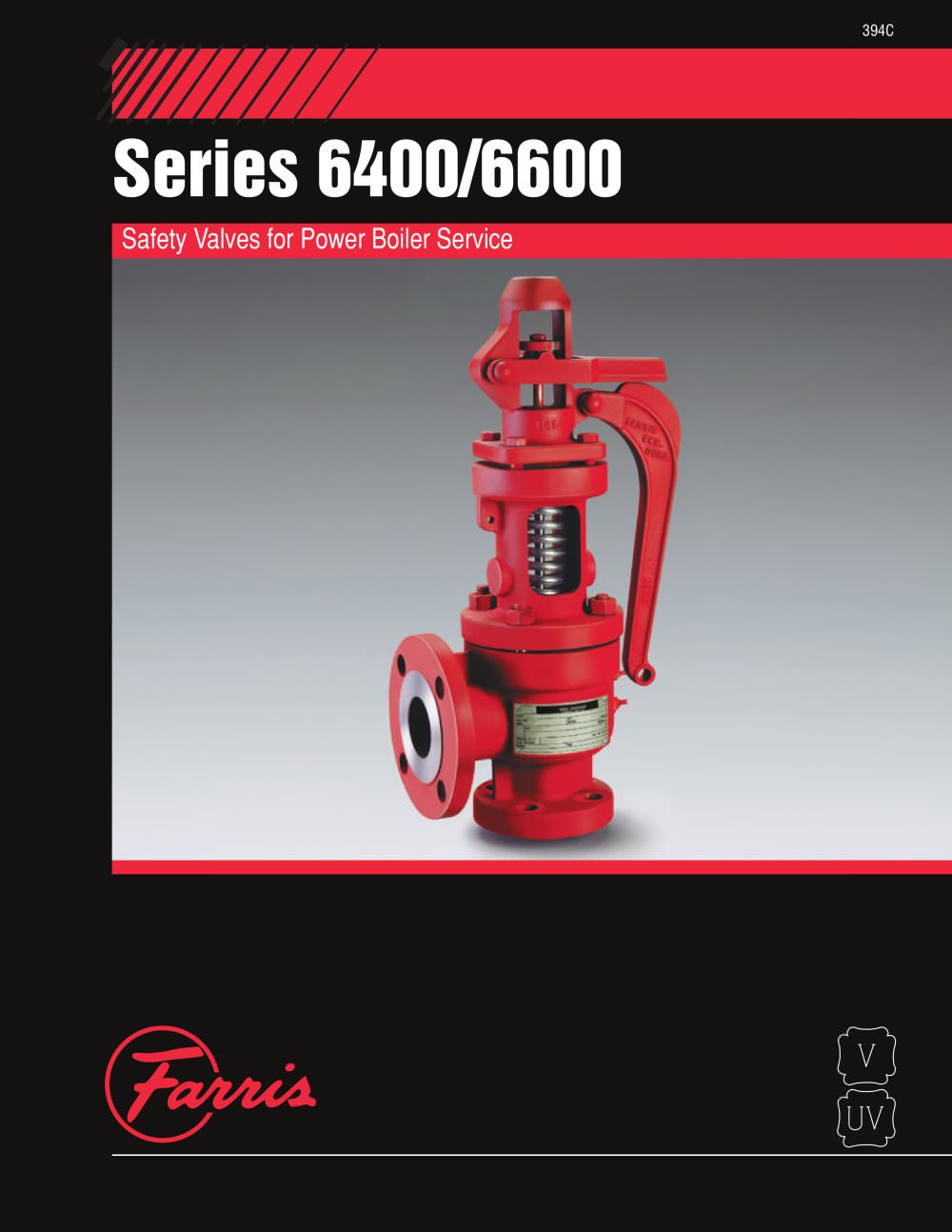

Safety Valves for Power Boiler Service >

Open the catalog to page 1

Full nozzle design forminimized maintenance Օ Hardened conical disc forextended seat life Monel > ծ or copper nickel alloy guides with long guiding ratio for reduced galling used on high temperature mo dels Set pressure to 1500 psig, temperatures to 1000հ F Available in closed bonnetor exposed spring versions Օ Dual blow down ring for more precise performance > Built in conformance to ASME Code Sections I and VIIIfor Steam Service 2 Farris Engineering 2008Monel is a registered trademark of Inco Alloys International, Inc. size="-2">

Open the catalog to page 2

Item No.Part NameMaterial 1Body (up to 800 F)SA-216 GR. WCB Carbon SteelBody (801а F to 1000 F)SA-217 GR. WC6 Alloy Steel (1 1/4 CRЖ1/2 Moly) 2Open Bonnet / Yoke (6400 Series)SA-216 GR. WCB Carbon Steel Closed Bonnet (6600 Series)SA-216 GR. WCB Carbon Steel 3Nozzle316 Stainless Steel 4DiscPrecipitation Hardened St. St. 5Disc HolderPrecipitation Hardened St. St. 6Sleeve Guide (Up to 800 F)300 Series Stainless Steel Sleeve Guide (801а F to 1000 F)Monel 7Guide Plate (note 1)300 Series Stainless Steel 8Guide Bushing(note 1)Monel 9Stem316 Stainless Steel 10Stem Collar316 Stainless Steel 11Blow Down...

Open the catalog to page 3

While this information is presented in good faith and believed to be accurate, Farris Engineering, division of Curtiss-Wright Flow Control Corporation, does not guarantee satisfactory results from reliance on such information. Nothing contained herein is to be construed as a warranty or guarantee, expressed or implied, regarding the performance, merchantability, fi tness or any other matter with respect to the products, nor as a recommendation to use any product or process in confl ict with any patent. Farris Engineering, division of Curtiss-Wright Flow Control Corporation, reserves the right,...
