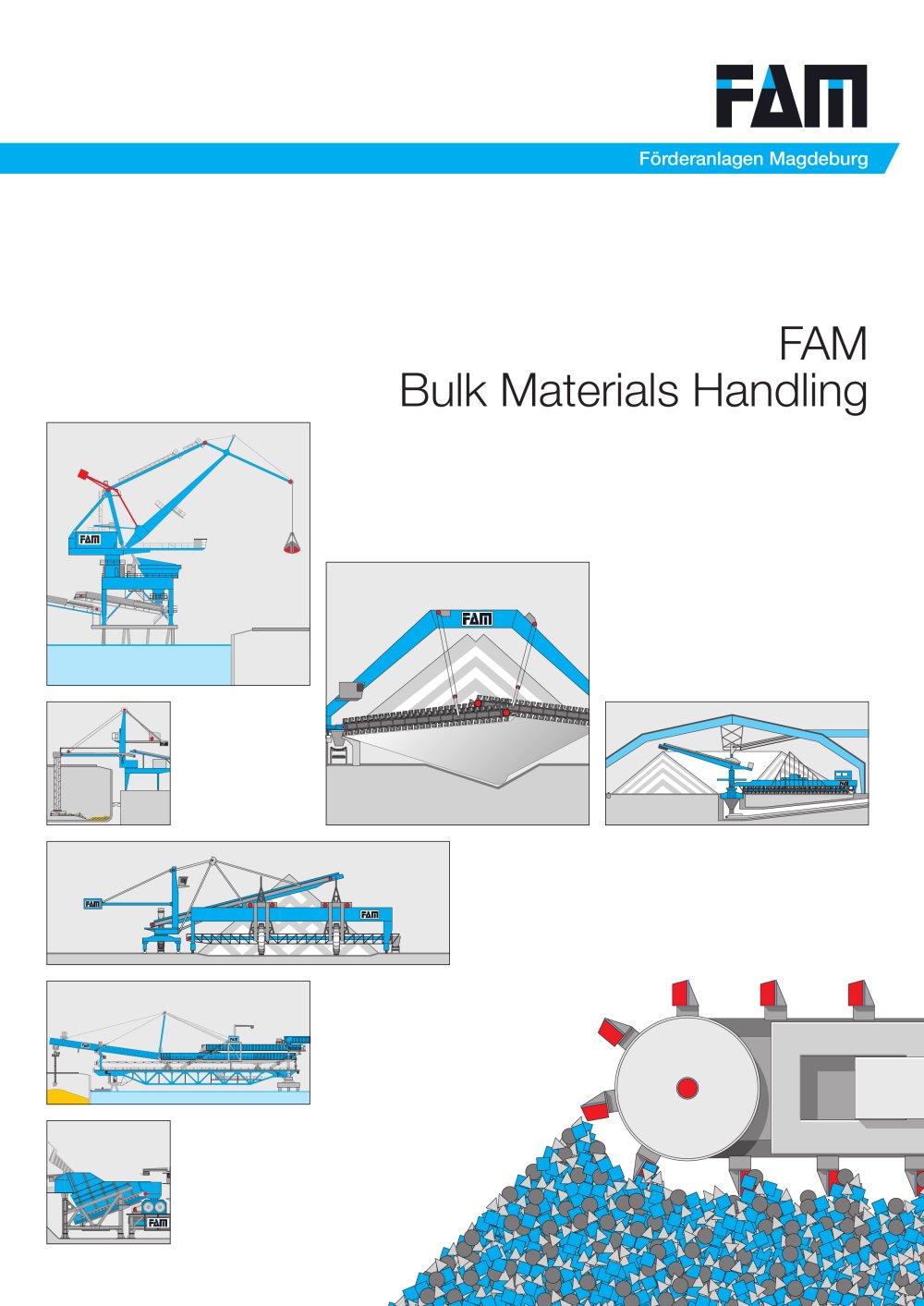

Bulk Materials Handling
36Pages

Frderanlagen Magdeburg FAMBulk Materials Handling >

Bulk Materials for ■ Mining Industry ■ Power Plants > Power plantGermanycoaling installation withlongitudinal stockyardstacker and portalscraper, beltconveyor systemstockyard capacity2 x 57000 thard coal 1000 t/hAsh handlingsilo capacity50000 m ■ Metallurgical Industry ■ Cement Industry ■ Building Material Ind. > 3 ■ Chemicals Industry ■ Fertilizer Industry ■ Port Handling > FGD - plant Germany supplying and disposal material handling installations, limestone longitudinal stockyards with stacker and side scraper, gypsum longitudinal stockyards with portal scrapers, limestone 300 t/h...

Quality assuranceis company philosophy FAM has been awardedthe TV-CERT, certificate acc. to DIN EN ISO 9001. . FAM worldwide 朢֠ References for turn-key installations The Bulk Materials Experts with ■ Efficient and easy-to-handle solutions ■ High standards for quality and safety ■ German know-howEngineering and fabricationin one hand 3 >

Fertilizer worksVenezuelamaterial handlinginstallation withlongitudinal stockyard,lenght of pile 346 m,portal scraperstockyard capacity130000 tbelt conveyor system,belt width 1400 mmfertilizer 1000 t/h Open-cast mineGermany conveying installation, total length 35 km, bulk material distribution point with 4 movable head stations, belt width 2000 mm, hopper car, transfer stations on crawlers, long distance conveyor 4,2 km c-dist., bucket wheel excavator overburden 14000 t/h, coal 4200 t/h 4 FAM Bulk Materials Handling Mining Industry ■ Power Plants ■ Metallurgical Industry ■ Cement Industry ■...

The FAM programmefor stockyard equipment comprises bridge-type reclaimers with bucket wheel, boom-type reclaimers with bucket wheel and combined stacker-reclaimers. > LimekilnGermany pre-crushing and grind-drying plant 1 impact crusher PB 0808 PM 1 impact hammer mill PHM 1212 MR 1 impact hammer mill PHM 1012 RVD limestone 70 t/h Power plantGermanycoaling installation with 3 longitudinal stockyards, 1 stacker, 1 stacker-reclaimer,2 bucket wheel reclaimers, stockyard capacity 3 x 80000 tbelt conveyor system 1800 mm belt widthcoal processing plant with 2 impact hammer mills PHM 1626,...

Large-scale crushing plantCanada 3 semi-mobile in-pit crushing systems with 3 apron feeders AF 3400 x 21, heavy-duty type oil sand 3 x 12000 t/h Large-scale crushing plantCanadain-pit crushing plant with2 apron feeders AF 3400 x 20, heavy-duty type4 belt conveyors, centre distance 400 moil sand 2 x 12000 t/h 6 FAM Mineral Processing ■ Crushing Plants ■ Roller sizers ■ Mineral Grinding Plants ■ Continuous crushers ■ Screening Plants ■ Roller crushers ■ Roller mills ■ Impact crushers ■ Hammer crushers ■ Hammer mills ■ Tube mills ■ Air sifters >

FGD - plant Germany supplying and disposal material handling installations, limestone longitudinal stockyard with stacker and side scraper, gypsum longitudinal stockyard with portal scraper, stockyard capacity 12000 t limestone 300 t/h FGD-gypsum 750 t/h Cement worksGermanymaterial handling installationin quarry with belt wagon on crawlers,supplying and disposal belt conveyor systemsin cement productionlimestone, clinker, cement 2700 t/hCement worksVietnam handling installation with 3 longitudinal stockyards, 2 semi-portal scrapers 1 side scraper stockyard capacity 94400 t silicate, coal,...

Cement worksVietnam shiploader with telescopic chute for bulk cement and shiploader with spiral chute for 50 kg cement bags cement 1000 t/h cement bags 2000 bags/h Cement worksIndiacombined shiploader forbulk materials and bags,alternatively withtelescopic chute forcement or clinker andwith spiral chutefor 50 kg bags,long distance conveyor4.2 km centre distancecement 600 t/hclinker 1650 t/hcement bags2400 bags/h 8 Plant Construction Clearly arranged plant layouts ■ Automated equipment and machines ■ Easy operation ■ Safe plant supervision ■ Low maintenance effort ■ High availability ■ > 22T...

Cement worksVietnamhandling system withgrab ship unloader andstockyard for differentadditivescoal 520 t/hiron ore 220 t/hgypsum 450 t/h Handling systemChile quadrant-type shiploader and conveying system Los Pelambres Project copper concentrate 1900 t/h 9 Loading Installations 梖 Wagon/Truck loading stations "֠ Automatic train loading installations ■ Wagon unloading stations ■ Continuous ship unloaders ■ Continuous shiploaders ■ Combined shiploadersfor bulk materials and bags >

Steel worksGermany stacker boom length 46 m belt width of boom conveyor 1600 mm height of pile 15 m iron ore-pellets 4500 t/hPower plantGermanystackerboom length 18,5 mbelt width of boom conveyor 1200 mmheight of pile 10,5 mlimestone 900 t/h 10 >

Stackers are intended for depositing bulkmaterials into stockpiles or blending beds in circular or longitudinal stocks. Most usual are mobile stackers with raising and lowering booms. Important methods of stockpiling are the large-row deposit as Chevron type and the small-row deposit as Windrow type. > Power plantGermanystackerboom length 38,5 mbelt width of boom conveyor 1200 mmheight of pile 21 mhard coal 1000 t/hCement worksPakistan stacker boom length 19 mbelt width of boom conveyor 1200 mmheight of pile 9,5 m mixture of limestone and clay 1200 t/hCement worksEcuadorstackerboom length...

stackerboom length 30 m belt width of boom conveyor 2200 mm height of pile 15,9 m coal 10500 t/h stackerAs-G 9000.38boom length 38 mbelt widthof boom conveyor 2000 mheight of pile 10 mcoal 9630 t/h 12 FAM Products - Bulk Materials Handling Mining Systems ■ Stockyard Systems ■ Mineral Processing ■ Loading Systems ■ Conveying Systems ■ Port Technology ■ Components ■ >

Power plantCzechiafull-portal scrapertrack 39,6 mheight of pile 13,7 mhard coal 300 t/h Power plantGermany full-portal scraper track 56,2 m height of pile 21 m hard coal 1000 t/h Scraper reclaimers andbucket wheel reclaimers are intended for continuous reclaimingeven of such bulk materials which tend to pasting or compacting. In such a case removal is done by side and portal scrapers at the side of the stockpile as well as with bridge-type scrapers and bucket wheel reclaimers at the front of the stockpile or blending bed. 13 >
