Bumper Material Information
Bumper Material Information
1. Neoprene (Chloroprene): Offers flame and weather resistance, resists gasoline, oil, ozone, and high temperatures. Affected by phosphate hydraulic fluids and aromatic hydrocarbons. Service temperature ranges from -40°F to 250°F.
2. Urethane (Di-Isocyanate Polyurethane): Known for high abrasion resistance, strength, and load-bearing capacity. Resistant to ozone and oxygen but affected by ether, esters, acids, aromatics, and alkalis. Service temperature ranges from -65°F to 250°F.
3. White Nitrile (Nitrile Butadiene): Resistant to gasoline, oil, alcohol, and abrasion. Affected by degreaser solvents. Service temperature ranges from -60°F to 225°F.
Durometer ratings are based on Shore A scale, ranging from 20 (stiff foam rubber) to 95 (hockey puck). Urethane color guide includes yellow (35), blue (60), red (80), and orange or black (95).
- Tensile Strength: Urethane (4), Neoprene (3.5), White Nitrile (2)
- Ozone Resistance: Urethane (4), Neoprene (2.5), White Nitrile (1)
- Abrasion Resistance: Urethane (4), Neoprene (3.5), White Nitrile (2.5)
- Resistance to Chemicals: Urethane shows excellent resistance to ASTM oils and aliphatics, while Neoprene and White Nitrile have varying resistance levels to different chemicals.
Urethane covered bearings and press fit rollers in 95A are black, while other rollers in 95A are orange. All Nitrile rollers and bumpers are white, and all Neoprene rollers and bumpers are black.
Catalog excerpts

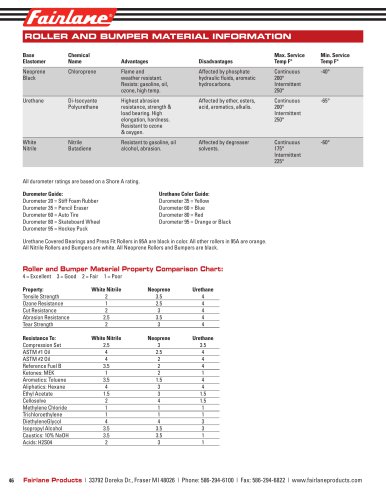

ROLLER AND BUMPER MATERIAL INFORMATIONBase Elastomer Chemical Name Advantages Disadvantages Max. Service Temp F° Min. Service Temp F° Neoprene Flame and weather resistant. Resists: gasoline, oil, ozone, high temp. Affected by phosphate hydraulic fluids, aromatic hydrocarbons. Highest abrasion resistance, strength & load bearing. High elongation, hardness. Resistant to ozone & oxygen. Affected by ether, esters, acid, aromatics, alkalis. Resistant to gasoline, oil alcohol, abrasion. Affected by degreaser solvents. All durometer ratings are based on a Shore A rating. Durometer Guide: Durometer 20 = Stiff Foam Rubber Durometer 35 = Pencil Eraser Durometer 60 = Auto Tire Durometer 80 = Skateboard Wheel Durometer 95 = Hockey Puck Urethane Color Guide: Durometer 35 = Yellow Durometer 60 = Blue Durometer 80 = Red Durometer 95 = Orange or Black Urethane Covered Bearings and Press Fit Rollers in 95A are black in color. All other rollers in 95A are orange. All Nitrile Rollers and Bumpers are white. All Neoprene Rollers and Bumpers are black. 4 = Excellent 3 = Good 2 = Fair 1 = Poor Property: White Nitrile Neoprene Urethane Tensile Strength_2_3J5_4 Compression Set ASTM #1 Oil ASTM #2 Oil Reference Fuel B Ketones: MEK Aromatics: Toluene Aliphatics: Hexane Ethyl Acetate Cellosolve Methylene Chloride Trichloroethylene DiethyleneGlycol Isopropyl Alcohol Caustics: 10% NaOH Acids: H2S04 White Nitrile 46 Fairlane Products | 33792 Doreka Dr., Fraser MI 48026 | Phone: 586-294-6100 | Fax: 586-294-6822 | www.fairlaneproducts.com
