Series II General Purpose Bench Scale

Product catalog summary

Overview: The document provides detailed information about Fairbanks' General Purpose Bench Scales, specifically the Series II and Series III models. These scales are designed for various applications including food manufacturing, inventory management, manual batching, and shipping and receiving.

Key Features:

Overload Protection: Both Series II and III include overload stops to prevent damage to the scale's load cells.
Portability: The scales are portable with an adjustable pillar that wraps around the base for easy transport.
Display and Controls: Equipped with a large 1-inch, 6-digit LCD display with backlighting and programmable buttons for various functions.
Construction: Stainless steel platform covers and a durable welded tubular base design ensure longevity and ease of cleaning.
Power Supply: Both models feature a rechargeable battery providing over 48 hours of continuous use.

Specifications:

Platform Sizes: Series II offers 13” x 17” and 15” x 20” sizes, while Series III offers 14” x 18” and 18” x 24”.
Capacity: Ranges from 60 to 600 lbs depending on the model and platform size.
Resolution: 3,000d commercial with selectable non-commercial options.
Power Requirements: 110-120 VAC with a 9V/500 mA AC adapter.
Communication: RS232 printer port for quick connection.
Approvals: NTEP approved for legal trade in the U.S.; Canadian approval pending.

Applications: These scales are suitable for a wide range of industrial applications including portion weighing, parts counting, and quality assurance.

Additional Information: Fairbanks Scales has been a leader in the scale industry since 1830, and their products are manufactured in compliance with ISO 9001:2000 standards.

Catalog excerpts

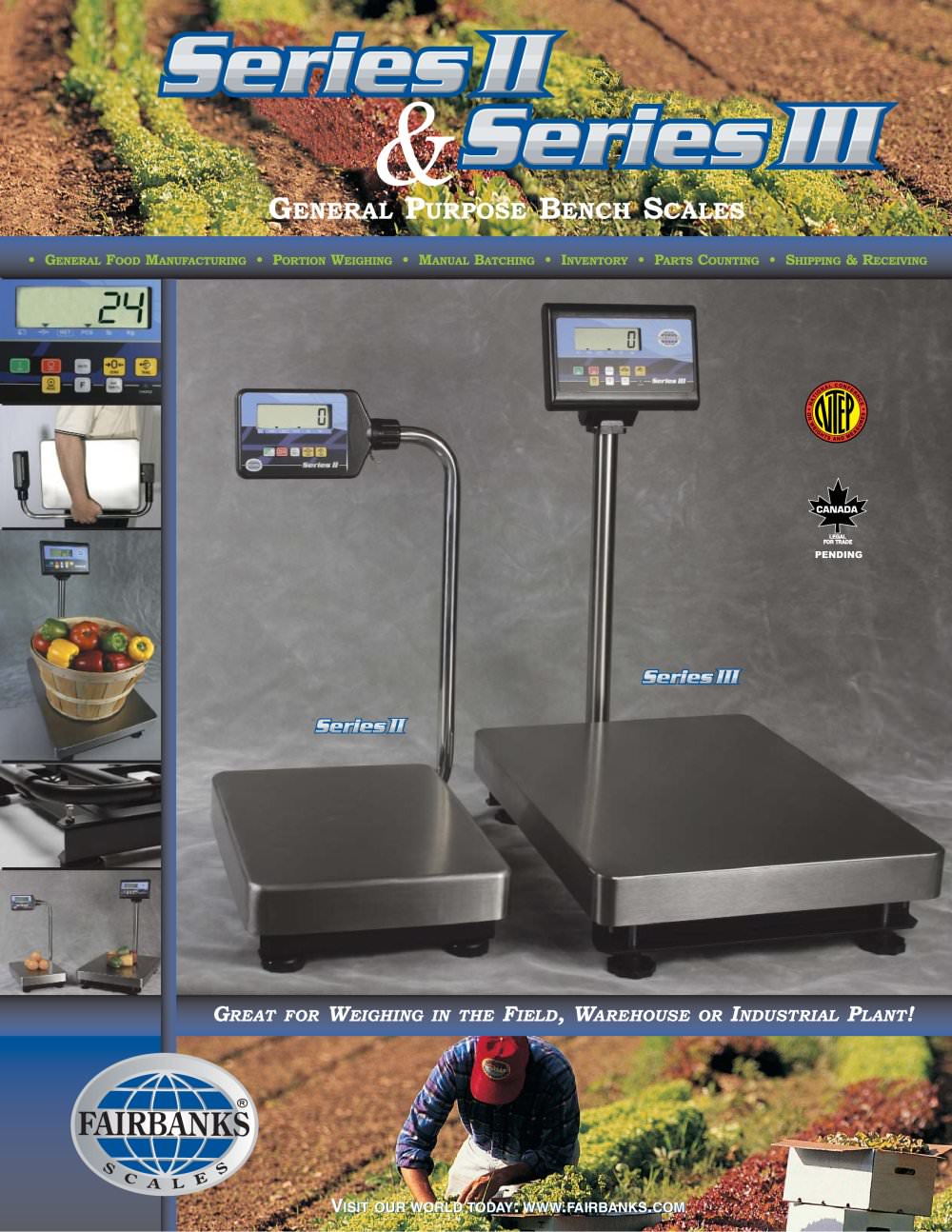

Series II General Purpose Bench Scale -1

G > ENERAL F > OOD M > ANUFACTURING Օ P > ORTION W > EIGHING M > ANUAL B > ATCHING Օ I > NVENTORY P > ARTS C > OUNTING Օ S > HIPPING & R > ECEIVING PENDING ISITOURWORLDTODAY ISITOURWORLDTODAY FAIRBANKS FAIRBANKS

Open the catalog to page 1

Series II General Purpose Bench Scale -2

New to the Fairbanks product line is an exciting stainlesssteel bench scale that offers exceptional general weighing features at a very affordable price.The Series II was designed to fulfill many weighingrequirements from inventory and parts counting, to foodmanufacturing, to shipping and receiving. With FairbanksՒ quality craftsmanship at its core, this scale is made to pro- vide years of uninterrupted, accurate performance. Fully-charged battery provides more than 48 hours of continuous use! Large 1, 6-digit,LCD display with backlighting function thatcan be engaged for increased visibility.Five...

Open the catalog to page 2

Series II General Purpose Bench Scale -3

II , the Series III can fulfillmany weighing requirements and offers the accuracy anddependability that has stood behind every Fairbanks Scale since the companys founding in 1830. > The Series III Bench Scale features an internal,rechargeable battery which makes it an optimum choicefor outdoor produce weighing applications. It is also a heavyweight in industrial settings with its heavy-duty, double tubular, base design, industrial-sizestainless steel platforms, and RS232 printer port.Like its sister scale, the Series > A6-digit LCD displaywith large numericreadout and backlighting makes viewingeasy...

Open the catalog to page 3
