QuickSilver Series Bench Scales

Product catalog summary

Overview: The document provides detailed information about stainless steel bench scales designed for ready-to-eat food, chemical, and pharmaceutical applications. These scales are noted for their quick weighing, checkweighing, and cleaning capabilities.

Key Features:

Constructed from Type 304 stainless steel with a Nema 4X indicator enclosure.
Conformal coated electronic circuit boards for protection.
Stainless steel load cell on most models.
Pillar offset design to prevent moisture ingress.
Antimicrobial coating available as an option.
Highly visible blue vacuum fluorescent display.
Easy access calibration switch.

Sanitary Design:

Open corners and large openings for easy cleaning and drainage.
500% scale overload protection.
Joint spacers to eliminate bacteria hiding spots.
AgION™ antimicrobial coating option for the weighing surface.

Specifications:

Capacities range from 2 to 1000 lbs with platform sizes from 10” x 10” to 24” x 24”.
Resolution of 5,000 divisions.
Indicator features include tilt adjust and zero/auto tare toggle switch.
RS 232C Serial Output and Ethernet options available.
Power requirements: 100-130 VAC or 200-240 VAC.

Applications: Suitable for gross weighing, gross/tare/net weighing, manual batching, filling, blending, and over/under checkweighing with three modes for sensitivity parameters.

Compliance and Approvals: Complies with NTEP COC #94-100A1 and Underwriters Laboratory safety requirements. The design meets the American Meat Institute’s Sanitary Design Checklist standards.

Additional Information: The document includes a chart detailing capacities, graduation sizes, and dimensions for various models. Leasing options are available through Fairlease.

Catalog excerpts

APPROVED LOAD CELLS > R size="-2">

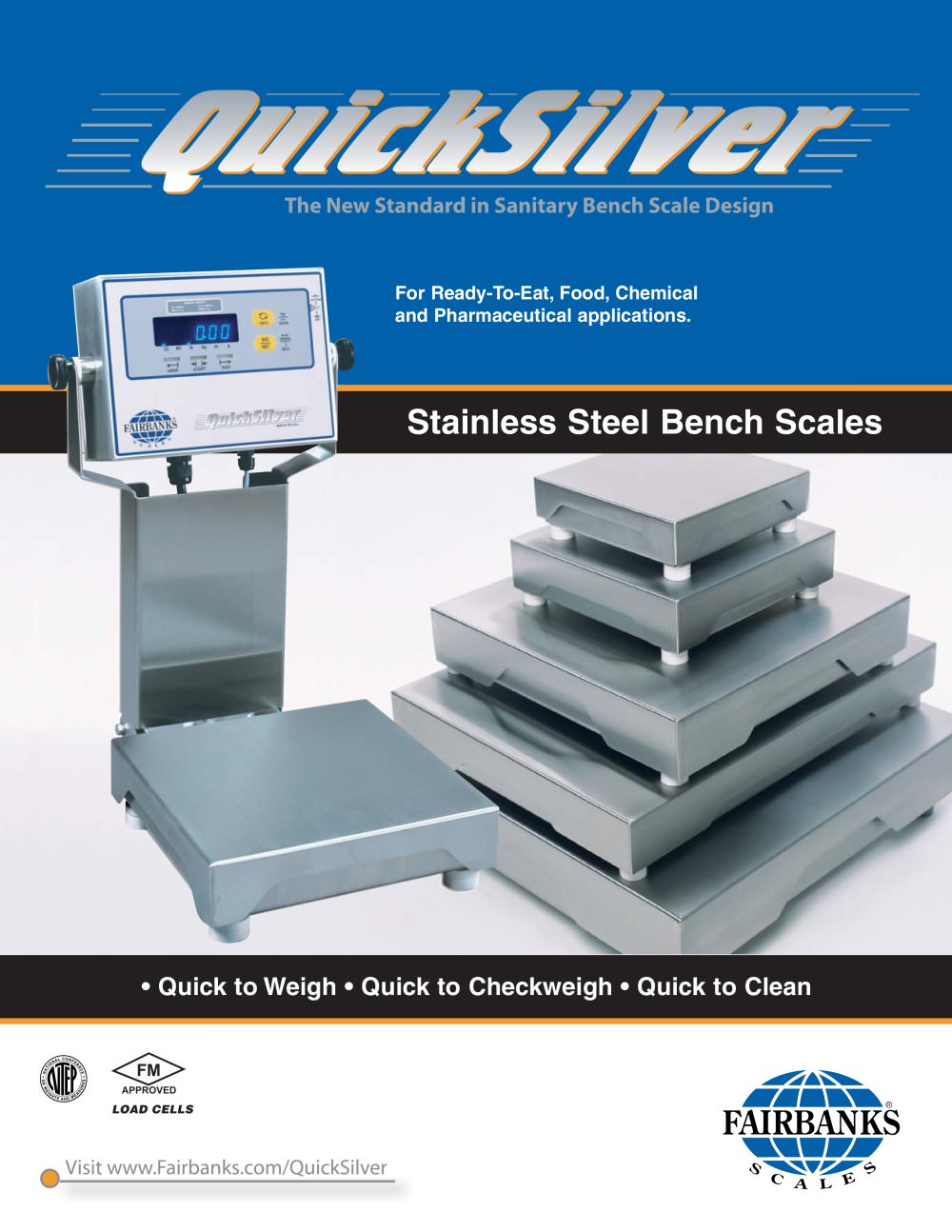

Open the catalog to page 1

Capacities (Chart on back). . . . . . . . . . 2 to 1000 lbs.Platform Sizes (Chart on back). . . . . . . 10x 10Ԕto 24x 24Ԕ;. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Type 304 Stainless Steel Resolution. . . . . . . . . . . . . . . . . . . . . . . 5,000 divisions Indicator. . . . . . . . . . . . . . . . . . . . . . . . Tilt adjust;Zero/Auto Tare Toggle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Switch;. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Easy Access Calibration SwitchDisplay. . . . . . . . . . . . . . . . . . . . . . . . . Highly visible,...

Open the catalog to page 3
