Matrix Series Configurable Truck Weighing System

Product catalog summary

Overview
The Configurable Truck Weighing System by Fairbanks Scales offers a cost-effective solution for obtaining legal-for-trade vehicle weights. It is designed for various applications including warehouse facilities, equipment weighing, moving and shipping, and service companies. The system is customizable and innovative, allowing users to build a Matrix scale in six easy steps.

Configuration Process
The Matrix system can be customized by selecting axle weighing platforms based on application and truck sizes, adding approach and exit ramps, and choosing accessories such as scale instruments or remote terminal units. The system uses steel platforms under each set of truck axles and concrete modules (dead spans) between platforms, reducing costs by eliminating the need for a traditional foundation.

Special Features
The Matrix system features a low 6-inch profile for easy maneuvering, optional sectional controllers for lightning and surge protection, and encapsulated circuit boards for moisture resistance. It captures both gross weight and individual axle weights, and can be installed on a level, unyielding surface without the need for permits or foundation construction.

Specifications

Weighing Platforms: Standard width of 10 feet, lengths of 7, 10, 14, 17, and 20 feet, capacities from 60 to 135 tons, and constructed from structural steel.
Dead Span Modules: Made from composite concrete with structural steel frames and Nelson studs, requiring field pour concrete.
Load Cell Data: Capacity of 50,000 lbs, 3.5-inch rocker column type, 1,000 ohms resistance, 2.0 mV/V output, stainless steel material, and complete hermetic seal.

Advantages
The Matrix system requires less real estate and can be relocated easily. It offers a low profile for easy vehicle access and provides robust protection against electrical disturbances. The system is suitable for weighing almost any vehicle and does not require a new foundation for relocation.

Contact Information
For more information, contact Fairbanks Scales at (800) 451–4107 or visit their website at www.fairbanks.com.

Catalog excerpts

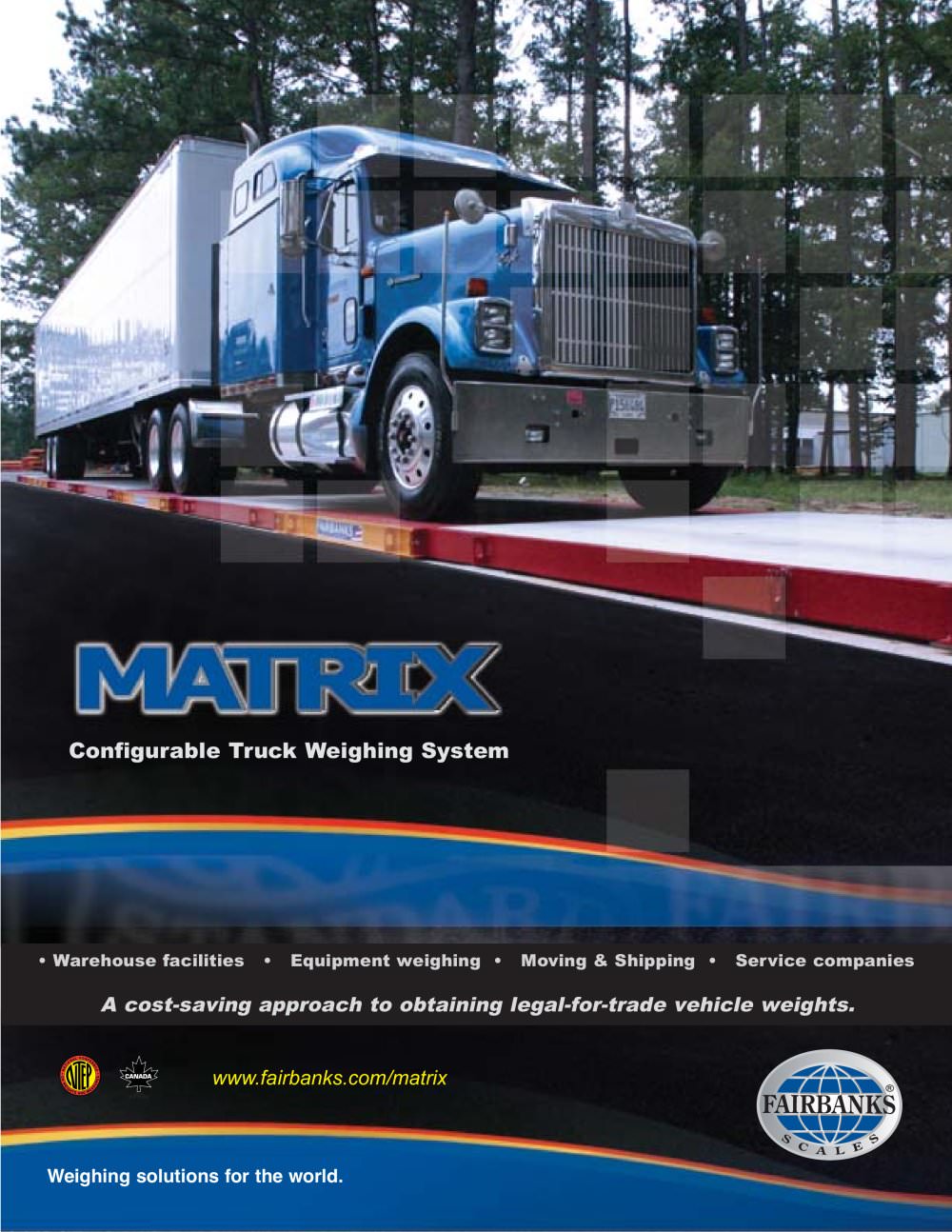

Matrix Series Configurable Truck Weighing System -1

Warehouse facilities Օ Equipment weighing Moving & Shipping Օ Service companies A cost-saving approach to obtaining legal-for-trade vehicle weights. www.fairbanks.com/matrix > Weighing solutions for the world. size="-1">

Open the catalog to page 1

Matrix Series Configurable Truck Weighing System -2

. Build a Matrix your way. Matrix steel platforms are 10 feet wide and come instandard lengths of 7, 10, 14, 17 and 20 feet. Configuring multiple platforms with variable length, steel-framed concrete dead span modules allows the system to be customized to fit a broad range of loading scenarios > Select axleweighingplatformsbased onapplication truck sizes.Selectapproaches(if required atyour location). Add customlength, concrete,dead spans.Protect yourscale with snow/debris covers. > Add an approachramp andexit ramp. Select accessoriessuch as a Fairbanks scale instrument orremote terminal unit....

Open the catalog to page 2

Matrix Series Configurable Truck Weighing System -3

Optional sectionalcontrollers opticallyisolate load cells, providing the greatest lightning and surge protection available.This innovativedesign feature digitizes your signal and guards your scale investment against power surges and electrical strikes. Encapsulated circuit boards are imperviousto moisture. The same encapsulating material has been used in mission critical aerospace applications. > abovegrade Low 6Ԕ profile allows for easy maneuvering on the Matrix. > Capacity. . . . . . . . . . . . . . . . . 50,000 lbsType. . . . . . . . . . . . . . . . . . . . . 3.5Rocker column Resistance. ....

Open the catalog to page 3

Matrix Series Configurable Truck Weighing System -4

Call toll-free for the representative nearest you: > Call between 8:00 a.m.֖ 5:00 p.m.CSTCorporate Offices:821 Locust Kansas City, MO 64106 Օ (816) 4710231Internet Address:http://www.Fairbanks.com Models and specifications subject to change without notice.֩Fairbanks Scales Inc. 11/07100280 >

Open the catalog to page 4
