CNC Accessories
Product catalog summary

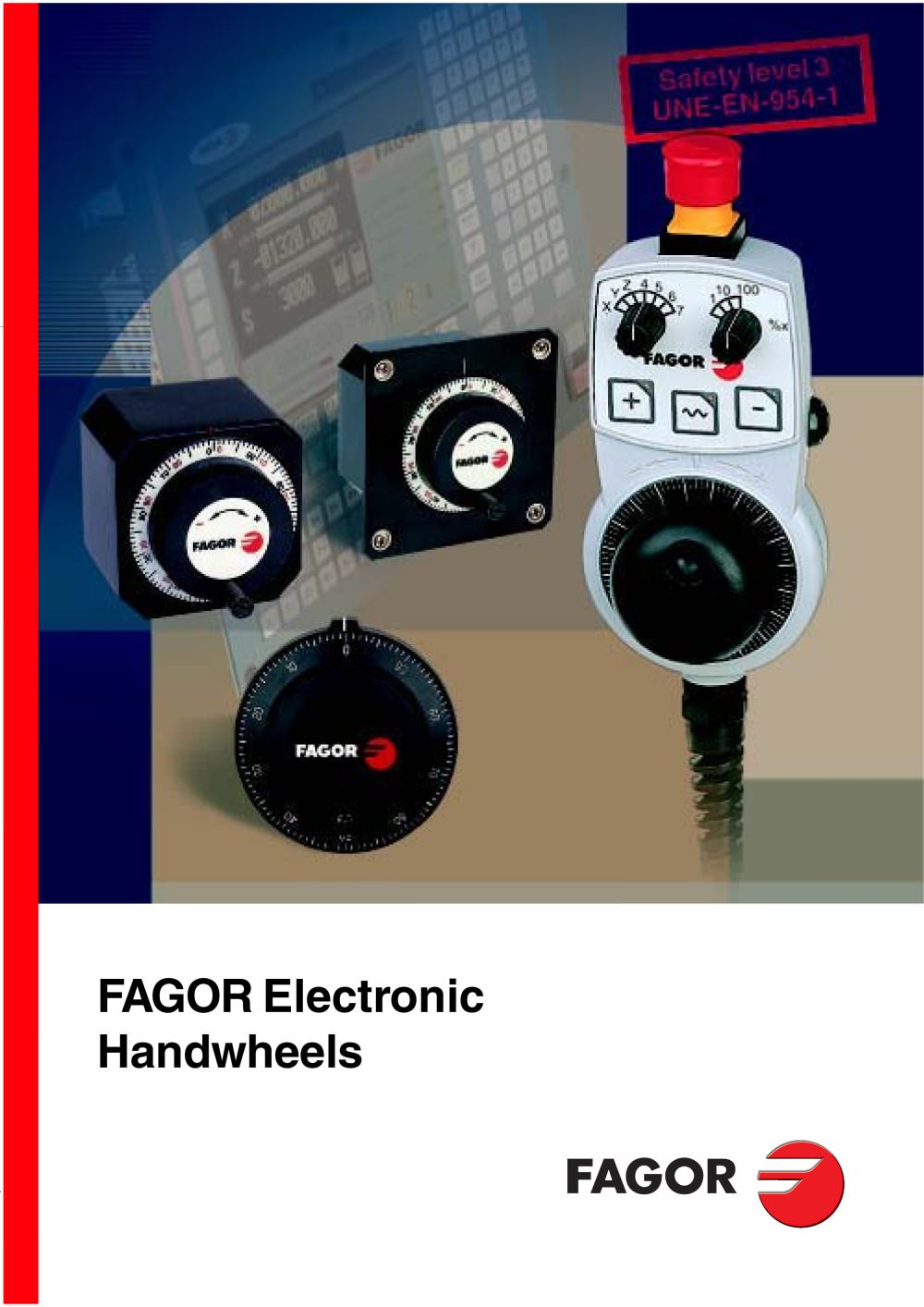

Overview: The document provides technical specifications and features of FAGOR Electronic Handwheels, specifically models 100P (Portable) and 100E (Built-in). These handwheels are used in machine tool control systems.
Specifications:
- Pulses per Turn: 100 pulses for 5V differential TTL output.
- Supply Voltage: 5V for 100 pulses/turn; 24V (10-30 Vdc) for 25 pulses/turn.
- Output Signals: Two A and B pulse trains shifted 90º.
- Turning Speed: Maximum 600 rpm.
- Life Expectancy: Over 1 million turns at 200 rpm.
- Sealing: IP-53 (DIN 40050).
- Weight: 0.2 kg.
- Operating Temperature: Between -10 ºC and 60 ºC.
Features:
- Axis selector push button available in model 100P.
- Emergency push button with dual channel circuit for safety.
- Double enable push button with double channel circuit.
- Selector switch for 7 axes and resolution selector switch (x1, x10, x100).
- Keyboard for axis jog with LED indicator.
- Cable length up to 3.5 meters with 23-pin male connector.
Certifications: FAGOR Automation holds ISO 9001 Quality System Certificate and CE Certificate for all its products.
Company Information: FAGOR Automation is part of the Mondragon Cooperative Corporation, a major European corporation with over 160 companies. The company exports more than 65% of its production globally, ensuring a robust distribution and after-sales service network.
See more
Catalog excerpts
Pulse generator:- 24 Volts (10-30 Vdc) 25 pulses / turn (model HBA-072915). - 5V differential TTL ֖ 100 pulses / turn (model HBA-072914). Emergency push button: dual channel circuit forenhanced safety.Double enable push button with double channel circuit. Selector switch for 7 axes.Resolution selector switch (x1, x10, x100).Keyboard for axis jog (-, ~, +) with LED indicator. Cable up to 3.5 meters (extended).23-pin male connector at the end, and matchingreceptacle type female for the electrical cabinet,pendant enclosure or control desk. > 23-PIN PLUG CONNECTOR FEMALE CONNECTOR MAGNETICHOLDINGPAD...
