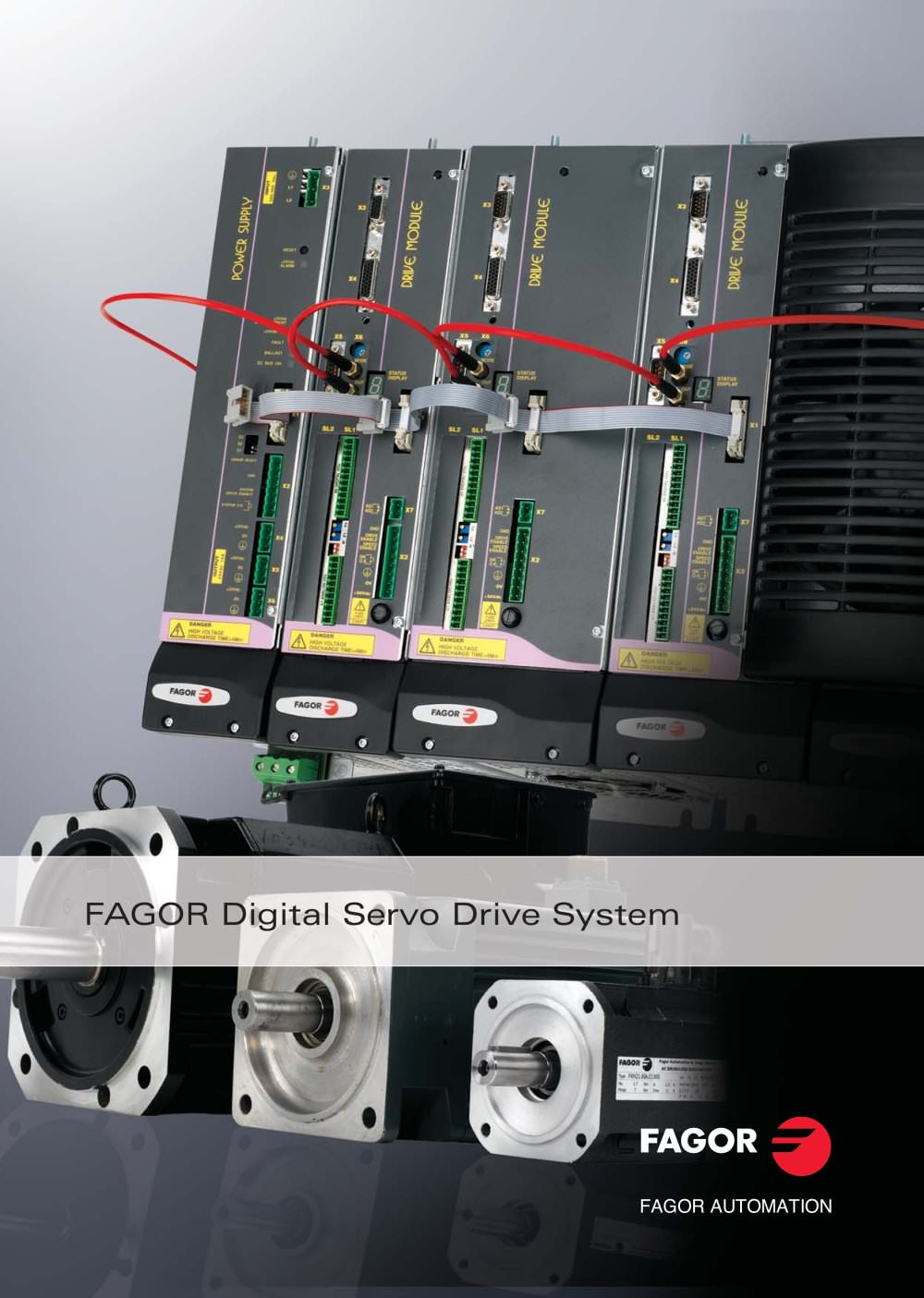

FAGOR Digital Servo Drive System
12Pages

Fagor Automation S. Coop. (Mondragón) Bº San Andrés, 19 P.O.Box 144 E-20500 Arrasate-Mondragón, Spain Tel. 34 943 719 200 34 943 039 800 Fax: 34 943 791 712 E-mail: info@fagorautomation.es www.fagorautomation.com ER-073/1994 ER-0968/1999 Fagor Automation S. Coop. (Usurbil) Bº San Esteban, s/n Txoko Alde E-20170 Usurbil, Spain Tel. 34 943 71 92 00 Fax: 34 943 360 527 E-mail: usurbil@fagorautomation.es EUROPE DE- Fagor Automation GmbH (Göppingen) Tel. 49 7161 15 685-0 Fax: 49 7161 15 685 79 ES- Fagor Automation Catalunya (Barcelona) Tel. 34 934 744 375 Fax: 34 934 744 327 FR- Fagor Automation France S.à.r.l. (Clermont Ferrand) Tel. 33 473 277 916 Fax: 33 473 150 289 GB- Fagor Automation UK Ltd. (West Midlands) Tel. 44 1327 300 067 Fax: 44 1327 300 880 IT- Fagor Italia S.R.L. (Milano) Tel. 39 0295 301 290 Fax: 39 0295 301 298 PO- Fagor Automation Ltda. (Leça da Palmeira) Tel. 351 229 968 865 Fax: 351 229 960 719 RU- Fagor Automation Russia (Moscow) Tel. 7 926 795 29 12 AMERICA This corporation is formed by more than 250 companies and more than 100,000 employees in 4 sectors: financial, industrial, distribution and knowledge (training and R&D centers). Fagor Automation is integrated in the industrial area and focuses their efforts on increasing their presence in the traditional sectors where it operates (machine tool) as well as in other emerging industrial sectors: photovoltaic, metrology, semi-conductors, electro-medicine, etc. covering the current market needs for industrial automation. They have gained the confidence of a great number of manufacturers and users by investing 10% on R&D and exporting 80%. They have a solid commercial network in 50 countries with almost 30 subsidiaries or branch offices, more than 45 distributors and service centers. ASIA CN- Beijing Fagor Automation Equipment Co., Ltd. (Beijing) Tel. 86 10 84505858 Fax: 86 10 84505860 Beijing Fagor Automation Equipment Ltd. (Nanjing) Tel. 86 25 83 32 82 59 Fax: 86 25 83 32 82 60 Beijing Fagor Automation Equipment Ltd. (Chengdu) Tel. 86 28 66 13 20 81 Fax: 86 28 66 13 20 82 Beijing Fagor Automation Equipment Co., Ltd. (Guangzhou) Tel. 86 20 86 55 31 24 Fax: 86 20 86 55 31 25 Beijing Fagor Automation Equipment Co., Ltd. (Shanghai) Tel. 86 21 63 53 90 07 Fax: 86 21 63 53 88 40 HK- Fagor Automation (Asia) Ltd., (Hong Kong) Tel. 852 23 89 16 63 Fax: 852 23 89 50 86 IN- Fagor Control System Pvt. Ltd. (Bangalore) Tel. +91 (0)8042682828 Fax: +91 (0)8042682816 KR- Fagor Automation Korea, Ltd. (Seoul) Tel. (822) 21130341 / 2113 0342 Fax: (82 2) 2113 0343 MY- Fagor Automation (M) SDN.BHD. (Kuala Lumpur) Tel. 60 3 8062 2858 Fax: 60 3 8062 3858 SG- Fagor Automation (S) Pte. Ltd. (Singapore) Tel. 65 68417345 / 68417346 Fax: 65 68417348 TW- Fagor Automation Taiwan Co. Ltd. (Taichung) Tel. 886 4 23851558 Fax. 886 4 23851598 agoranet - DDS - 0708 EN - D.L. BI-2487 / 08 Fagor AUTOMATION is a cooperative enterprise that is part of Mondragón Corporation, the 7th largest business group in Spain. BR- Fagor Automation do Brasil Com. Imp. Exp. Ltda. (São Paulo) Tel. 55 11 56 94 08 22 Fax: 55 11 56 81 62 71 CA- Fagor Automation Ontario (Mississauga) Tel. 1 905 670 74 48 Fax: 1 905 670 74 49 Fagor Automation Quebec (Montreal) Tel. 1 450 227 05 88 Fax: 1 450 227 61 32 Fagor Automation Windsor (Canada) Tel. 1 519 944 56 74 Fax: 1 519 944 23 69 US- Fagor Automation Corp. (Chicago) Tel. 1 847 98 11 500 Fax: 1 847 98 11 311 Fagor Automation West Coast (California) Tel. 1 714 957 98 85 Fax: 1 714 957 98 91 Fagor Automation East Coast (New Jersey) Tel. 1 973 773 35 25 Fax: 1 973 773 35 26 Fagor Automation Ohio Branch (Ohio) Tel. 1 614 855 5720 Fax. 1 614 855 5928 Fagor Automation South East (Florida) Tel. 1 813 654 45 99 Fax: 1 813 654 3387 FAGOR Digital Servo Drive System Fagor Automation holds the ISO 9001 Quality System Certificate and the CE Certificate for all its products. FAGOR AUTOMATION shall not be held responsible for any printing or transcribing errors in this catalog and reserves the right to make any changes to the characteristics of its products without prior notice. FAGOR AUTOMATION Worldwide reliability FAGOR AUTOMATION

Servo drive systems It is a configurable system that controls several axes and the spindle. The Power supply module (PS, XPS or RPS ) is connected directly to 400460Vac mains and it supplies to the servo drive modules installed: Axis drives (AXD) Spindle drives (SPD) Power supplies Non-regenerative MODEL PS-65A Mains Voltage supply for the drive's control circuit Regenerative PS-25B4 XPS-25 Regenerative regulated XPS-65 Three-phase from 360 to 506 VAC RPS-20 RPS-45 RPS-75 24 VDC (between 21-28 VDC) Output voltage ( power BUS ) 600, 625 or 725 VDC. They are programmable. 565-650 VDC 65 Kw...

FXM Synchronous AC motors Drive configuration To control axes in machine-tool applications DIRECT FEEDBACK ( optional ) There are motors of 1200, 2000, 3000 and 4000 rpm and size 5 and size 7 motors offer the option of being electro-ventilated. ENCODER SIMULATOR BOARD ( optional ) Real axis position feedback, usually through a linear or rotary encoder. It outputs a number of pulses per motor turn that can be set by parameter (any value between 1 and 16,384 ppt, programmable reference mark (Io), differential TTL). MOTOR FEEDBACK BOARD MODEL FXM 11 FXM 12 FXM 13 FXM 14 FXM 31 FXM 32 FXM 33...

Dimensions in mm E03 series FM7 spindle motors have forced fan cooling and double winding (star / triangle) The can reach speeds of up to 12,000 rpm and 15,000 rpm. MODEL L LA LB LC I KL Shaft KI Q S FM7-D055-S1D0-E03 215 180 h7 204 270 158 204 60 28 h6 506 215 180 h7 204 270 164 250 60 28 h6 FM7-D110-S1D0-E03 556 265 230 h7 250 343 183 279 80 38 h6 FM7-D150-S1D0-E03 556 265 230 h7 250 343 183 279 80 38 h6 FM7-D185-S1D0-E03 618 265 230 h7 250 343 183 279 80 38 h6 FM7-D220-S1D0-E03 665 265 230 h7 250 343 183 279 80 38 h6 FM7-D075-S1D0-HS3 715 215 180 h7 204 271 158 250 60 28 h6...

Dimensions in mm E03 series FM7 spindle motors have forced fan cooling and double winding (star / triangle) The can reach speeds of up to 12,000 rpm and 15,000 rpm. MODEL L LA LB LC I KL Shaft KI Q S FM7-D055-S1D0-E03 215 180 h7 204 270 158 204 60 28 h6 506 215 180 h7 204 270 164 250 60 28 h6 FM7-D110-S1D0-E03 556 265 230 h7 250 343 183 279 80 38 h6 FM7-D150-S1D0-E03 556 265 230 h7 250 343 183 279 80 38 h6 FM7-D185-S1D0-E03 618 265 230 h7 250 343 183 279 80 38 h6 FM7-D220-S1D0-E03 665 265 230 h7 250 343 183 279 80 38 h6 FM7-D075-S1D0-HS3 715 215 180 h7 204 271 158 250 60 28 h6...
