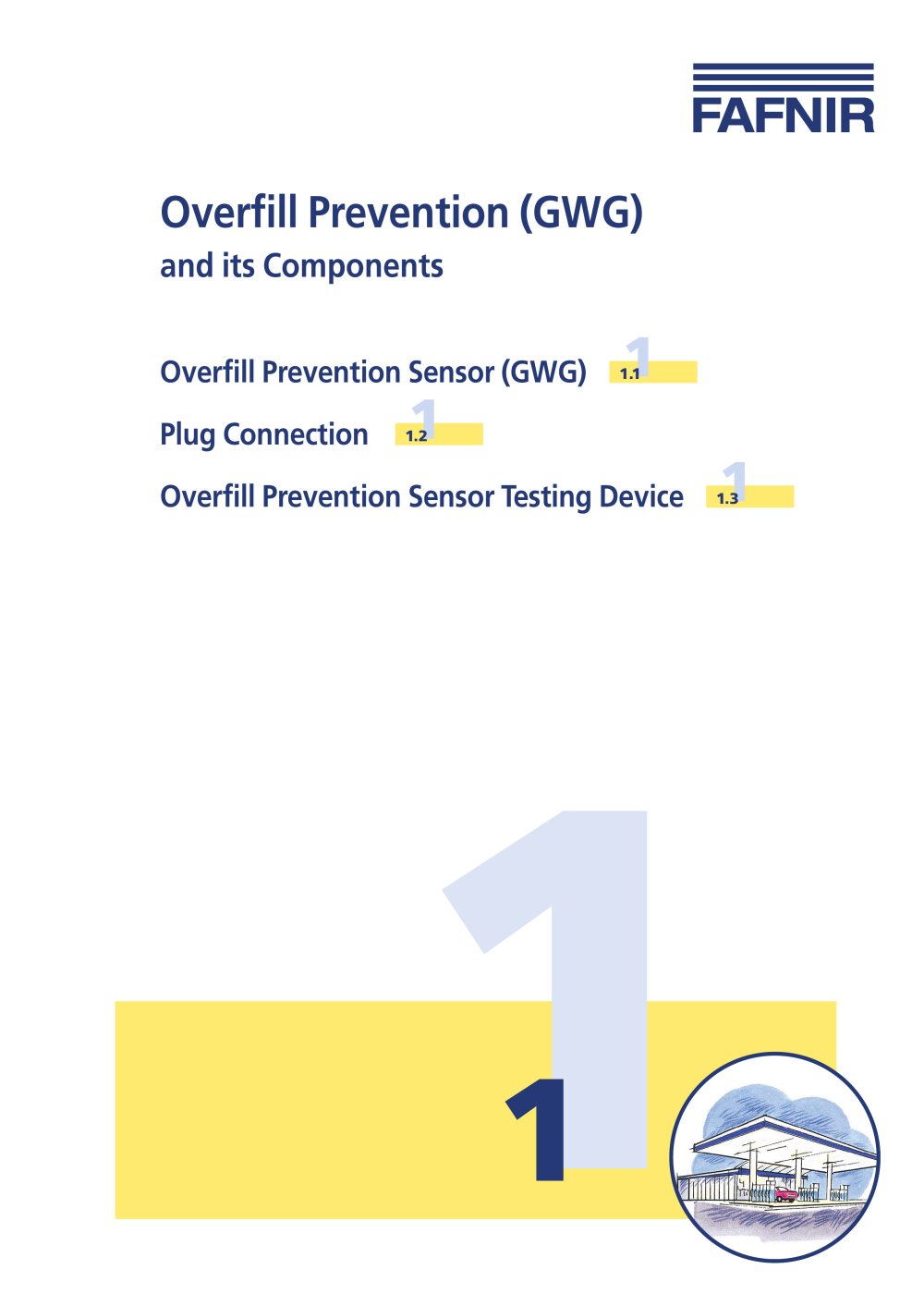

Overfill Prevention (GWG) and its Components Overfill Prevention Sensor (GWG)Plug Connection Overfill Prevention Sensor Testing Device 1.1 1 > 1.2 1 > 1.3 1 >

Open the catalog to page 1

The filling sensor is a safetymechanism to prevent overfilling of storage and bunker tanks whenthey are filled with gasoline, diesel,and fuel oil from road tankers. It consists of a level sensor inside the tank and a amplifier with valve inside the road tanker.The QSS/ASS plugs are part of asafety system that prevents theblending of products due to a faultyconnection and that checks the hoseconnection to the road tankerduring the filling process. > The overfill prevention sensor GWGwith tube plug type 907 Overfill prevention sensor: GWGQuality assurance system or product detection: QSS...

Open the catalog to page 3

GWG-, QSS-,ASS-SignalsFuel > Connecting cablewith junktion boxOverfill preventionsensor with tube plugs The GWG consists of: Sensor element Height adjustable probe tube(optional: telescopic tube for plugs) Screw-in unit Plugs: optional Tube plugs with flanged plug-in unit and protective basket֖ Junction box for long distance connection Materials: Separate wall plugs with flanged plugin unit and protective basket Parts in contact with product: brass, stainless steel, galvanisedspring steel, solder, viton, ultradur > Plugs: brass and nickel-plated brass Three different designs are...

Open the catalog to page 4

Plug for wall installationType 907Plug for tube installationType 907 Manufacturer, Type and probe lengths engravedMarking slot G 1Screw-in unit SW 41Gland bolt SW 36Tightening Screw SW 5 Junction box Bore 5 (2x) turned by 90 91 105 Probe lengths (100-3,000 mm)301842150Adjusting sizeControl size ذ Screwed cable gland PGConnecting cable 2 x 1 mm 2 Threshold pointThreshold point24 ؘ606055SW 5229 Dimensions in mm For type 83 UV: DIN 6608, 6616, 6617, 6619, 6623, 6624 and TGL 5315 gasoline according to 51600/51607,aviation gasoline, aviation turbine kerosene For type 84 UVT: DIN 6608, 6616,...

Open the catalog to page 5

The product regognition QSS is adevice to prevent the mixing offuels or other liquids during thefilling of a storage or bunker tank from a road tanker. The filling hose safety device ASSmonitors the correct connection of the filling hose to such tanks. The FAFNIR QSS/ASS solutionsconsist of a plug on the tank and a coupling on the road tanker. The release signal for the filling process is performed by an amplifier in the road tanker thatrecognizes the correct pairing and functioning of the couplingconnection. By the way, theoverfill prevention sensor forfilling stations is integrated into...

Open the catalog to page 7

The coupling type 903 ASS K consists of: Clamped connection in the amplifier Brass nickel-plated Connection cable 2 x 1 mm > 2 for GWG circuit Protection class of housing IP 68 Protective hose 7 x 0.25 mm > 2 for QSS coding and ASS Coupling with: GWG with contact sockets ֖ Reed sensors Push contactsThe wall plugs type 907 ASS K consist of: Dimensions: Coupling: Connection cable: ֘ 7 mm x 15 m standard > Operating data: Protective hose: 16 mm x 1,000 mm Ambient temperature: -25 ذC to +50 C Housing: И 60 mm x 137 mm Wall plugs bottom part Resistant to all products according to the GWG list of...

Open the catalog to page 8

Unleaded premium-grade petrol 1 Diesel fuel 2 Unleaded regular petrol 3 Unleaded extra premium-grade petrol 4 reserved 5 reserved 6Order number1121 > date of issue04/04 Subject to technical change

Open the catalog to page 9

Overfill prevention sensors must be checked on a regular basis. This is usually performed during a tankinspection. An optimal and safecheck of overfill prevention sensors according to TRbF 511 is guaranteed by the overfill prevention sensor testing device ME 5. > Overfill prevention sensor testing Type ME 5 Genuine function check Easy menu-driven operation > Handy design Overfill prevention sensor: GWGQuality assurance system or product recognition: QSS The connection of the overfill preventionsensor testing device to the GWG is realised via a coupling type 903 with helix cable. Suitable...

Open the catalog to page 11

Language German English 1 French 2 Spanish 3 Portuguese 4 Italian 5 Swedish 6 Greek 7Product detection QSS excl. incl. 1Order number1130 > Product Charging device for ME 5 Order number11303 11304 Plastic suitcase > date of issue04/04 Subject to technical change size="-2">
