Product catalog summary

Introduction
FAFNIR specializes in providing high-quality measurement solutions for level, pressure, and temperature across various industries such as petroleum, pharmaceutical, and chemical sectors. Their products are renowned for their reliability, accuracy, and ease of installation, featuring pre-calibrated and tested sensors for optimal performance.

Key Features

Plug & Play sensors for quick installation.
Pre-calibrated sensors that do not require adaptation to different liquids.
Solutions designed for extreme conditions, withstanding temperatures up to 450°C and pressures up to 120 bar.
High accuracy with a response time of less than 0.2 seconds.

Product Overview
TORRIX Magnetostrictive Level Sensor

Easy to install and use, suitable for complex applications.
Accurately measures both filling and interface levels.
Available in various versions with different lengths and materials.
Certified for use in hazardous areas (ATEX and IECEx).

Technical Specifications

Probe head made of stainless steel with IP68 protection.
Operating temperature range from -40°C to +450°C.
Pressure resistance up to 120 bar.
Available with different electrical connections and protocols (HART®, RS485).

Installation Kits

Options available for aggressive liquids and mobile containers.
Heavy-duty kits for applications with strong vibrations.

Conclusion
FAFNIR's sensors and systems provide reliable and precise solutions for various industrial applications, ensuring safety and efficiency in challenging environments.

Main Features and Benefits

Compact design suitable for small installation openings.
Robust, corrosion-resistant, and maintenance-free.

Applications

Diesel and heating oil tanks in trade and industry.
Domestic tanks.

DIVELIX Hydrostatic Level Sensor

Designed for continuous measurement of liquid levels in storage tanks, especially for oily liquids like brake fluid, glycerine, and glycol. Suitable for diesel, fuel oil, and oil tanks in trade, industry, and domestic settings.

Technical Specifications

Electrical connection: 2-wire, 9-32 VDC, 4-20 mA signal.
Temperature range: -25°C to +80°C, temperature compensated 0°C to +50°C.
Pressure: Overpressure max 1 bar, pressure range 0-400 mbar.

LS 300 and LS 500 Level Detection and Overfill Solution

Features a thermal level detector with ATEX approval, protecting valuable liquid assets. The LS 300 sensor is installed inside the tank, while the LS 500 transducer manages output relays. Suitable for polluting, corrosive, and expensive liquids.

Process temperature: -25°C to +50°C, high temperature up to +80°C.
Process pressure: 0 to 25 bar.
Protection class: IP40.

76 A and NB 220 Overfill Solution

Designed for overfill prevention of tanks with water-polluting liquids. Offers flexibility with acoustic or visual signals integrated into the transducer.

Process temperature: -25°C to +50°C, high temperature up to +80°C.
Protection class: IP67.

UM-X Standalone Measuring Transducer

Provides a standalone display for continuous level measurement with a menu-driven graphical user interface. Compatible with sensors using a 4-20 mA interface.

Auxiliary power: 230 VAC, 115 VAC, 24 VDC, or 24 VAC.
Protection class: IP64.

SAM 8 Collective Acknowledgement Unit

Connects up to 8 transducers, triggering alarms with two relay terminals.

Auxiliary power: 230 VAC.
Protection class: IP20.

Overview: The Acknowledgement Unit QE 200 enhances the functionality of LS 500 and NB 220 H measuring transducers by providing two auxiliary power supply loaded changeover contacts and an acknowledgement function. This allows for the integration of acoustic and visual alarm transmitters into the system.

Technical Specifications:

Auxiliary Power: 230 VAC; 24 VDC
Power Input: Maximum 2 VA, 2 W
Ambient Temperature: -25 °C to +60 °C
Protection Class: IP40
Dimensions: Height 110 mm x Width 50 mm x Depth 125 mm
Outputs: Switched auxiliary power supply; 1 acknowledgeable alarm, 1 non-acknowledgeable alarm; Load: together, max. 100 W
Inputs: Acknowledgement button (NO), control input (for connecting the LS 500 or the NB 220 H)

Wall Fitting 907 Z: In combination with the Wall Fitting 907 Z, the overfill prevention device (76 with NB 220) can be used as a limit sensor for filling from a tanker. The plug in the Wall Fitting serves as the counterpart for the 903 junction boxes commonly used in tankers. It connects to the relay output of the NB 220, allowing overfilling to be signaled back to the tank truck.

Sample Application: The system is suitable for delivering fresh oil (motor oil, transmission oil, etc.) by tank trucks with amplifiers.

Contact Information: FAFNIR GmbH, Schnackenburgallee 149 c, 22525 Hamburg, Phone: +49/40/39 82 07-0, Fax: +49/40/390 63 39, Email: [email protected], Website: www.fafnir.com

Catalog excerpts

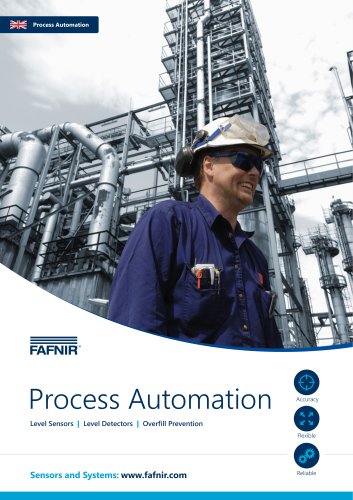

Process Automation Process Automation Level Sensors | Level Detectors | Overfill Prevention Sensors and Systems: www.fafnir.com

Open the catalog to page 1

Process Automation Edition 02.20 Technical changes reserved FAFNIR Sensors and Systems Reliable, Universal Solutions for Your Level, Pressure and Temperature Measurement Requirements FAFNIR prides itself on providing the highest-quality measurement solutions to all its customers, regardless of application complexity and size. After trading for more than 50 years, driving industry innovation, listening to our customers and their requirements, we are pleased to present FAFNIR’s German-made, high-precision level, pressure and temperature measurement devices for the petroleum, pharmaceutical and...

Open the catalog to page 2

0 Technical changes res< FAFNIR Difficult Installation Conditions Are & ^ M \ >1 + Designed to meet every requirement, our sensors fit the smallest to the largest openings + Our extensive range of sensors means we will have a sol you, even whetkPther.suppliers don't' Extreme Process Conditions : i I ssj^' > + Our sensors have proven to work in temperatures of up to 450 °C, or at pressures up to 120 bar. + With a response time of less than 0.2 s and information regarding the filling levels wit^ an accuracy Rf ±0.3 mm, you have constant visibility of your liquid stock Reliability assured in corrosive,...

Open the catalog to page 3

Process Automation Edition 02.20 Technical changes reserved

Open the catalog to page 4

Process Automation Edition 02.20 Technical changes reserved Contents Level Sensors TORRIX: Magnetostrictive Level Sensor DIVELIX: Hydrostatic Level Sensor Display HPH Ex d: High Pressure Connection Housing

Open the catalog to page 5

Process Automation Edition 02.20 Technical changes reserved TORRIX The Accurate Solution for your Application: Magnetostrictive Level Sensor The most adaptable level sensor in our range, TORRIX can be used across a multitude of sophisticated level measurement applications. Users benefit from quick and easy installation, proven reliability and simple troubleshooting. With its highly precise magnetostrictive measuring principle, TORRIX achieves outstanding accuracy of up to ±0.3 mm, among the very best in its class. Why Choose TORRIX? Quick and Precise Main Features and Benefits +E asy to install;...

Open the catalog to page 6

Process Automation Edition 02.20 Technical changes reserved TORRIX – Technical Data Protection class Cable terminal M16 x 1.5 cable gland for cable diameter 5 to 10 mm ½” NPT threads for conduit cabling; M12 connector Ambient temperature Level Sensors Probe head Probe tube Material Stainless steel 1.4571 (316Ti); Hastelloy® C4/C22; Titan Resolution (HART®) Electrical connection Installation length Probe length Filling level Output power: 4 … 20 mA / HART® Failure mode in accordance with NAMUR NE43 HART® functions Float position in mm, cm, m, inches or feet; positioning of second float; interface...

Open the catalog to page 7

Process Automation Edition 02.20 Technical changes reserved TORRIX RS485 – Technical Data Probe head Equipotential bonding Probe head Stainless steel Protection class Cable terminal Ambient temperature Probe tube Material Accuracy Filling level Probe length Electrical connection Probe tube Ø 12 Stainless steel Product float Interface float Guard ring Modbus (ASCII); FAFNIR Universal Device Protocol* Positioning of up to two floats Temperature (optional) Sensor status information, configuration Process conditions Temperature Up to 450 °C For probes with integrated temperature sensors: -40 °C …...

Open the catalog to page 8

Technical Data Process Automation Edition 02.20 Technical changes reserved TORRIX SC – Technical Data Level Sensors Probe head Equipotential bonding Probe head Stainless steel Protection class Cable terminal Ambient temperature Probe tube Material Filling level Level detectors Probe length Electrical connection Probe tube Ø 12 Stainless steel FAFNIR serial protocol (LOGI-X and VISY-X) Positioning of up to two floats Temperature (optional) Sensor status information, configuration Process conditions Product float Up to 450 °C For probes with integrated temperature sensors: -40 °C … +85 °C Interface...

Open the catalog to page 9

Process Automation Edition 02.20 Technical changes reserved Probe length Installation length Probe length TORRIX Flange ur standard sensor, with a O variable process fitting. The installation length can be adjusted directly on the tank during installation. The process connection is airtight welded to the sensor. This makes it especially suitable for applications in toxic liquids or at high pressures and temperatures. The probe head is bent by 90° which reduces the needed head space significantly. The best solution where head space is limited, i.e. for barrels stored under a table or in a safety...

Open the catalog to page 10

Process Automation Edition 02.20 Technical changes reserved TORRIX Bypass TORRIX 6 Our best solution for mounting on the outside of a magnetic level indicator. The TORRIX Bypass picks up the magnetic field of the floater. The ideal solution for retrofitting most brands of magnetic level indicators. Where space is limited, our compact version of the TORRIX is ideal for applications in small containers,such as in the lab or in pilot plants. If there is just a little space on the container cap, the TORRIX 6B is the ideal solution, because the probe head is not installed centrally. The flexible version...

Open the catalog to page 11

Process Automation Edition 02.20 Technical changes reserved TORRIX Installation Kit Function The installation kit consists of a jacketed pipe with process fitting and float. The installation kit is installed in the tank, and the TORRIX measuring sensor is then inserted into the jacketed pipe. TORRIX picks up the magnetic field of the float on the installation kit and can thereby determine the product filling level. The sensor does not come in contact with the medium. 40 Aggressive liquids The plastic installation kit (PP, PVDF, PVC) is the best solution for use in aggressive liquids, because...

Open the catalog to page 12

Technical Data Process Automation Edition 02.20 Technical changes reserved Installation length Jacket tube Length Process connection Welded flange or thread Process conditions Guard ring dismountable Grub screw M6 DIN 914 V4A (2x) TORRIX Mobile – Technical Data A vibration-resistant version for use in tank trucks, mobile tanks, tank wagons and other applications in which containers are subject to strong vibration. Ø 47.2 Equipotential bonding Flange or fitting on order Probe head Protection class Cable terminal Ambient temperature Installation length Material Probe tube Ø12 Accuracy Filling level...
