HP series single-stage coalescer housing
4Pages

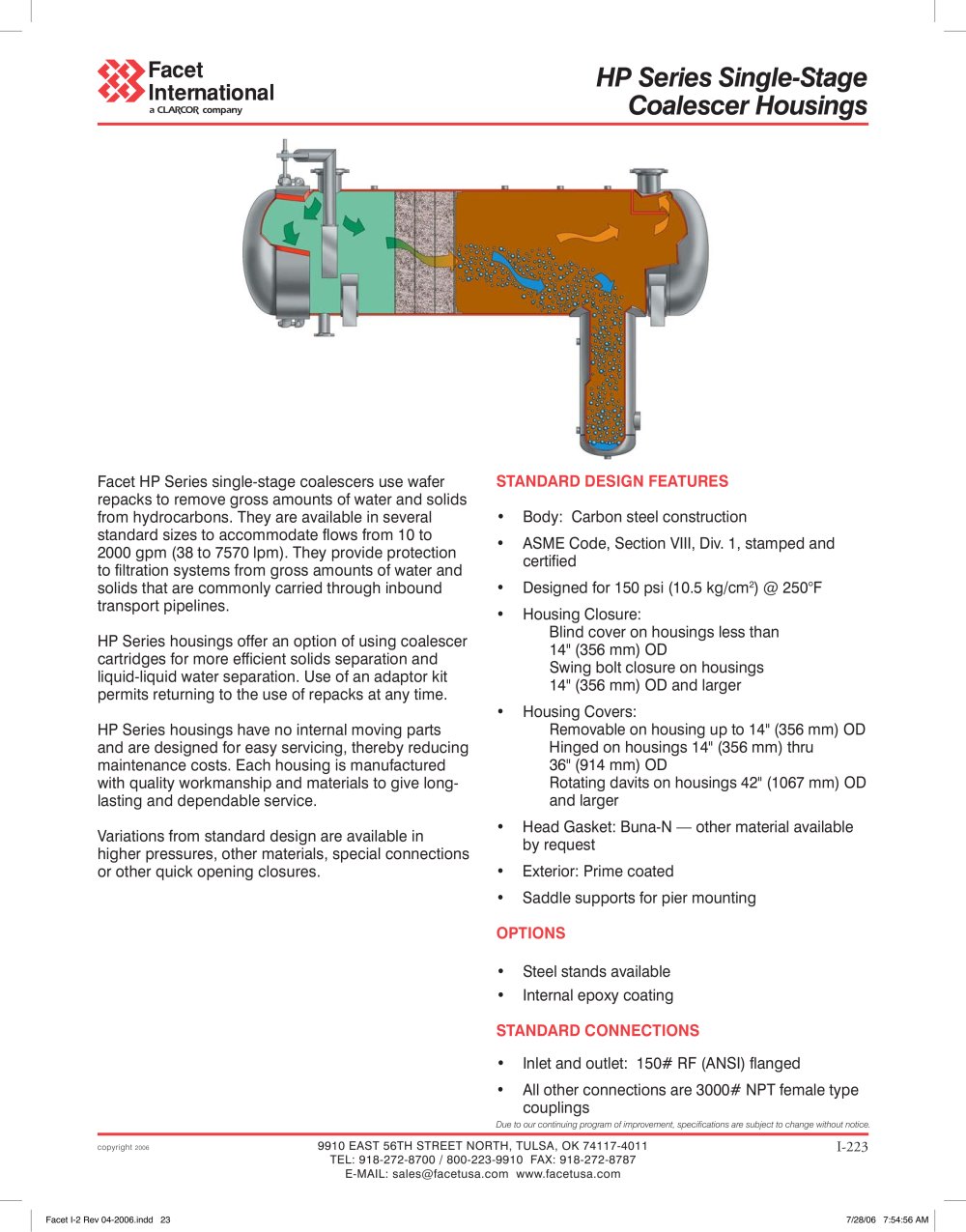

Due to our continuing program of improvement, specifications are subject to change without notice. copyright 2006 9910 EAST 56TH STREET NORTH, TULSA, OK 74117-4011 TEL: 918-272-8700 / 800-223-9910 FAX: 918-272-8787 E-MAIL: sales@facetusa.com www.facetusa.com HP Series Single-Stage Coalescer Housings Facet HP Series single-stage coalescers use wafer repacks to remove gross amounts of water and solids from hydrocarbons. They are available in several standard sizes to accommodate flows from 10 to 2000 gpm (38 to 7570 lpm). They provide protection to filtration systems from gross amounts of water and solids that are commonly carried through inbound transport pipelines. HP Series housings offer an option of using coalescer cartridges for more efficient solids separation and liquid-liquid water separation. Use of an adaptor kit permits returning to the use of repacks at any time. HP Series housings have no internal moving parts and are designed for easy servicing, thereby reducing maintenance costs. Each housing is manufactured with quality workmanship and materials to give longlasting and dependable service. Variations from standard design are available in higher pressures, other materials, special connections or other quick opening closures. STANDARD DESIGN FEATURES • Body: Carbon steel construction • ASME Code, Section VIII, Div. 1, stamped and certified • Designed for 150 psi (10.5 kg/cm2) @ 250°F • Housing Closure: Blind cover on housings less than 14" (356 mm) OD Swing bolt closure on housings 14" (356 mm) OD and larger • Housing Covers: Removable on housing up to 14" (356 mm) OD Hinged on housings 14" (356 mm) thru 36" (914 mm) OD Rotating davits on housings 42" (1067 mm) OD and larger • Head Gasket: Buna-N — other material available by request • Exterior: Prime coated • Saddle supports for pier mounting OPTIONS • Steel stands available • Internal epoxy coating STANDARD CONNECTIONS • Inlet and outlet: 150# RF (ANSI) flanged • All other connections are 3000# NPT female type couplings I-223 Facet I-2 Rev 04-2006.indd 23 7/28/06 7:54:56 AM

Due to our continuing program of improvement, specifications are subject to change without notice. copyright 2006 9910 EAST 56TH STREET NORTH, TULSA, OK 74117-4011 TEL: 918-272-8700 / 800-223-9910 FAX: 918-272-8787 E-MAIL: sales@facetusa.com www.facetusa.com HP Series Single-Stage Coalescer Housings PERFORMANCE GUIDELINES MODERATELY EFFICIENT REMOVAL OF GROSS SOLIDS AND WATER FROM WHEN USED WITH THIS LIQUID TO REMOVE THESE CONTAMINANTS HEAVY AND LIGHT LIQUIDS BUTANE / PROPANE SOLIDS ENTRAINED WATER WATER HAZE RG4 RG6-7 R6 AVIATION GASOLINE SOLIDS ENTRAINED WATER WATER HAZE RG4 RG7 R7 MOTOR...
