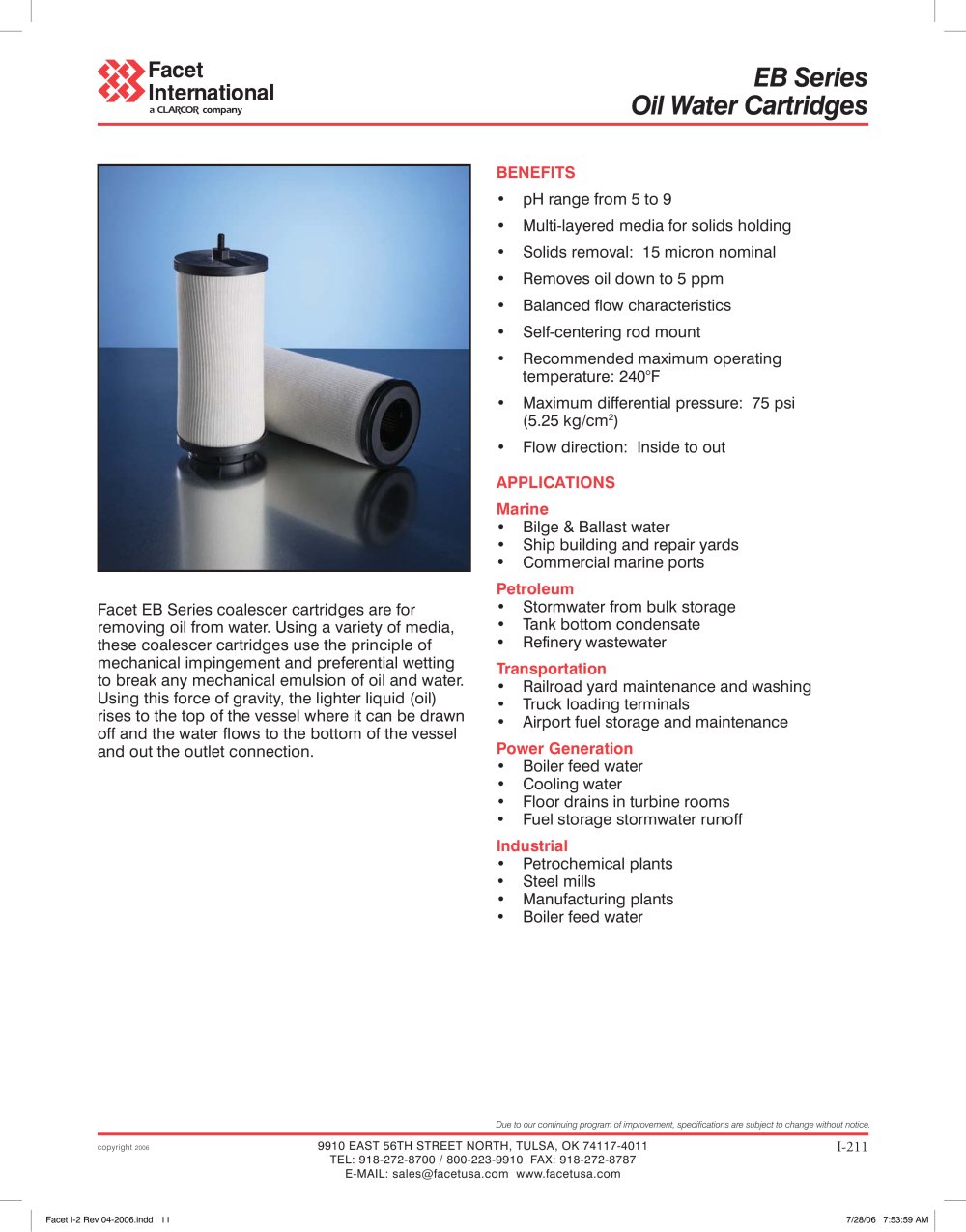

EB series oil/water cartridges
1 / 2 PagesView full catalog
EB series oil/water cartridges
Product catalog summary
Overview: The Facet EB Series coalescer cartridges are designed for the removal of oil from water using mechanical impingement and preferential wetting. The process allows the lighter oil to rise and be separated from water.
Specifications:
- pH range: 5 to 9
- Solids removal: 15 micron nominal
- Oil removal: down to 5 ppm
- Maximum operating temperature: 240°F
- Maximum differential pressure: 75 psi (5.25 kg/cm²)
- Flow direction: Inside to out
Benefits:
- Multi-layered media for solids holding
- Balanced flow characteristics
- Self-centering rod mount
Applications:
- Marine: Bilge & Ballast water, shipbuilding, commercial ports
- Petroleum: Stormwater, tank bottom condensate, refinery wastewater
- Transportation: Railroad yards, truck loading terminals, airport fuel storage
- Power Generation: Boiler feed water, cooling water, turbine room drains
- Industrial: Petrochemical plants, steel mills, manufacturing plants
Model Specifications:
| Model Number | Length (in/mm) | Flow Rate (gpm/lpm) | Micron Rating | Comments |
|---|---|---|---|---|
| EB-11 | 14/360 | 10/38 | 50 | |
| EB-11CG | 11/280 | 10/38 | 50 | Used by U.S.C.G. |
| EB-11CG-2 | 22/554 | 20/76 | 50 | Used by U.S.C.G. |
| EB-12 | 14/360 | 10/38 | 1 | |
| EB-12-1 | 14/360 | 10/38 | 5 | |
| EB-12CG1 | 11/280 | 10/38 | 5 | Used by U.S.C.G. |
| EB-12CG-2 | 22/554 | 20/76 | 5 | Used by U.S.C.G. |
Additional Notes: Screwbase available upon request.
See more
Catalog excerpts
MODEL NUMBERDIMENSIONSLENGTHFLOW RATEMICRONRATINGCOMMENTS in.mm.in.mm.gpmlpmEB-11615214 > 1 > 2 360103850EB-11CG615211 > 1 ܼ > 4 280103850 > Used by U.S.C.G. EB-11CG-2615222 > 1 > 2 554207650 > Used by U.S.C.G. EB-12615214 > 1 ܼ > 2 36010381EB-12-1615214 > 1 > 2 36010385EB-12CG1615211 > 1 ܼ > 4 28010385 > Used by U.S.C.G. EB-12CG-2615222 > 1 > 2 55420765 > Used by U.S.C.G. Note: Screwbase available upon request. Due to our continuing program of improvement, specifications are subject to change without notice. copyright 2006 9910 EAST 56TH STREET NORTH, TULSA, OK 74117-4011TEL: 918-272-8700 /...
