Introduction
Facet International is a leader in filtration and separation technology within the marine and petrochemical industries. Since 1978, they have been at the forefront of oil-water separation technology, particularly for bilge water, adhering to IMO and Coast Guard standards.

Specifications

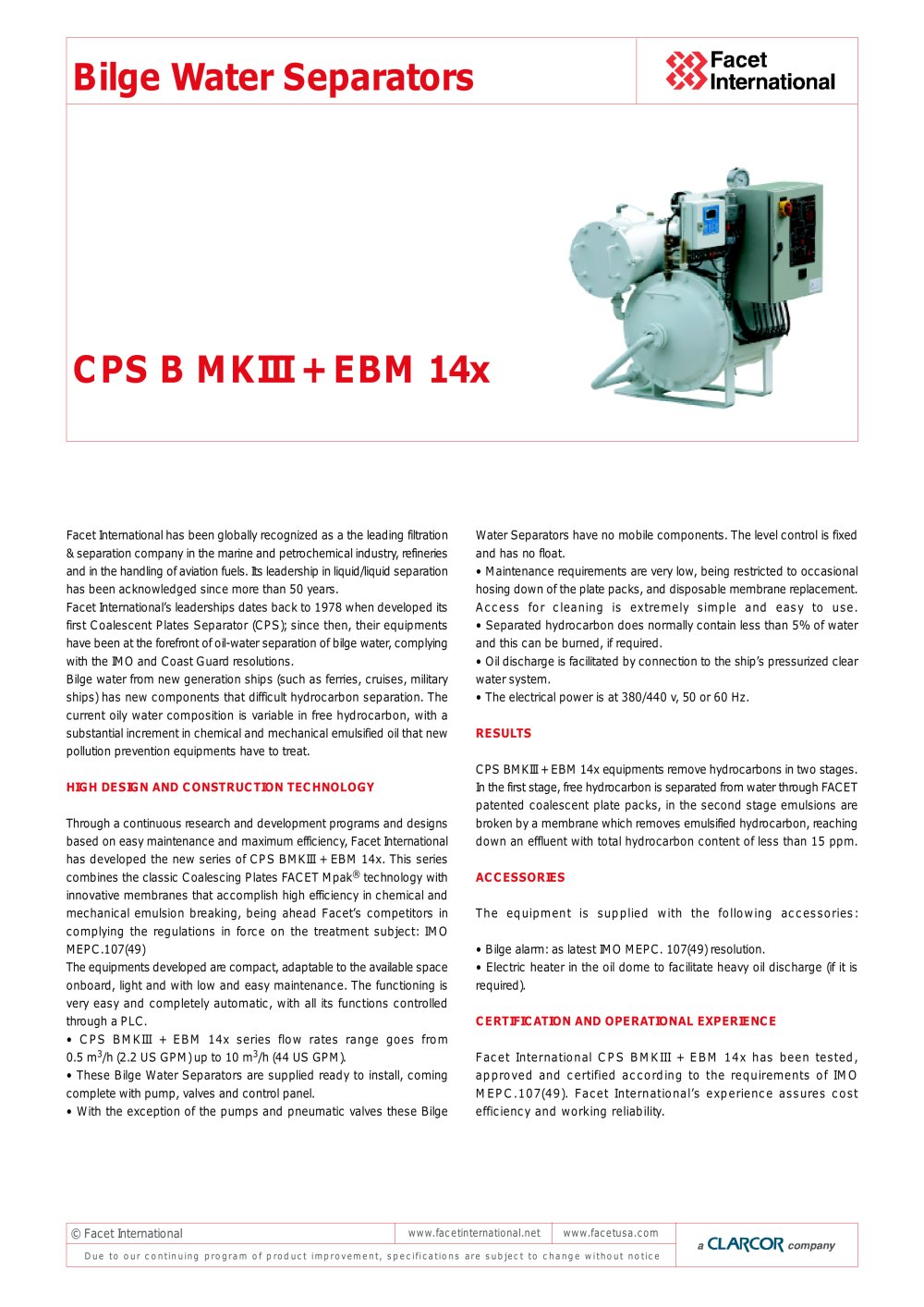

The CPS BMKIII + EBM 14x series is designed for high efficiency in separating hydrocarbons from bilge water. It features:

• Flow rates from 0.5 m3/h to 10 m3/h.
• Compact, lightweight design with low maintenance requirements.
• Automatic operation controlled by a PLC.
• Electrical power requirements of 380/440 V, 50 or 60 Hz.

Design and Technology
The series combines FACET Mpak® coalescing plates with innovative membranes to break chemical and mechanical emulsions, ensuring compliance with IMO MEPC.107(49) regulations.

Operation and Maintenance
The equipment is easy to maintain, requiring only occasional cleaning of plate packs and membrane replacement. It operates automatically with no moving parts except for pumps and valves.

Performance
The system removes hydrocarbons in two stages, achieving an effluent with less than 15 ppm of total hydrocarbons.

Accessories
Included accessories are a bilge alarm and an optional electric heater for heavy oil discharge.

Certification
The CPS BMKIII + EBM 14x is certified according to IMO MEPC.107(49) standards, ensuring cost efficiency and reliability.

Flow Diagram
The flow diagram outlines the process from oily water inlet to overboard water outlet, including key components like the control panel, pump, and separator module.
