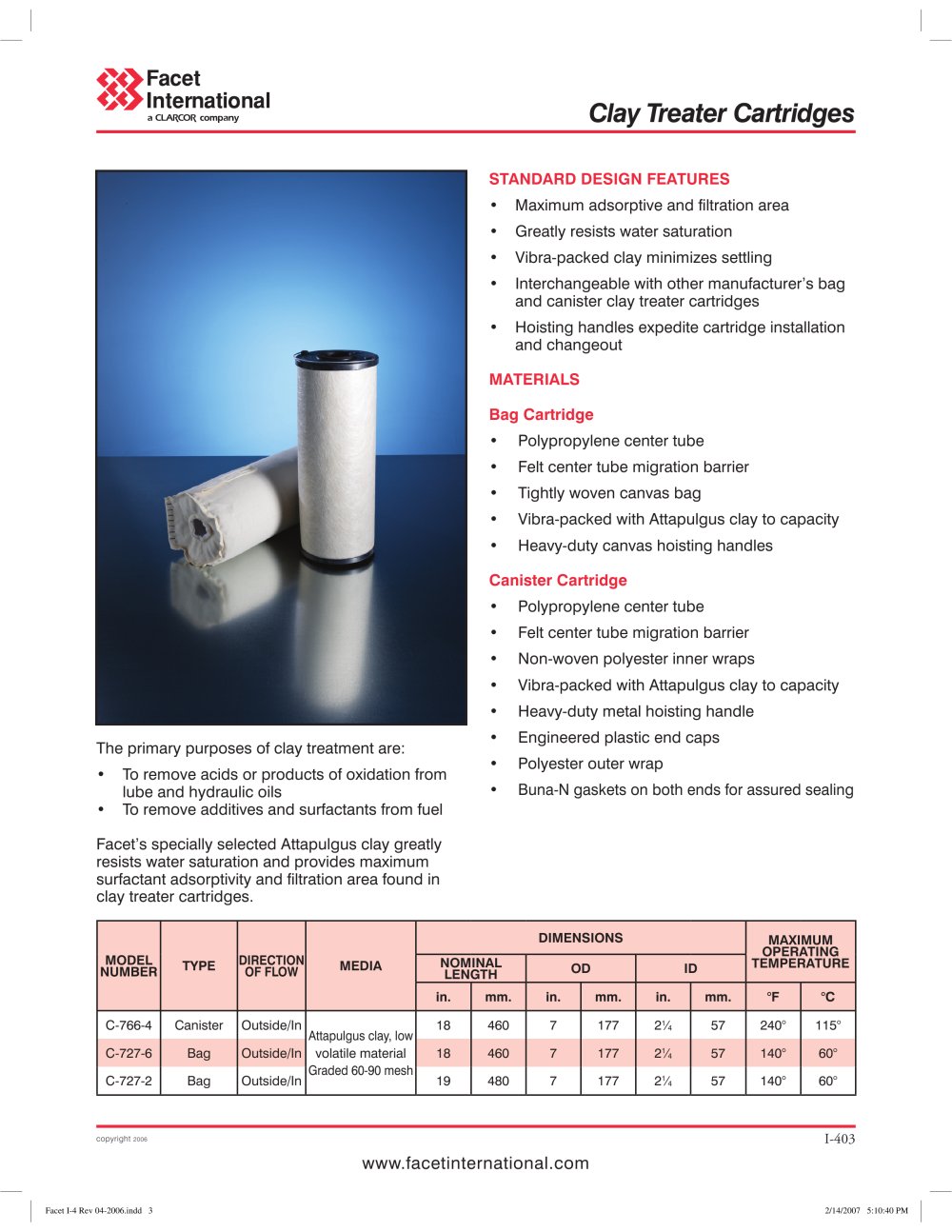

copyright 2006 www.facetinternational.com The primary purposes of clay treatment are: • To remove acids or products of oxidation from lube and hydraulic oils • To remove additives and surfactants from fuel Facet’s specially selected Attapulgus clay greatly resists water saturation and provides maximum surfactant adsorptivity and filtration area found in clay treater cartridges. STANDARD DESIGN FEATURES • Maximum adsorptive and filtration area • Greatly resists water saturation • Vibra-packed clay minimizes settling • Interchangeable with other manufacturer’s bag and canister clay treater cartridges • Hoisting handles expedite cartridge installation and changeout MATERIALS Bag Cartridge • Polypropylene center tube • Felt center tube migration barrier • Tightly woven canvas bag • Vibra-packed with Attapulgus clay to capacity • Heavy-duty canvas hoisting handles Canister Cartridge • Polypropylene center tube • Felt center tube migration barrier • Non-woven polyester inner wraps • Vibra-packed with Attapulgus clay to capacity • Heavy-duty metal hoisting handle • Engineered plastic end caps • Polyester outer wrap • Buna-N gaskets on both ends for assured sealing Clay Treater Cartridges MODEL NUMBER TYPE DIRECTION OF FLOW MEDIA DIMENSIONS MAXIMUM OPERATING NOMINAL TEMPERATURE LENGTH OD ID in. mm. in. mm. in. mm. °F °C C-766-4 Canister Outside/In Attapulgus clay, low volatile material Graded 60-90 mesh 18 460 7 177 21..4 57 240° 115° C-727-6 Bag Outside/In 18 460 7 177 21..4 57 140° 60° C-727-2 Bag Outside/In 19 480 7 177 21..4 57 140° 60° I-403 Facet I-4 Rev 04-2006.indd 3 2/14/2007 5:10:40 PM
Open the catalog to page 1copyright 2006 www.facetinternational.com Clay Treater Cartridges APPLICATION Facet’s clay treater cartridges may be used to remove soluble contaminants such as acids, waxes, gums, resins, asphaltanes, sludges, carbon residues and colloidal particles from lubricating, hydraulic, seal, quench, and insulating oils (in circuit breaker, transformers). They may also be used for surfactant removal from jet fuel, gasoline, kerosene and diesel. They are often used to remove color from fuel to help bring back its normal appearance. LIQUID RECOMMENDED MINIMUM OPERATING TEMPERATURE MAXIMUM FLOW RATE...
Open the catalog to page 2copyright 2006 www.facetinternational.com Clay Treater Cartridge Mounting Arrangements I-405 Facet I-4 Rev 04-2006.indd 5 2/14/2007 5:10:46 PM
